HZ-350
ORDER CODE: ANTHZ350E
Condividimi

Immagine Principale
  • ANTHZ350E
  • ANTHZ350E
  • ANTHZ350E
  • ANTHZ350E
  • ANTHZ350E

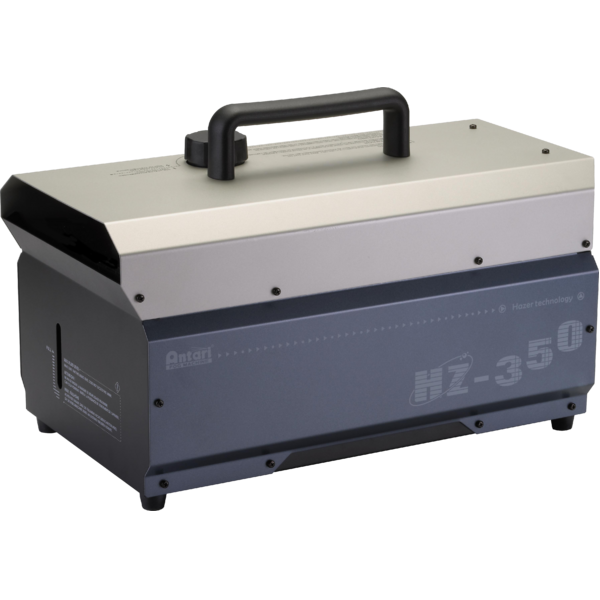

  • HZ-350 is a professional hazer machine which bases its operation on an air-compressor to generate dry, continuous and cold (no-need pre-heating) fogging; allowing a longer hanging time through the oil liquid and improving visibility (incredibly tiny particulates). HZ-350 is definitely the best choice for those stage and light designers, the performance of haze-machines bring the best atmospheric effects to all events exalting lasers, beam and lighting special effects. The electronics allow 3 possible controls mode: DMX, manual/timer through LCD display and wireless. The extraordinary low haze liquid consumption rate (21h/1L) and low power consumption makes HZ-350 more energy-efficient and more environmental-friendly comparing the traditional fogger.



    Features:
    Technical specifications
    Power: 230V
    Output: 2000 cu.ft/min
    Immediate fogging, no-need preheating
    Tank capacity: 2,5 litres
    Fluid consumption rate: 21 hr/litre (continuous)
    Noise level: 43dB @5m
    Air pressure: 30 Psi
    Control: DMX, on-board control panel, timer mode, volume mode
    Remote included: W-1 wireless transmitter
    Optional remotes: HC-1 timer remote, Z-10 remote
    Weight: 14,2 kg
    Dimensions (WxHxD): 273x314,5x491,8 mm
    Liquid used: Antari HZL-1 haze liquid

    CODICE PRODOTTO
    Codice Accessorio
    Descrizione
    optional
    Liquido per HAZE machine, oil-based, tanica 1L
    optional
    Liquido per HAZE machine, oil-based, tanica 5L
    include
    Telecomando wireless, dist.50m, freq.315/433MHz, Wireless ON/OFF
    optional
    Telecomando, cavo 7,6m, 1/4 jack stereo, Timer, manual ON/OFF
    optional
    Telecomando, cavo 7,6m, 1/4 jack stereo, ON/OFF

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manual Anthz350e_USER_MANUAL_EN.pdf 1MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
