M-1
ORDER CODE: ANTM1E
Condividimi

Immagine Principale
  • ANTM1E
  • ANTM1E
  • ANTM1E
  • ANTM1E
  • ANTM1E
  • ANTM1E

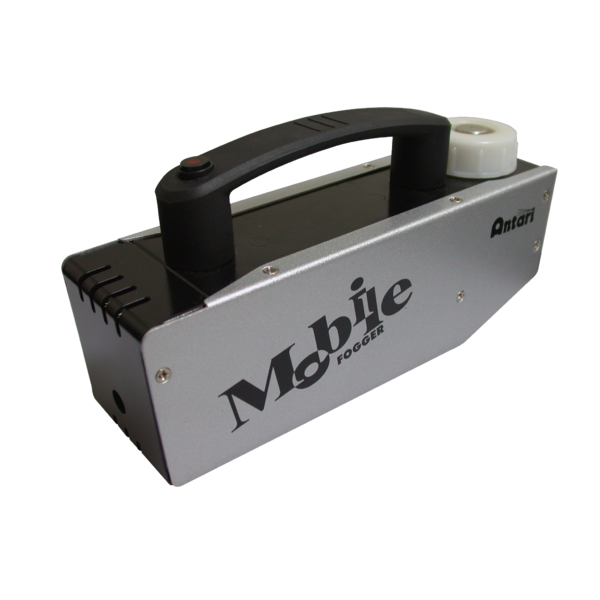

  • The M-1 Mobile Fog Machine is developed especially for photographers to use on location and has found work in theatrical and cinematic applications. This Mobile fogger is perfect for situations where a touch of fog is required in remote or unexpected places. Because of its dimensions and weight (about 2 kg), this mobile fogger can be discretely placed on props, inside sets, or held on hand. As implied by its name, the mobile fogger’s main characteristic is its mobility. The unit operates on a compact 12V DC rechargeable battery and is very easy to carry and operate without any warming-up time. Or else, the M-1 can also operate with corded dummy battery. To increase the machine’s versatility, timer and wireless remotes are available as optional.



    Features:
    Battery: DC 12V/2,3Ah
    Power consumption: 65W
    Output: 300 cu.ft/min
    Tank capacity: 110 c.c.
    Fluid Consumption Rate: 2 c.c./min
    Optional remotes: MCT-1 timer remote, MCR-1 wireless remote
    Optional accessories: DCP-12 power adaptor/dummy battery
    Weight whole M-1 Kit: 6 kg
    Weight M-1 with battery: 1,8 kg
    Dimensions (WxHxD): 66x81x227 mm
    Liquid used: Antari FLM-05/M-1 fog liquid

    CODICE PRODOTTO
    Codice Accessorio
    Descrizione
    optional
    Liquido per M-1 fogger, tanica 0,5L
    optional
    Liquido per MB-1 fogger, tanica 0,5L
    optional
    Telecomando wireless, dist.50m, 4 Pin S Terminal, Wireless ON/OFF
    optional
    Telecomando, cavo 7,6m, 4 Pin S Terminal, Timer, manual ON/OFF
    optional
    Adattatore DC-12V W/DUMMY BATTERY per ANTM1 & EU PLUG
    optional
    Caricatore per batteria ANTM1 W/LED EU PLUG ADAPTOR

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manual Antm1e_USER_MANUAL_EN.pdf 1MB
