S-500
ORDER CODE: ANTS500E
Condividimi

Immagine Principale
  • ANTS500E

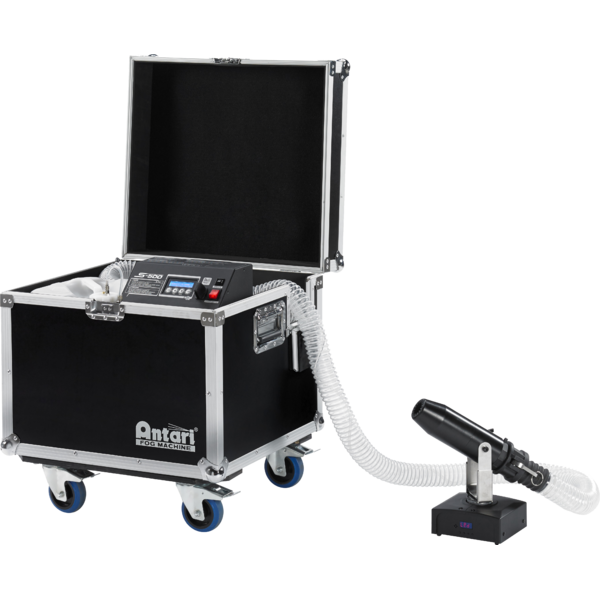

  • Meet Antari's latest snow machine: The S-500. Its main body and 20-Liter fluid tank are placed inside a road case with wheels. The nozzle is connected by a 10-meter long hose and it can be easily rigged on a standard truss. Users can adjust the wind volume and flow rate to get the right snow effects needed, from fine snow to Blizzard.

    Features:
    Power: 230V
    Breaker: AC-230V, 5A/250V
    Power consumption: 890W
    Max operating time: 0,8 hrs at 100% output
    Tank Capacity: 20 litres
    Fluid Consumption Rate: 400 ml/min
    Control: DMX, W-DMX (optional), onboard control panel, wire remote, W-2 wireless remote (optional receiver kit)
    DMX mode: 2 channels (snow volume, fan speed)
    Optional remotes: W-2 Wireless Remote, SC-3 Wire Remote
    Optional accessories: PM-1 pan motor
    ST-10 Air hose extension included
    Weight: 37,2 kg
    Dimensions (WxHxD): 551x651x592 mm
    Liquid used: Antari SL or SL-A snow fluids

    CODICE PRODOTTO
    Codice Accessorio
    Descrizione
    optional
    Liquido per macchine effetto neve, tanica 5L
    optional
    Liquido neve di alta qualità, tanica da 5L
    optional
    ANTARI W-2 Wireless Radio Transmitter
    optional
    Fluido da neve UV, tanica 5L
    optional
    Agente fluorescente UV Antari Blue, bottiglia da 100 ml

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manual Ants500e_USER_MANUAL_EN.pdf 1MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
