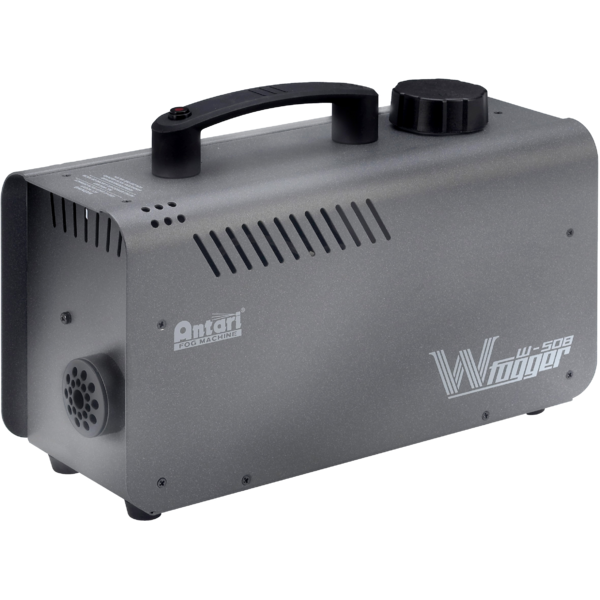

W-508
ORDER CODE: ANTW508E
Share me

Immagine Principale
  • ANTW508E
  • The cutting-edge wireless control system gives Antari W series a simple setting and operation interface. Additionally, the state-of-the-art heater design upgrades the W Series fog machines to a higher level in terms of good quality fog and energy efficiency. Antari W Series bring users to a professional scene in an easier method.

    Each machine comes with a set of wireless receiver and transmitter as the standard controller.
    Working distance of wireless control: 50 meters in open area

    Opto-electronic Fluid Sensor. When the fluid recipient runs dry, the fluid sensor stops pumping automatically to protect the pump from burning. New Advanced PCB Design. The new system can control temperature precisely and rule out the influence from outside environments as much as possible to make W series fog machines be able to work stably between – 20 and + 60 degree Celsius.



    Features:
    Power: 230V
    Heater: 800W
    Output: 3000 cu.ft/min
    First heat-up time: 100 seconds
    Tank capacity: 0,8 liters
    Fluid consumption rate: 60 min/0,8liter (100% Output)
    Remote included: W-1 wireless remote
    Weight: 3,8 kg
    Dimensions (WxHxD): 128x166x315 mm
    Liquid used: Antari FLR/FLG liquid

    ITEMS REF.
    Accessory Code
    Description
    ANTW508E (optional)
    ANTW530DE (optional)
    ANTDNG100E (optional)
    ANTICE101E (optional)
    ANTIP1000E (optional)
    ANTWIFI800E (optional)
    ANTW510E (optional)
    ANTW515DE (optional)
    H100F (optional)
    H080F (optional)
    GH080F (optional)
    H300F (optional)
    Low-Density FOG/FAZE machine fluid, water-based, 5L tank
    ANTW508E (optional)
    ANTZ350E (optional)
    ANTZ380E (optional)
    ANTF4 (optional)
    ANTF1E (optional)
    ANTF5DE (optional)
    ANTF7E (optional)
    ANTW530DE (optional)
    ANTIP1000E (optional)
    ANTWIFI800E (optional)
    ANTW515DE (optional)
    ANTW510E (optional)
    H080F (optional)
    H100F (optional)
    GH080F (optional)
    H300F (optional)
    High-Density FOG/FAZE machine fluid, water-based, 5L tank
    ANTW508E (include)
    ANTAF3E (optional)
    ANTIP1000E (optional)
    ANTAF5RE (optional)
    ANTSW250E (include)
    ANTF1E (optional)
    ANTM4E (optional)
    ANTHZ350E (include)
    ANTW510E (include)
    ANTW530DE (include)
    ANTFT100E (include)
    ANTW515DE (include)
    wireless remote control, dist.50m, freq.315/433MHz, wireless ON/OFF

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Antw508e_USER_MANUAL.pdfDownload
