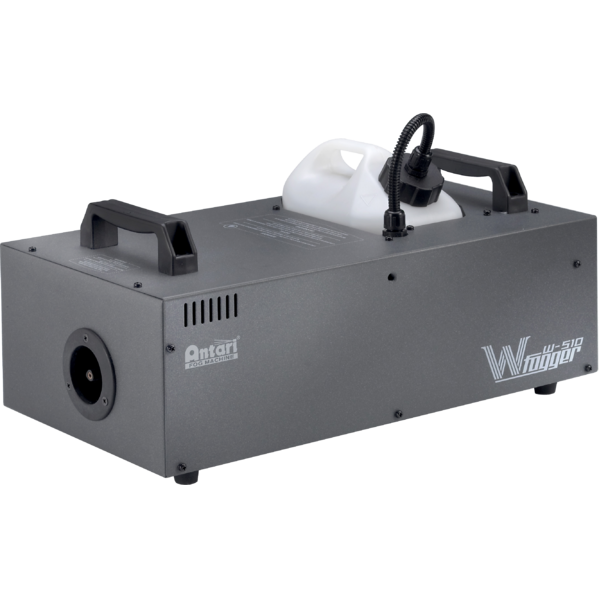

W-510
ORDER CODE: ANTW510E
Condividimi

Immagine Principale
  • ANTW510E
  • The cutting-edge wireless control system gives Antari W series a simple setting and operation interface. Additionally, the state-of-the-art heater design upgrades the W Series fog machines to a higher level in terms of good quality fog and energy efficiency. Antari W Series bring users to a professional scene in an easier method.

    Intelligent Wireless Control System. Each machine comes with a set of wireless receiver and transmitter as a standard controller. The working distance of wireless control: 50 meters in open area Opto-electronic Fluid Sensor. When the fluid recipient runs dry, the fluid sensor stops pumping automatically to protect the pump from burning.
    The new system can control temperature precisely and rule out the influence from outside environments as much as possible to make W series fog machines be able to work stably between –20 and +60 degree Celsius.

    Features:
    Power: 230V
    Heater: 1000W
    Output: 15000 cu.ft/min
    First heat-up time: 13,5 min
    Tank capacity: 2,8 liters
    Fluid consumption rate: 11 min/liter (100% Output)
    Control: DMX (OFF - ON)
    Remote included: W-1 wireless remote
    Optional accessories: W-510-HB hanging bracket
    Weight: 11,4 kg
    Dimensions (WxHxD): 250x148x468 mm
    Liquid used: Antari FLR/FLG liquid

    CODICE PRODOTTO
    Codice Accessorio
    Descrizione
    optional
    Liquido per FOG/FAZE machine, water-based, bassa densità, tanica 5L
    optional
    Liquido per FOG/FAZE machine, water-based, alta densità, tanica 5L
    include
    Telecomando wireless, dist.50m, freq.315/433MHz, Wireless ON/OFF

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manual Antw510e_USER_MANUAL_EN.pdf 3MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
