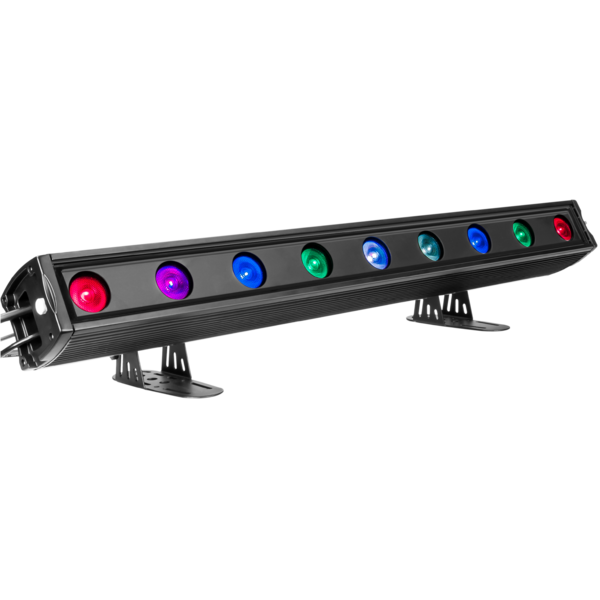

    ARCLED3109PIX is a pixel stage-bar conceived to be employed as a powerful and versatile projector in creation of visual pixel-mapping effects and as an amazing washlight featuring 4D color mixing system (RGBW/FC).
    Combination of CREE 9x10W RGBW/FC LED source with advanced and innovative design of optics allow to reach new standards of performance.
    Key-features of ARCLED3109PIX include advanced chromatic capabilities as saturated and brilliant eye-candy colors, ensuring an improved intelligibility of different white temperatures (DMX control over CTC and software calibration of white).
    The chassis is built in die-case aluminum and tempered glass, allowing natural heat dissipation and extending usage to IP65 outdoor events or permanent installations.
    ARCLED3109PIX is a project developed to meet requirements of professionals of Rental, offering maximum flexibility of control (11 DMX configurations, 3ch to 36ch modes), custom software settings (dimmer curves, color calibration, white preset, custom shows), robust structure, speed and simplified wiring/installation (Powercon+XLR In/Out).

    Light source and optics
    • 9x10W RGBW/FC CREE LEDs
    • Lumen: 2000
    • Lux: 6609 lx @ 2 m
    • Peak intensity: 26440cd
    • Energy-saving LEDs featuring more vivid colours and lower power consumption compared to traditional lamps
    • Colour synthesis: 4-in-1 RGBW color mixing for advanced control over color tones, saturation and color temperature
    • White temperature presets: 3200K~10000K
    • Projection angle: 12°
    • Latest-generation optics featuring lenses with high luminous efficiency (>85%)
    • LEDs average life span: >50'000 h

    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6, 11, 16, 27, 36 channels) for advanced or basic controlling
    3 channels: RGB
    3 channels: HSV
    4 channels: RGB, dimmer
    4 channels: RGBW
    5 channels: RGBW, dimmer
    6 channels: RGBW, dimmer, strobe
    11 channels: dimmer, Red, Green, Blue, White, Macro, strobe, auto, autospeed, dimmer curve, pix select
    16 channels: dimmer, dim fine, Red, Rfine, Green, Gfine, Blue, Bfine, White, Wfine, macro, strobe, auto, auto speed, dimmer curve, pix select
    27 channels: RGB (x9 pixel)
    36 channels: RGBW (x9 pixel)
    • "Pixel control mode" for independent control over single LEDs
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows
    • 5 different dimming curves available
    • Master/Slave mode for stand-alone operations of more units
    • Linear and “stepless” transition between DMX values
    • Flicker free operations (400Hz)
    • Silent operations, due to natural cooling of the peculiar chassis and to absence of fans

    Structure and Power supply
    • Sturdy die-cast aluminum body conceived for long-time durability and demanding applications
    • Tempered glass front panel
    • Internal Protection: IP65 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperature: -20/+45 °C
    • Power output to link more units in a chain: up to 12 fixtures at 230V
    • Max power consumption: 125W
    • Weight: 10 kg
    • Dimensions (WxHxD): 1000x250x250 mm
