    Code Optics Avail.
    ARCLED7348RGBW15
    15
    ARCLED7348RGBW25
    25
    ARCLED7348RGBW45
    45
    ARCLED7348RGBW60
    60

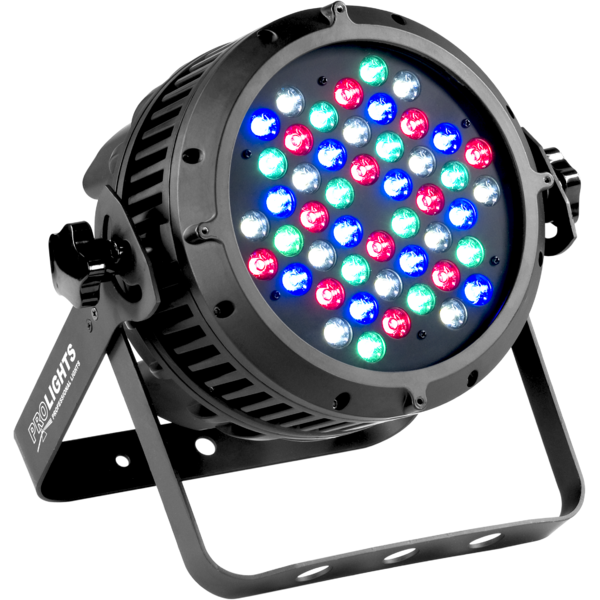

    Professional RGBW washlight projector, based on LED technology, for indoor/outdoor applications.
    Light source and optics
    • 48 x 3W high-efficiency LEDs: (12 red, 12 green, 12 blue, 12 white)
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGBW Colour mixing (>16million colours) for a limitless colour range, white control for more precise colour temperature adjustment
    • Optics: high definition anti-reflection lenses
    • Projection angle: 15° (25°, 45°, 60° available on demand)
    • Colour temperature preset (3200K ~ 10000K)
    • LEDs average life span: > 75'000 hours
    Electronics and features
    • Several DMX selectable configurations (3, 4, 5, 6 and 10 channels) for professional or simplified controlling 3 channels: RGB3 channels: HSV (Hue, Saturation, Value) 4 channels: RGBW4 channels: RGB, dimmer5 channels: RGBW, dimmer5 channels: RGB, dimmer, strobe 6 channels: RGBW, dimmer, strobe 10 channels: RGBW, dimmer, strobe, macro, auto, custom settings, ID addressing
    • Manual control of values and programs through the LED display menu
    • Automatic mode with built-in programs
    • Master/Slave mode for stand alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker free operations
    • Aluminium panel included to protect electronics and display against water infiltrations and outdoor applications
    • Silent operations and virtually no maintenance due to natural convection cooling system (no fans)
    Structure and power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • IP67 protection rate and connections (standard SHUKO and XLR 3p adapters included)
    • Double hanging bracket suitable for safe hanging and as a floor stand
    • Adjustable barn doors to direct light output (ARCLED7348BD not included)
    • Power unit: 100-240V 50/60Hz
    • Power output signal: up to 15 units at 230V
    • Consumption: 160W
    • Weight: 9Kgs
    • Dimensions (WxHxD): 289x237x306 mm
    Product Code
    Accessory Code
    Description
    ARCLED7348RGBW (include)
    ARCLEDL15ARCLEDL15
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 15°, (48pcs)
    ARCLED7348RGBW (optional)
    ARCLEDL25ARCLEDL25
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 25°, (48pcs)
    ARCLED7348RGBW (optional)
    ARCLEDL45ARCLEDL45
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 45°, (48 pcs)
    ARCLED7348RGBW (optional)
    ARCLEDL60ARCLEDL60
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 60°, (48 pcs)
    ARCLED7348RGBW (optional)
    ARCLEDEXAC1ARCLEDEXAC1
    FINESTOCK
    Extension IP68 power cable, IPpowercon-f->IPpowercon-m
    ARCLED7348RGBW (optional)
    ARCLEDEXDC1ARCLEDEXDC1
    FINESTOCK
    Extension IP68 data cable, IPdatacon-f->IPdatacon-m
    ARCLED7348RGBW (optional)
    ARCLED7348BDARCLED7348BD
    FINESTOCK
    Barndoor with 4 adjustable flaps for ARCLED7348RGB-AW
