    Code Power Connections Signal Connections IP rate Avail.
    ARCLED7507Q2ZIP
    IP cable IP cable IP67
    ARCLED7507Q2ZTZ
    Powercon DMX in/out IP54
    ARCLED7507Q2ZSC
    Seetronic Seetronic IP54

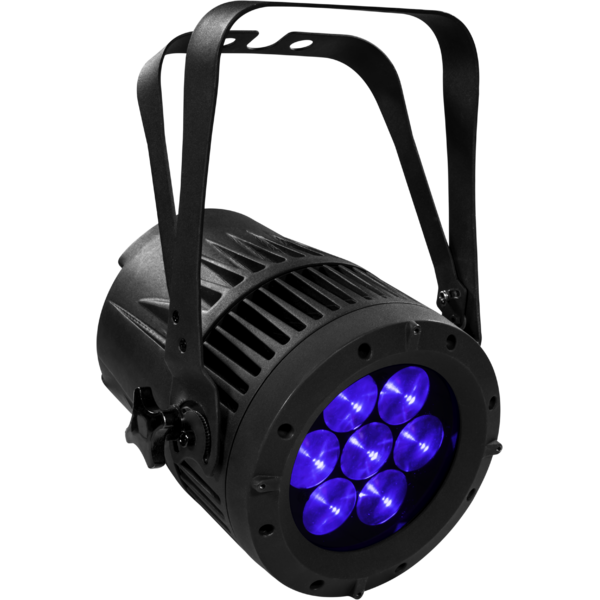

    ARCLED7507Q2Z is a new generation PARLED zoom. Specifically designed for rental company use; a multi-purpose concept suitable for both indoor and outdoor use on stage and architectural lighting in both medium and large venues. ARCLED7507Q2Z offers unprecedented performance, employing LED 7x15W RGBW full colour and a high efficiency 8° - 40° optical zoom system for applications such as wash, beam or both in the same stage-plot. The colour calibration system, 2.800 K - 10.000 K built-in white preset, 5 selectable dimmer curves and the total absence of fans make ARCLED7507Q2Z suitable for any lighting design with demanding requirements.

    Features:
    7x15 W LED RGBW / FC
    8° - 40° optical zoom system

    LIGHT SOURCE
    • Source:
      7x15
      W
      RGBW LED
    • Luminous flux:
      1'919
      lm
    • Lux:
      5'600
      lx
      @3 m
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      6 - 43
      °
      motorised linear zoom
    • Beam angle:
      8 - 40
      °
    • Field angle:
      11 - 43
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CTC:
      CTC control through independent DMX channel
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      3 / 4 / 5 / 6 / 7 / 12 / 17 / 25
      channel
    • Display:
      LED display user interface
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      5
      different dimming curves available
    • Operating temperature:
      -40° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      128
      W
    • Output (at 230 V):
      24
      units on a single power line
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      DMX 3p IN/OUT
    • Power connection:
      powerCON TRUE1 IN/OUT
    • IP rating:
      IP67 (IP) - IP54 (TZ)
    • Dimensions (WxHxD):
      190x324x228
      mm
    • Weight:
      7
      kg
    Product Code
    Accessory Code
    Description
    ARCLED7507Q2Z (optional)
    SOLAR (optional)
    ARCLED3109PIX (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    ARCLED7307HD (optional)
    LUMIPIX12QIP (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    ARCLED7507Q2Z (optional)
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7307HD (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    ARCLED7337VW (optional)
    ARCLED8107Q (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    ARCLED7507Q2Z (optional)
    FCL7507FCL7507
    FINESTOCK
    Flight case with internal compartments designed to contain 8 pcs ARCLED7507
    ARCLED7507Q2Z (optional)
    ARCLED7513VWZ (optional)
    LUMIPIX12TRIIP (optional)
    LUMIPIX12QIP (optional)
    Adaptor cables to link ARCLED projectors to other Prolights IP fixtures.
