    Code Power Connections Signal Connections IP rate Avail.
    ARCLED7513VWZIP IP cable IP cable IP67
    ARCLED7513VWZTZ
    Powercon DMX in/out IP54

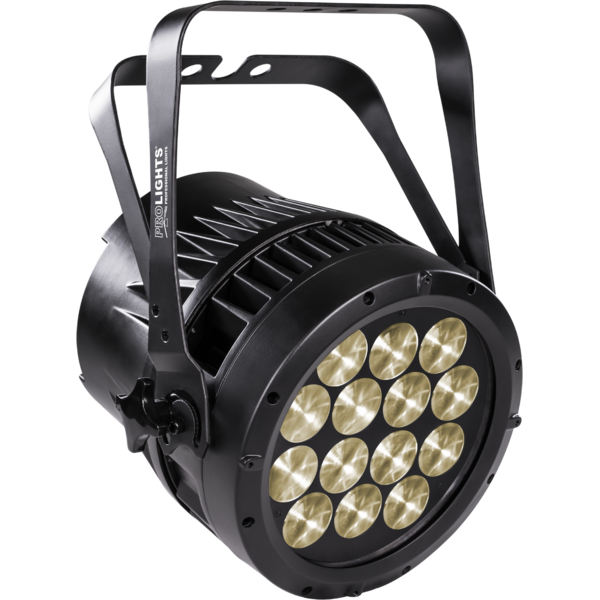

    ARCLED7513VWZ offers unprecedented performance, employing 14x15W Variable White LEDs and a high efficiency 6°-30° optical zoom system for applications such as washer, beamer or both in the same stage-plot. The color calibration system, 2800K°-10000K° built-in white preset, 5 selectable dimmer curves and the total absence of fans, makes this fixture suitable for light design with high demanding requirements.

    LIGHT SOURCE
    • Source:
      14x15
      W
      Warm White + Cold White Osram Ostar LED
    • CT:
      3000K~6000
      K
    • CRI:
      WW: >97, CW: >70
    • Luminous flux:
      3222
      lm
    • Lux:
      8621
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      6-43
      °
      motorised linear zoom
    • Beam angle:
      6-30
      °
    • Field angle:
      11-43
      °
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CTC:
      linear CTO correction 2700 K ~ 6000 K
    • White presets:
      3000~6000
      K
    • Colour wheel:
      virtual colour wheel with presets
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      1/6/10
      channel
    • Display:
      LED display user interface
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      5
      different dimming curves available
    • Operating temperature:
      -40° ~ +45°
    • Flicker:
      flicker free operation
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      170
      W
    • Output (at 230 V):
      12
      units on a single power line
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Sospension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      3p IN/OUT
    • IP rating:
      IP67 (IP) - IP54 (TZ)
    • Dimensions (WxHxD):
      283x236x348
      mm
    • Weight:
      8,6
      kg
    Product Code
    Accessory Code
    Description
    ARCLED7513VWZ (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED7507Q2Z (optional)
    LUMIPIX12QIP (optional)
    Adaptor cables to link ARCLED projectors to other Prolights IP fixtures.
    ARCLED7513VWZ (optional)
    FCL7513FCL7513
    DISCONTINUED
    *Flight case with internal compartments designed to contain 8 pcs ARCLED7513
    ARCLED7513VWZ (optional)
    ARCLED7507Q2Z (optional)
    SOLAR (optional)
    ARCLED3109PIX (optional)
    ARCLED3404 (optional)
    ARCLED7307HD (optional)
    LUMIPIX12QIP (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    ARCLED7513VWZ (optional)
    ARCLED7507Q2Z (optional)
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7307HD (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    ARCLED7337VW (optional)
    ARCLED8107Q (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    ARCLED7513VWZ (optional)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    Z300BEAM (include)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    ARCLED8107Q (include)
    C60C60
    Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
