ARCLED9336RGB
Share me

Immagine Principale
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
  • ARCLED9336RGB
    Code Optics Avail.
    ARCLED9336RGB30
    30
    ARCLED9336RGB15
    15
    ARCLED9336RGB45
    45
    ARCLED9336RGB60
    60

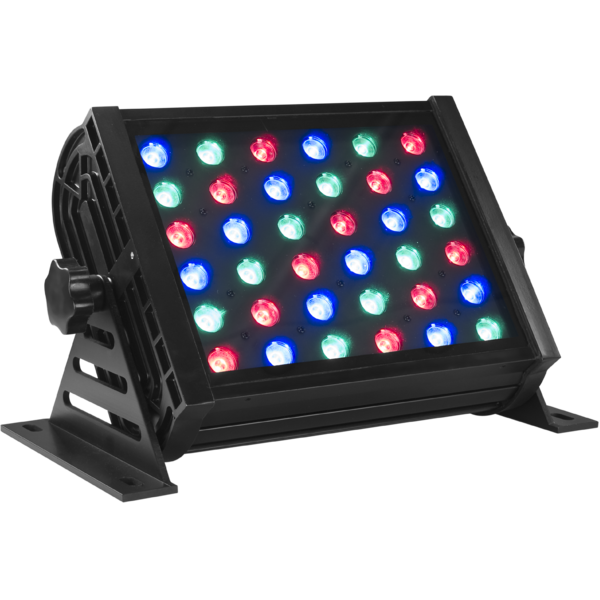

    Professional RGB washlight projector, based on LED technology, for indoor/outdoor applications.
    Light source and optics
    • 36 x 3W high-efficiency LEDs: (12 red, 12 green, 12 blue)
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: RGB Colour mixing (>16million colours) for a limitless colour range.
    • High efficiency precise optics
    • Projection angle: 30° (15°, 45°, 60° available on demand)
    • LEDs average life span: > 75'000 hours.
    Electronics and features
    • Several DMX selectable configurations (3, 4, 5 and 9 channels) for professional or simplified controlling 3 channels: RGB3 channels: HSV (Hue, Saturation, Value) 4 channels: RGB, dimmer 5 channels: RGB, dimmer, strobe 9 channels: RGB, dimmer, strobe, macro, auto programs, programs speed, ID addressing
    • Manual control of values and programs through the LED display menu
    • Automatic mode with built-in programs
    • Master/Slave mode for stand alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker free operations
    • Silent operations and virtually no maintenance due to natural convection cooling system (no fans)
    Structure and power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • IP66 protection rate and connections (standard SHUKO and XLR 3p adapters included)
    • Double hanging bracket suitable for safe hanging and as a floor stand
    • Adjustable barn doors to direct light output (ARCLED9336BD not included)
    • Power unit: 100-240V 50/60Hz
    • Power output signal: up to 22 units at 230V
    • Consumption: 120W
    • Weight: 5,3Kgs
    • Dimensions (WxHxD): 363x228x160mm
    Product Code
    Accessory Code
    Description
    ARCLED9336RGB (optional)
    ARCLED9336BARARCLED9336BAR
    DISCONTINUED
    *Hanging and ground support, adjustable, for ARCLED9336
    ARCLED9336RGB (optional)
    ARCLEDEXDC1ARCLEDEXDC1
    FINESTOCK
    Extension IP68 data cable, IPdatacon-f->IPdatacon-m
    ARCLED9336RGB (optional)
    ARCLEDEXAC1ARCLEDEXAC1
    FINESTOCK
    Extension IP68 power cable, IPpowercon-f->IPpowercon-m
    ARCLED9336RGB (optional)
    ARCLEDL60ARCLEDL60
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 60°, (36 pcs)
    ARCLED9336RGB (optional)
    ARCLEDL45ARCLEDL45
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 45°, (36 pcs)
    ARCLED9336RGB (include)
    ARCLEDL30ARCLEDL30
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 30°, (36 pcs)
    ARCLED9336RGB (optional)
    ARCLEDL25ARCLEDL25
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 25°, (36pcs)
    ARCLED9336RGB (optional)
    ARCLEDL15ARCLEDL15
    DISCONTINUED
    *Lenses kitfor Arcled series projectors, Beam Angle 15°, (36pcs)
    ARCLED9336RGB (optional)
    ARCLED9336BDARCLED9336BD
    FINESTOCK
    Optional barndoor with 4 directional flaps to adjust ARCLED9336RGB-AW light beam

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    User Manuals


    Italian/English manual
    Download
