    Code Color synthesis Avail.
    ARCQUBE9CW Cool White
    ARCQUBE9WW Warm White
    ARCQUBE9A Amber

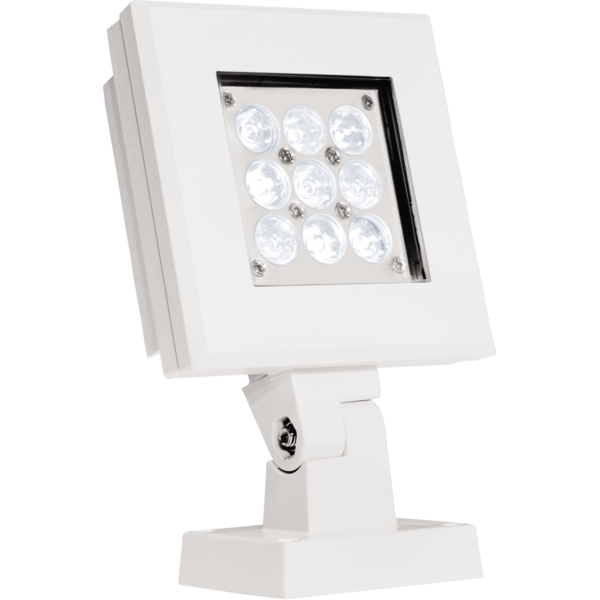

    ARCQUBE9 is engineered as a compact and sleek lighting fixture suitable for building facades and monuments. Used in conjunction with ARCDRIVE436 power supplies, ARCQUBE9 is developed as a cost-effective and efficient solution for many kinds of lighting applications. With a modern cubic design, ARCQUBE9 is ideal for both modern and more traditional architectures.

    Features:
    9x2W warm white + cold white LEDs
    Beam angle 30°
    IP66 rating for outdoor use

    LIGHT SOURCE
    • Source:
      9x2
      W
      Warm White + Cold White LEDs
    • Luminous flux:
      @full CW 1241 lm - WW 884
      lm
      @2 m
    • Lux:
      @full CW 935 lux - WW 660
      lx
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      30
      °
    • Additional optics:
      12°, 55° optional
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • White presets:
      3200K~10000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      white
    CONTROL
    • Protocols:
      DMX512
    ELECTRONICS
    • Operating temperature:
      -40° ~ +45°
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      18.5
      W
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      137x214x53
      mm
    • Weight:
      1.5
      kg
    CODICE_PRODOTTO
    Accessory Code
    Description
    ARCQUBE9 (optional)
    ARCWAVE12RGB (optional)
    ARCQUBE9RGB (optional)
    Power/control unit for architectural LED, 4 OUT, 3x12 LEDs (600mA)
