ARCSTRIP9
Share me

IP66

Immagine Principale
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
  • ARCSTRIP9
    Code Color synthesis Avail.
    ARCSTRIP9CW
    CW
    ARCSTRIP9WW
    WW
    ARCSTRIP9A
    A

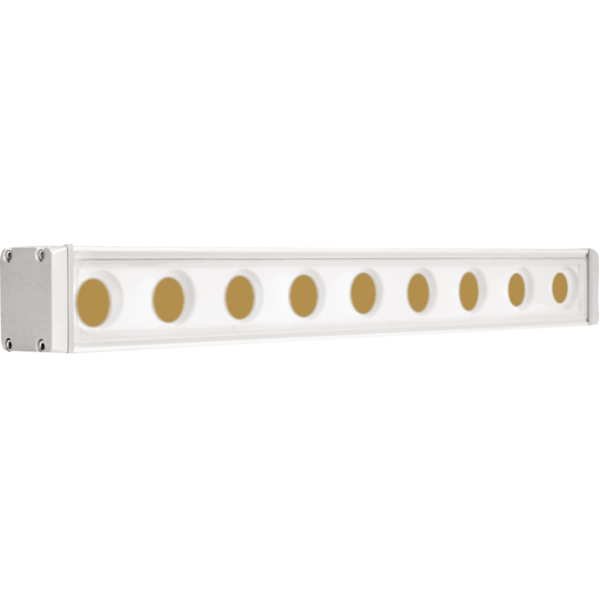

    ARCSTRIP9 is designed as a compact and robust exterior lighting fixture, suitable for a wide range of wall washing lighting applications. The sleek and modern design of this fixture allows an excellent integration into most kinds of architecture. Used in combination and powered by ARCDRIVE436 controllers, ARCSTRIP9 is an extremely flexible lighting tool.

    Features:
    9x2W cold white - warm white LEDs
    Beam angle 40x12°
    IP rating: 66 for outdoor events

    LIGHT SOURCE
    • Source:
      9x2
      W
      Warm White + Cold White LEDs
    • Luminous flux:
      CW @full 1020 lm; WW @full 748
      lm
    • Lux:
      40x12° @full 935 lux - WW 40x12° @full 600
      lx
      @2 m
    OPTICS
    • Beam angle:
      40x12
      °
    • Additional optics:
      15°, 30° optional
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • White presets:
      3200K~10000
      K
    • Colour wheel:
      virtual colour wheel with presets
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      silver
    CONTROL
    • Protocols:
      DMX512
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Operating temperature:
      -40° ~ +45°
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      18.5
      W
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      400x36x45
      mm
    • Weight:
      0.8
      kg
    Product Code
    Accessory Code
    Description
    ARCSTRIP9 (optional)
    ARCWAVE12RGB (optional)
    ARCQUBE9RGB (optional)
    ARCQUBE9 (optional)

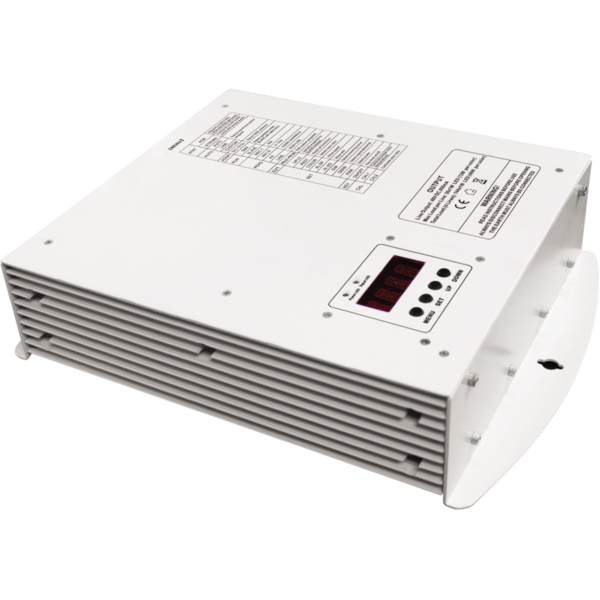

    Power/control unit for architectural LED, 4 OUT, 3x12 LEDs (600mA)
