    Code Finishing Avail.
    ARK112SABK Black
    ARK112SAWH White

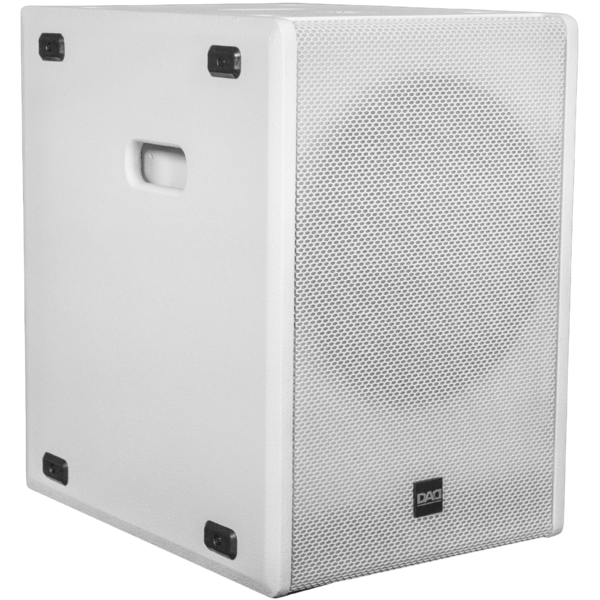

    Bass-reflex active subwoofer, 2x700W D-class amplifier, 124dB SPL

    Features:
    Low frequency: 12 '' woofer/3'' v.c.
    Frequency response:40-200 Hz (±3dB)
    Built-in DSP: fully adjustable.
    ARK112SA amplified subwoofer speaker can drive up to 2 column speakers of the ARK column series plus an additional ARK112SP passive subwoofer.
    Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
    The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
    Birch plywood enclosure.

    LOUDSPEAKER
    • System type:
      active subwoofer
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/3''v.c.
    FEATURES
    • Built-in amp LF/MF-HF:
      700+700
      W
      /4Ohm
    • Built-in DSP:
      DSP
      fully adjustable
    ACOUSTICAL SPECIFICATIONS
    • SPL cont/peak:
      118/124
      dB
      @1m (free field)
    • Frequency response:
      40-200
      Hz
      (±3dB)
    • Coverage angle HxV:
      °
      omnidirectional
    • Suggest LPF range:
      120/200
      Hz
    ELECTRONICS
    • Amplifier:
      digital
    • Power:
      700 +700
      W
      /4Ohm
    • Input sensitivity:
      4 dBu (1,228Vrms) adjustable
    • Protection:
      limiter temp.
    • User controls:
      mic, line, master, eq LF-HF
    • Built-in DSP:
      28/56
      bit
    • Operating voltage/frequency:
      220 V~240 V/50 Hz
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR IN/OUT
    • Output signal:
      jack 6.35 mm, 4 pole IN/OUT
    • Data:
      USB port
    • Power connection:
      powerCON IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      15
      mm
      plywood
    • Sospension system:
      support with signal connection
    • Handles:
      2 on side, 1 top
    PHYSICAL
    • Dimensions (WxHxD):
      362x520x470
      mm
    • Weight:
      24.1
      kg
    Product Code
    Accessory Code
    Description
    ARK112SA (optional)
    ARK2V8SA (optional)
    ARK2V8SP (optional)
    ARKPWB701 (optional)
    ARK803AP (optional)
    ARK112SP (optional)
    Support element for ARK column array system
    ARK112SA (optional)
    ARK112SP (optional)
    Reinforced nylon bag for the protection/transport of one piece of ARK112

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    PL2303 Driver (Driver win)Download
    ARK Editor SoftwareDownload
    ARK112SA presetDownload

    User Manuals


    Italian/English manual
    Download
