    Code Finishing Avail.
    ARK112SPBK Black
    ARK112SPWH White

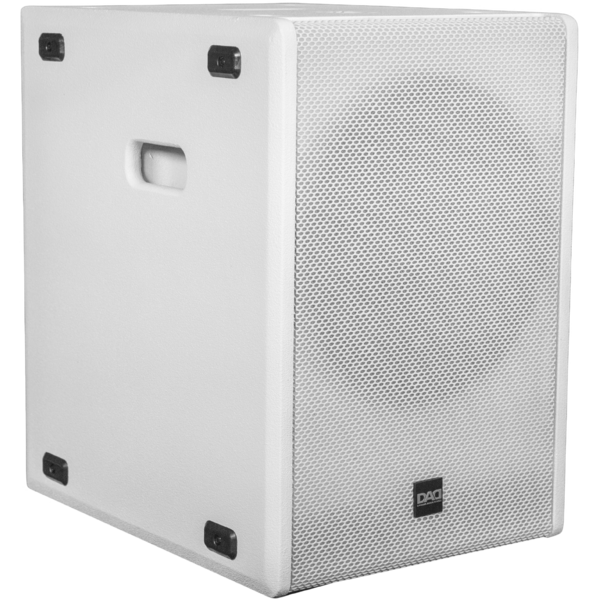

    Bass reflex passive subwoofer, 400W AES,125dB SPL

    Features:
    Low frequency: 12 '' woofer/3'' v.c
    Frequency response:40-200 Hz (±3dB)
    ARK112SP subwoofer speaker is the ideal complement to column loudspeakers for reinforcing low notes.
    Signal connection between the subwoofer and medium-high column units via a connector integrated with the loudspeaker.
    The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
    Birch plywood enclosure.

    LOUDSPEAKER
    • System type:
      passive subwoofer
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/3''v.c.
    FEATURES
    • AES/program power:
      400/800
      W
    • SPL max:
      125
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      96
      dB
    • Impedance:
      8
    • SPL cont/peak:
      119/125
      dB
      @1m (free field)
    • Frequency response:
      40-200
      Hz
      (±3dB)
    • Coverage angle HxV:
      °
      omnidirectional
    • Suggest LPF range:
      100/160
      Hz
    • Recommended amplifier up to:
      800
      W
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      jack 6.35 mm, NL4 IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      15
      mm
      plywood
    • Sospension system:
      support with signal connection
    • Handles:
      2 on side, 1 top
    PHYSICAL
    • Dimensions (WxHxD):
      362x520x470
      mm
    • Weight:
      21.9
      kg
    Product Code
    Accessory Code
    Description
    ARK112SP (optional)
    ARK2V8SA (optional)
    ARK2V8SP (optional)
    ARKPWB701 (optional)
    ARK803AP (optional)
    ARK112SA (optional)
    Support element for ARK column array system
    ARK112SP (optional)
    ARK112SA (optional)
    Reinforced nylon bag for the protection/transport of one piece of ARK112
