    Code Avail.
    ARK12MPBK
    ARK12MPWH

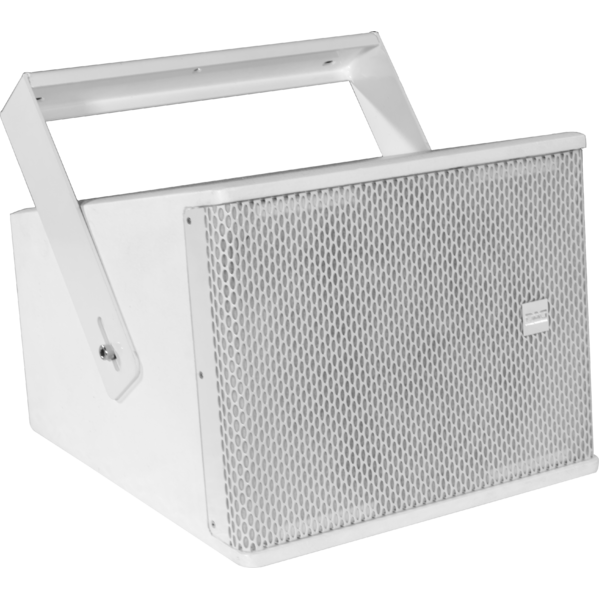

    2-way passive loudspeaker, coaxial design, 300W AES, 128dB SPL

    Features:
    Low frequency: 12'' woofer/3'' v.c.
    High frequency: 1 '' driver / 1.7'' v.c.
    Frequency response: 50-18000 Hz (±3dB)
    ARK12MP full range speakers are suitable for mediuim and large installations or can be used as satellites in combination with the passive or active sub.
    The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
    Birch plywood enclosure.

    LOUDSPEAKER
    • System type:
      passive 2 way coaxial design
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/3''v.c.
    • High frequency:
      1
      ''
      driver/1.7''v.c.
    FEATURES
    • AES/program power:
      300/600
      W
    • SPL max:
      128
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      98
      dB
      @1W/1m (free field)
    • Impedance:
      16 Ohm
    • SPL cont/peak:
      122/128
      dB
      @1m (free field)
    • Frequency response:
      50-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      80x80
      °
    • Cross over frequency:
      2200
      Hz
    • Protection:
      H.F. signal compression
    • Suggest HPF range:
      80/120
      Hz
    • Recommended amplifier up to:
      600
      W
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      Phoenix - NL4 IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      15
      mm
      birchplywood
    • Sospension system:
      wall brackets (included)
    PHYSICAL
    • Dimensions (WxHxD):
      450x361x450
      mm
    • Weight:
      21.9
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
