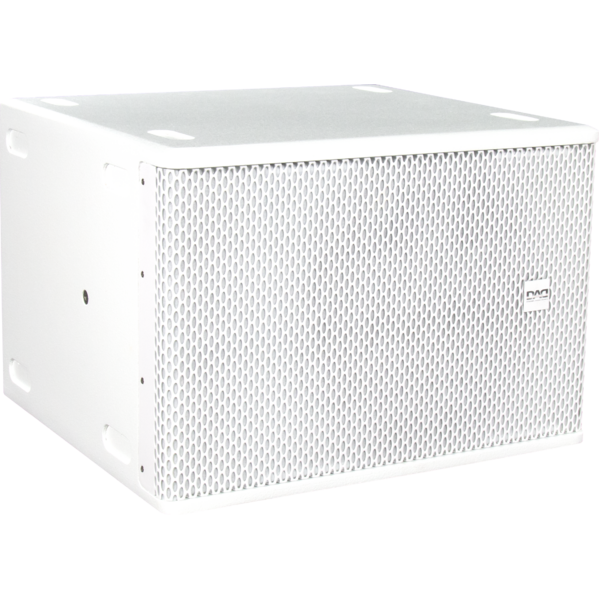

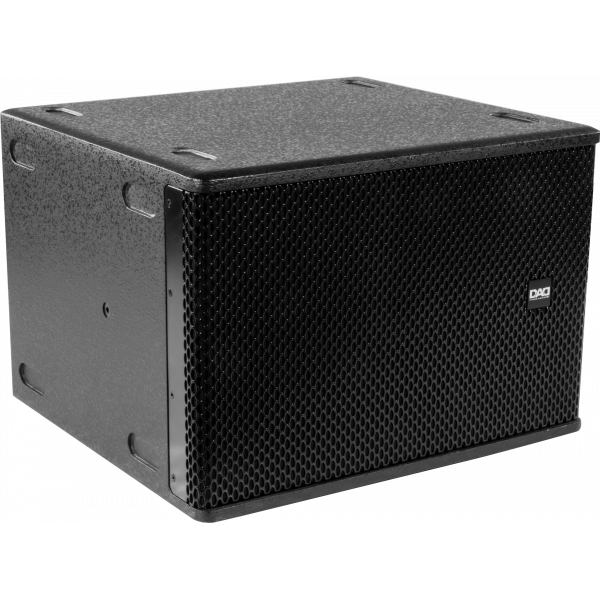

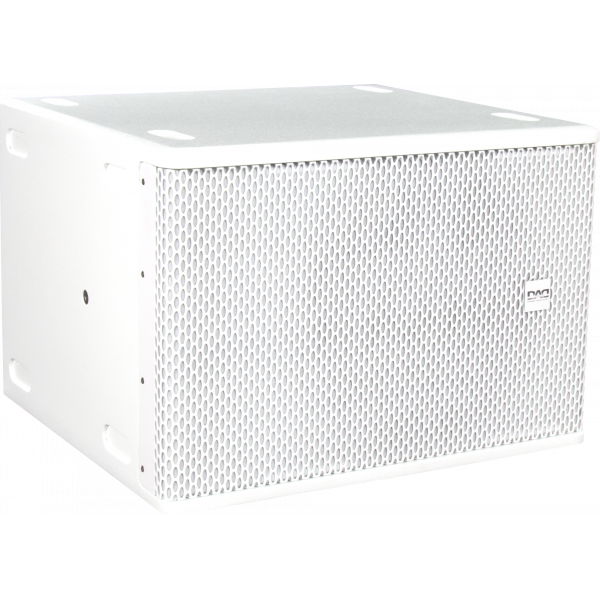

ARK12SP

Share me

	Code											Avail.
	ARK12SPBK
	ARK12SPWH

Bass reflex passive subwoofer, 400 W AES, 123dB SPL

Features:
Low frequency: 12'' woofer/3'' v.c.
Frequency response:40-200 Hz (±3dB)
ARK12SP subwoofer speaker is the ideal complement to the full range speakers for reinforcing low notes.

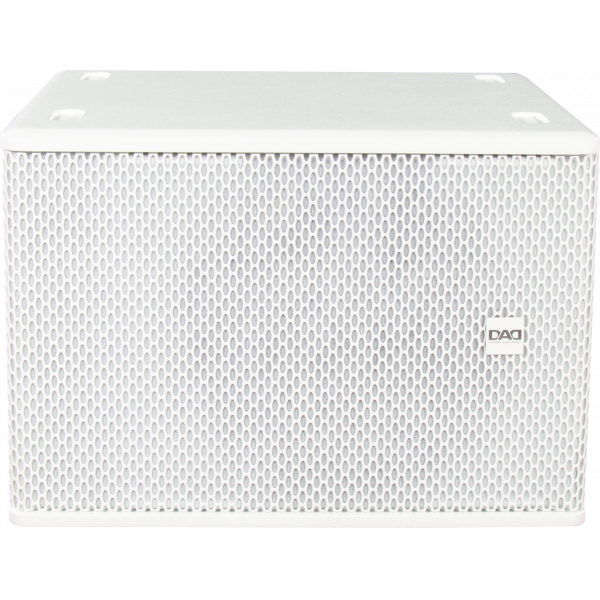

The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation. Can be combined with IDEA amplifiers with dedicated presets.
Birch plywood enclosure.

LOUDSPEAKER

System type:

passive subwoofer

COMPONENTS

Low frequency:

12
''

woofer/3''v.c.

FEATURES

AES/program power:

400/800
W
SPL max:

123
dB

@1m (free field)

ACOUSTICAL SPECIFICATIONS

Sensitivity:

94
dB
Impedance:

8
SPL cont/peak:

117/123
dB

@1m (free field)
Frequency response:

40-200
Hz

(±3dB)
Coverage angle HxV:

°

omnidirectional
Suggest LPF range:

100/160
Hz
Recommended amplifier up to:

800
W

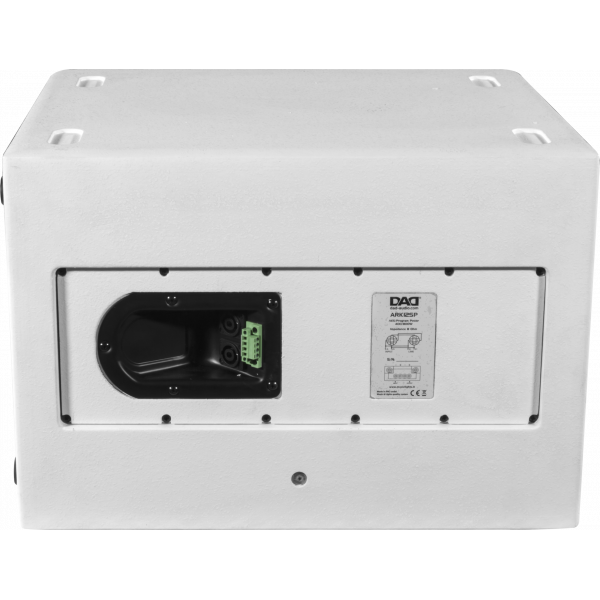

INPUT/OUTPUT CONNECTORS

Input signal:

Phoenix - NL4 IN/OUT

CABINET CONSTRUCTION

Cabinet material:

15
mm

plywood
Sospension system:

wall brackets (not included)

PHYSICAL

Dimensions (WxHxD):

362x520x470
mm
Weight:

22.1
kg

ITEMS REF.

Accessory Code

Description

ARK12SP (optional)

ARK12SB
