ARK203MP

Share me

ARK203MP

Code	Finishing	Avail.
ARK203MPBK	Black
ARK203MPWH	White

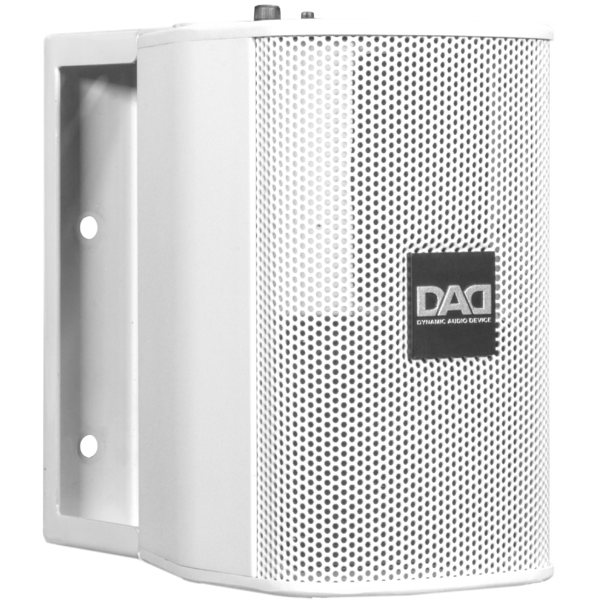

Wall mounted column loudspeaker, 50 W AES, 108dB SPL

Features:
Mid frequency: 2x3'' midrange / 0.75'' v.c.
Frequency response: 135-17000 Hz (±3dB)
Coverage angle HxV:115x40°
The modules with 2 transducers of 3” represent the solution to sound in environments particularly difficult, where quality and intelligibility are required.
Column modules with an off-axis transducer for wide horizontal dispersion.
Aluminium frame for a very robust yet lightweight design that fits in with any environment.

LOUDSPEAKER

System type:

column loudspeaker

COMPONENTS

Mid frequency:

2x3
''

midrange / 0.75'' v.c.

FEATURES

AES/program power:

50/100
W
SPL max:

108
dB

@1m (free field)

ACOUSTICAL SPECIFICATIONS

Sensitivity:

89
dB

@1W/1m (free field)
Impedance:

16 Ohm
SPL cont/peak:

102/108
dB

@1m (free field)
Frequency response:

135-17000
Hz

(±3dB)
Coverage angle HxV:

115x40
°
Suggest HPF range:

140/180
Hz
Recommended amplifier up to:

100
W

/16Ohm

INPUT/OUTPUT CONNECTORS

Input signal:

4pole IN/OUT

CABINET CONSTRUCTION

Cabinet material:

3
mm

aluminum die cast
Sospension system:

wall brackets (included)

PHYSICAL

Dimensions (WxHxD):

110x180x148
mm
Weight:

2.2
kg
