    Code Finishing Avail.
    ARK208SPBK Black
    ARK208SPWH White

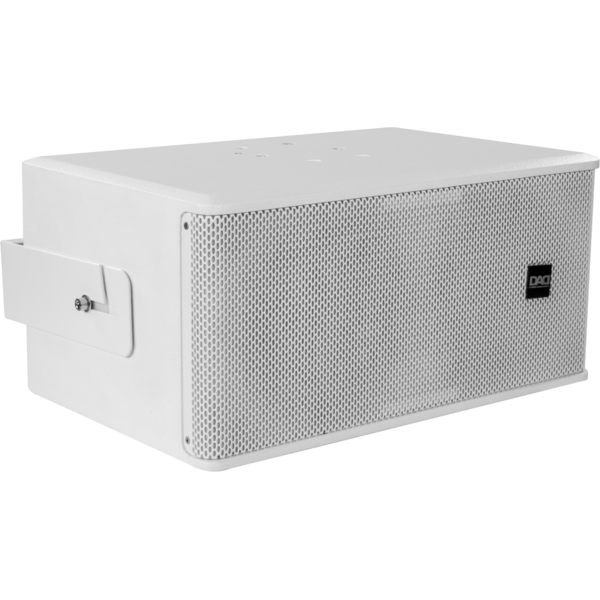

     Bass reflex passive subwoofer, 300W AES, 122dB SPL

    Features:
    Low frequency: 2x8 '' woofer/2'' v.c.
    Frequency response:50-200 Hz (±3dB)
    ARK208SP subwoofer speaker is the ideal complement to the full range speakers for reinforcing low notes.
    The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
    Birch plywood enclosure.

    LOUDSPEAKER
    • System type:
      passive subwoofer
    COMPONENTS
    • Low frequency:
      2x8
      ''
      woofer/2''v.c.
    FEATURES
    • AES/program power:
      300/600
      W
    • SPL max:
      122
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      95
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      116/122
      dB
      @1m (free field)
    • Frequency response:
      50-200
      Hz
      (±3dB)
    • Coverage angle HxV:
      °
      omnidirectional
    • Suggest LPF range:
      120/200
      Hz
    • Recommended amplifier up to:
      600
      W
      /8Ohm
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole - terminal clamp IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      12
      mm
      plywood
    • Sospension system:
      wall brackets (included)
    PHYSICAL
    • Dimensions (WxHxD):
      500x246x325
      mm
    • Weight:
      13.5
      kg
    Product Code
    Accessory Code
    Description
    ARK208SP (optional)
    ARK208SA (optional)
    Adjustable bracket on three axes for ARK series speakers, max 20 kg
