ARK403MP
Share me

Immagine Principale
  • ARK403MP
  • ARK403MP
  • ARK403MP
  • ARK403MP
  • ARK403MP
  • ARK403MP
  • ARK403MP
    Code Finishing Avail.
    ARK403MPBK Black
    ARK403MPWH White

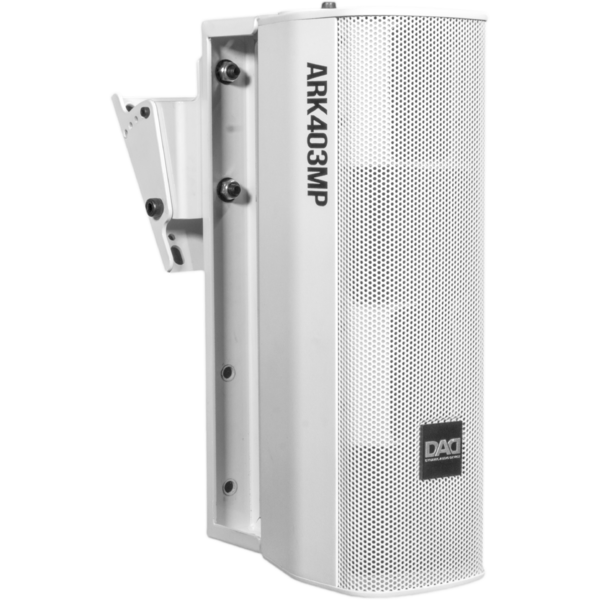

    Wall mounted column loudspeaker, 100W AES, 114dB SPL



    Features:
    Mid frequency:4x3 '' midrange / 0.75'' v.c.
    Frequency response:135-17000 Hz (±3dB)
    Coverage angle HxV:115x20 °
    The modules with 4 transducers of 3” represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required.
    Column modules with an off-axis transducer for wide horizontal dispersion.
    Aluminium frame for a very robust yet lightweight design that fits in with any environment.

    LOUDSPEAKER
    • System type:
      column loudspeaker
    COMPONENTS
    • Mid frequency:
      4x3
      ''
      midrange / 0.75'' v.c.
    FEATURES
    • AES/program power:
      100/200
      W
    • SPL max:
      114
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      92
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      108/114
      dB
      @1m (free field)
    • Frequency response:
      135-17000
      Hz
      (±3dB)
    • Coverage angle HxV:
      115x20
      °
    • Suggest HPF range:
      140/180
      Hz
    • Recommended amplifier up to:
      200
      W
      /8Ohm
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      3
      mm
      aluminum die cast
    • Sospension system:
      wall brackets (included)
    PHYSICAL
    • Dimensions (WxHxD):
      110x350x148
      mm
    • Weight:
      5.8
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
