ARK416MP
Share me

Immagine Principale
  • ARK416MP
  • ARK416MP
  • ARK416MP
  • ARK416MP
  • ARK416MP
  • ARK416MP
    Code Avail.
    ARK416MPBK
    ARK416MPWH

    Passive 2.5-way 450 W AES column loudpseaker module, 129 dB SPL.

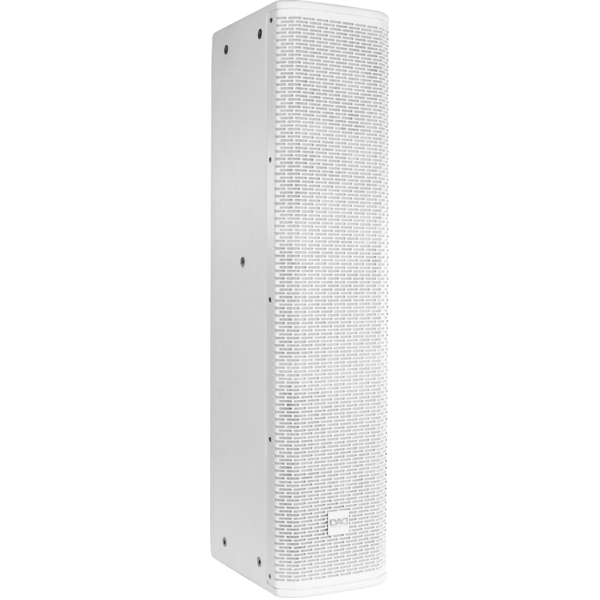

    ARK416MP is a 2.5 way passive medium throw speaker for fixed and mobile installations. It consists of a 1" compression driver (1.75" v.c.), mounted on a waveguide. The nominal coverage (H x V) is 90°x50°. The MF/LF frequency range is covered by 6" 4 units speakers placed symmetrically with respect to the HF driver. The 2.5-way design with woofer placement at the ends of the cabinet reduces the frequency from which the speaker increases the control of dispersion in the vertical plane. The result ensures maximum intelligibility of sound and speech in reverberant environments.
    The ARK416MP is an extremely flexible speaker, it can be used in full range or as an MF / HF section (up to two overlapping units) in high sound pressure systems The cabinet is made of 12 mm birch plywood with a black polyurea finish.
    The ARK416MP speaker can be combined with the ARK15SA subwoofer. The subwoofer has a 700 W amplified output. ARK416MP and ARK15SA constitute a powerful portable system with amplified column.



    Features:
    Low frequency: 4x6'' Nd woofer/1.5'' v.c.
    High frequency: 1'' Nd driver / 1.7'' v.c.
    Frequency response: 80-18000 Hz (±3dB)
    Cover angle HxV:90°x50°
    Combined with the ARK15SA subwoofer
    Configurable up two superimposed units
    Optional transport and fixing accessories

    LOUDSPEAKER
    • System type:
      2.5 way passive column module
    COMPONENTS
    • Low frequency:
      4x6
      ''
      neodymium woofer / 1.5'' v.c.
    • High frequency:
      1
      ''
      neodymium driver / 1.7'' v.c.
    FEATURES
    • AES/program power:
      450/900
      W
    • SPL max:
      129
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      98
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      123/129
      dB
      @1m (free field)
    • Frequency response:
      80-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      90x50
      °
    • Cross over frequency:
      1600
      Hz
      passive
    • Suggest LPF range:
      120/150
      Hz
    • Recommended amplifier up to:
      900
      W
      /8Ohm
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      Phoenix - NL4 IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      12
      mm
      birchplywood
    • Sospension system:
      Under: 35 mm mounting pole - Up: M20 screw
    PHYSICAL
    • Dimensions (WxHxD):
      180x813x255
      mm
    • Weight:
      13.6
      kg
    ITEMS REF.
    Accessory Code
    Description
    ARK416MP (optional)
    Optional bracket for ARK426A, ARK216A, ARK416MPBK BLACK COLOR
    ARK416MP (include)
    BX18SA (optional)
    BX15SA (optional)
    BX12SA (optional)
    ARK15SA (optional)
    ARK426A (include)
    ARK216A (optional)
    Aluminum cylinder with M20 screw for ARK426A, ARK416MP, ARK216A
    ARK416MP (optional)
    BX18SA (optional)
    BX12SA (optional)
    BX15SA (optional)
    ARK15SA (optional)
    ARK426A (optional)
    ARK216A (optional)
    SM2040SM2040
    NEW
    Fixed speaker pole, H.40 cm - 35mm, with M20 screw, 60kg max
    ARK416MP (optional)
    BX18SA (optional)
    BX12SA (optional)
    BX15SA (optional)
    ARK15SA (optional)
    ARK216A (optional)
    ARK426A (optional)
    Adjustable speaker pole, H.88.5-133.5cm - 35mm, with M20 screw, 60kg max
    ARK416MP (optional)
    ARK12MP (optional)
    ARK12SP (optional)
    ARK12SA (optional)
    ARK426A (optional)
    ARK216A (optional)
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
