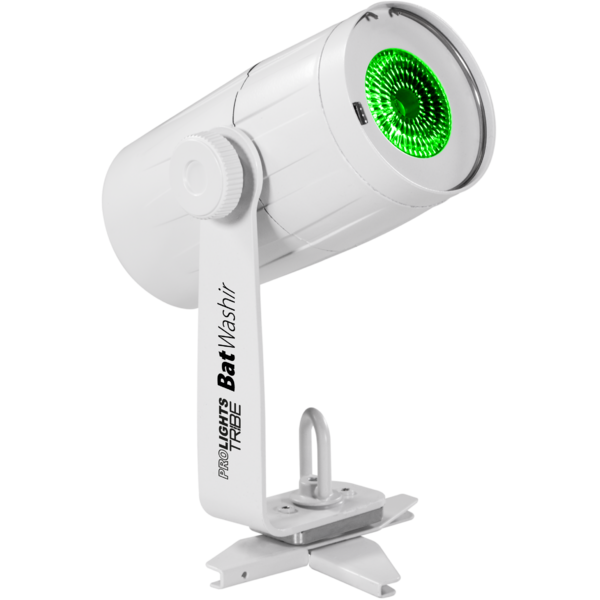

BATWASHIR
ORDER CODE: BATWASHIR
Condividimi

Immagine Principale
  • BATWASHIR
  • BATWASHIR
  • BATWASHIR
  • BATWASHIR
  • BATWASHIR
  • BATWASHIR è un proiettore alimentato a batteria con sorgente a LED progettato per rivoluzionare il concetto di illuminazione d'accento nelle applicazioni temporanee. Il sistema ottico ad alta efficienza è stato studiato combinando un LED RGBAWP / FC da 10W con una speciale ottica da 20°, risultando incredibilmente luminoso, compatto e a risparmio energetico. La durata della batteria di 6 ore e il controllo remoto del dispositivo tramite IR, rendono BATWASHIR ideale per molte applicazioni come centrotavola o accent light per matrimoni, conferenze, showroom, club. L'hardware di sospensione offre due possibili soluzioni di montaggio, un magnete per un'applicazione rapida su qualsiasi superficie metallica o un morsetto a forbice per il montaggio su guide a soffitto.

    Features:
    10W LED RGBWAP / FC
    Gelatina inclusa: CTB
    Modalità IR: ricevitore a infrarossi integrato per controller remoto
    Hardware di sospensione: magnete per un'applicazione rapida su qualsiasi superficie metallica o con un morsetto a forbice per il montaggio su guide a soffitto

    SORGENTE LUMINOSA
    • Sorgente:
      10
      W
      RGBWAP LED
    • Lux:
      115
      lx
      @3 m full
    • Durata media sorgente:
      > 50.000 h
    OTTICA
    • Angolo di proiezione:
      20
      °
    • Angolo di campo:
      40
      °
    • Diametro:
      42
      mm
    • Ottiche aggiuntive:
      15° and 45° optional
    SISTEMA COLORE
    • Miscelazione del colore:
      RGBWAP / FC
    EFFETTI DINAMICI
    • Modalità statico:
      riproduzione statica di un colore
    • Modalità manuale:
      regolazione manuale di un colore
    • Auto mode:
      programmi integrati con regolazione della velocità di esecuzione
    CORPO
    • Hardware a bordo:
      magnete per un'applicazione rapida su qualsiasi superficie metallica o con un morsetto a forbice per il montaggio su gui
    • Corpo:
      corpo in alluminio pressofuso ad alta resistenza
    • Colore:
      bianco
    CONTROLLO
    • IR:
      controllo remoto tramite IR
    ELETTRONICA
    • Dimmer:
      0 ~ 100% lineare, elettronico
    • Strobo / shutter:
      1 - 28
      Hz, elettronico
    • Temperatura d'esercizio:
      0° ~ +35°
    • Controllo LED:
      funzionamento senza sfarfallio
    ALIMENTAZIONE
    • Alimentazione elettrica:
      DC 8,4 V
    • Potenza massima assorbita:
      5,5
      W
    BATTERIA
    • Batteria:
      7,4
      V
      litio
    • Autonomia in modalità cambia colori, fino a:
      11
      h
    • Autonomia in modalità singolo colori, fino a:
      R:16 h / G: 13 h / B: 12 h - W: 13 h - A: 14,5 h - P: 13
      h
    • Autonomia in modalità full white, fino a:
      7
      h
    • Connessione di ricarica:
      cavo di alimentazione
    • Tempo di ricarica:
      5
      h/max
    CARATTERISTICHE FISICHE
    • Grado IP:
      33
    • Sospensione e fissaggio:
      base magnetica per il fissaggio su qualsiasi superficie metallica
    • Dimensioni (LxAxP):
      110x205x73,6
      mm
    • Peso:
      0,79
      kg
    BOX CONTENT
    • 1 x BATWASHIR
    • 1 x battery charger
    • 1 x frost filter
    • 1 x LUMIPARIRCH
    • User Manual
