BX15SA
Share me

Immagine Principale
  • BX15SA
  • BX15SA
  • BX15SA
  • Active subwoofer, D-class amplifier, 1000 W, 133db SPL

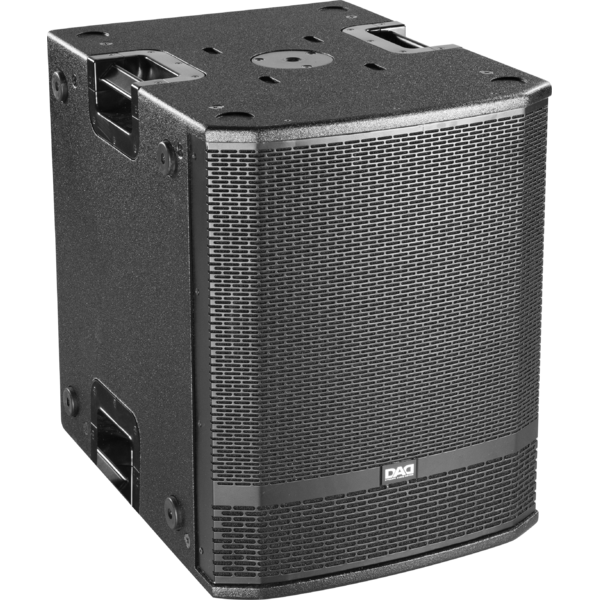

    The BX15SA is an 15" powered subwoofer that provides a powerful low frequency response. The geometry of the reflex duct is low compression thanks to the aerodynamic development. This design guarantees precise and well controlled bass response even at high volume.



    STATE-OF-THE-ART B&C WOOFER

    The BX15SA is equipped with an 15” neodymium woofer produced by B&C Speakers with very low distortion and extremely long excursion. The neodymium motor provides an extremely high magnetic flux for greater efficiency. The 4" coil is 25 mm high, ensuring an ultra linear excursion of 18 mm/pp with constant magnetic force. The fiberglass cone and the ventilated magnet reduce distortion and power compression. This design improves overall quality sound and performance characteristics.



    CLASS D AMPLIFIER

    1000W RMS digital amplifier managed by digital stereo crossover (DSP) with 4 different presets and high pass output for connecting the satellites. The amplifier is fanless since it is equipped with an effective and robust aluminum heat sink that also guarantees its mechanical stability during transport.



    CABINET
    DAD cabinets are made of birch plywood covered with a black polyurea finish. The subwoofers are stackable and light, for easy installation and easy disassembly, thanks to the ergonomic handles.



    APPLICATIONS

    The BX15SA is perfectly suitable as a sub-extension of the low range for the ARK426A, ARK216A full range column speakers, or for amplified 8" / 10 "/ 12" speakers of the DAD, and can be used in houses of worship, theaters, clubs and mobile applications.

    Features:
    1000 W RMS digital amplifier
    15" B&C neodymium woofer with 4" voice coil
    Bass reflex box with aerodynamic duct
    Stereo crossover with switchable crossover frequencies
    Polarity reversal switch
    XLR COMBO stereo input, XLR COMBO stereo signal output

    LOUDSPEAKER
    • System type:
      active subwoofer
    COMPONENTS
    • Low frequency:
      15
      ''
      neodymium woofer / 4'' v.c.
    FEATURES
    • Built-in amp:
      1000
      W
    • SPL max:
      133
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • SPL cont/peak:
      127/133
      dB
      @1m (free field)
    • Frequency response:
      40-180
      Hz
      (±3dB)
    • Coverage angle HxV:
      °
      omnidirectional
    ELECTRONICS
    • Amplifier:
      digital
    • Input sensitivity:
      4 dBu (1,228Vrms) adjustable
    • Protection:
      RMS limiter, fast limiter, temp.
    • User controls:
      bass-deep/punch, LPF-80/120Hz, link/crossover, reverse phase
    • Processor:
      DSP
    • Operating voltage/frequency:
      220 V~240 V/50 Hz
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR IN/OUT, jack 6.35 mm
    • Power connection:
      powerCON IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      18
      mm
      birchplywood
    • Sospension system:
      M20 mounting pole
    • Handles:
      4 on side
    PHYSICAL
    • Dimensions (WxHxD):
      440x577x609
      mm
    • Weight:
      40
      kg
    Product Code
    Accessory Code
    Description
    BX15SA (optional)
    BX18SA (optional)
    BX12SA (optional)
    ARK15SA (optional)
    ARK416MP (include)
    ARK426A (include)
    ARK216A (optional)

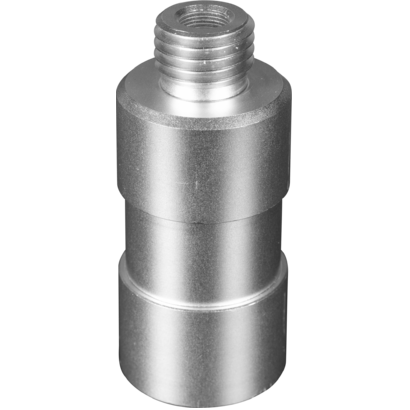

    Aluminum cylinder with M20 screw for ARK426A, ARK416MP, ARK216A
    BX15SA (optional)
    BX18SA (optional)
    BX12SA (optional)
    ARK15SA (optional)
    ARK426A (optional)
    ARK416MP (optional)
    ARK216A (optional)
    SM2040SM2040
    NEW

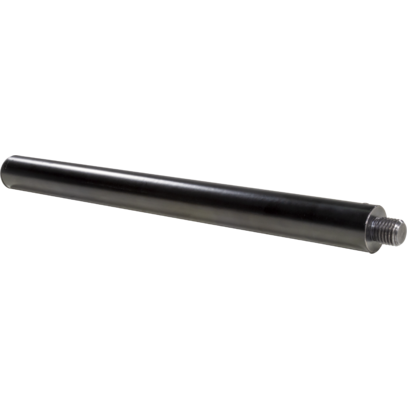

    Fixed speaker pole, H.40 cm - 35mm, with M20 screw, 60kg max
    BX15SA (optional)
    BX18SA (optional)
    BX12SA (optional)
    ARK15SA (optional)
    ARK216A (optional)
    ARK416MP (optional)
    ARK426A (optional)
    Adjustable speaker pole, H.88.5-133.5cm - 35mm, with M20 screw, 60kg max
