  • CANE8FDP

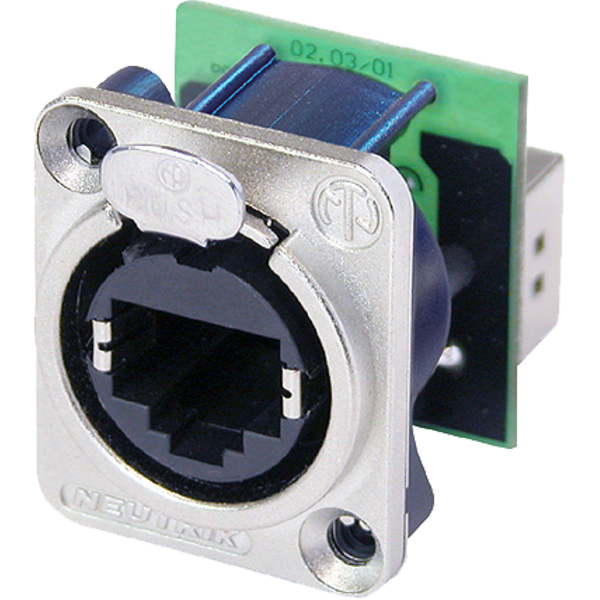

  • Neutrik RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included.
    The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
    The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

    Features:
    Approved latch lock system.
    Mountable from the front or rear of the panel.
    Bronze contacts (CuSn8) with 0.2µm gold-on-Nickel plating.
    Shell: Die-cast zinc casting, nickel-plated.
    Duration> 1000 mating cycles.
    Rated current per contact: 1.5 A.
    Rated voltage: 50 V AC.
    Transmission performance: CAT 5e.
    Conformity standards: TIA / EIA 586B, IEC11801.
    Flammability: UL 94 V-0.
    Temperature range: from -30 °C to 80 °C.
    Dimensions (WxHxD): 26x31x48 mm.

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
