  • CANL4MP

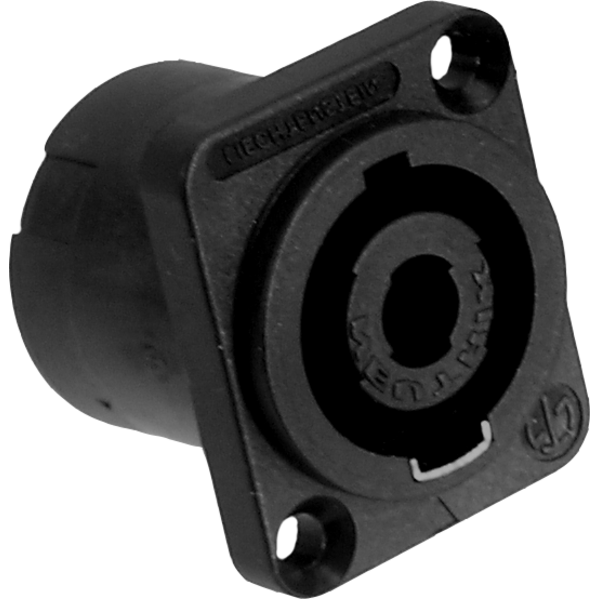

  • 4 pole Neutrik chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs.
    The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.



    Features:
    Chassis shape: D.
    Lifetime: > 5000 mating cycles.
    Shell: Polyamide.
    Contact: Bronze.
    Flammability: UL 94 HB.
    Solderability: complies with IEC 68-2-20.
    Temperature range from: -30 °C to 80 °C.
    Dimensions (WxHxD): 26x31x35 mm.

    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
