ControlGo new
ORDER CODE: CONTROLGO
Share me

Immagine Principale
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • CONTROLGO
  • ControlGo  is the ultimately flexible, multi functional lighting controller. This incredibly versatile, simple to use tool combines a fixture remote, RDM Tool, CRMX transmitter, DMX controller and DMX recorder into a single, portable and durable device.

    Whether flashing out a film set, setting addresses on a tradeshow stand, or controlling battery uplighters, the ControlGO is THE device you need to get up and running quickly and easily.

    Taking power from a host of options - NP-F or V-Lock batteries, DC 12-48V or USB-C - you won't find a place you cant find some power.

    Featuring wired and CRMX wireless DMX & RDM, the ControlGO is compatible with up to 42 fixtures of any brand over 1 Universe. Its intuitive touchscreen interface, plus physical buttons and encoders, gives fast, easy and accurate access to its functions.

    From Film sets to events … Lights, Control, Go!

    Features:
    One Universe DMX Controller , RDM controller, DMX recorder, Remote UI
    5'' touchscreen with 4 RGB encoders and physical buttons for unprecedented user experience
    Signal output through XLR, Wireless CRMX, and remote UI connector

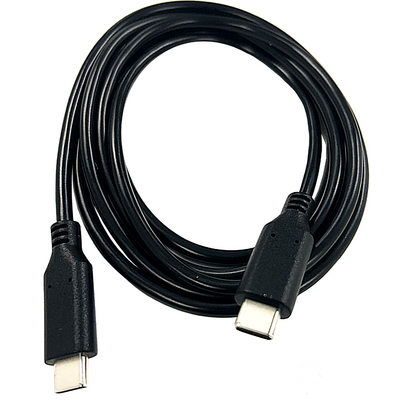

    Power sources: NPF batteries (batteries not included), V-mount adapter plate, 48V DC remote UI, 12-48V DC input through SF6-M 4p, USB type-C 5-12V power input (power cable not included)

    BODY
    • Hardware on-board:
      see available accessories
    • Body:
      sturdy policarbonate body
    • Body colour:
      black
    CONTROL
    • Protocols:
      CRMX+W-DMX, DMX512, RDM
    • DMX channels:
      512
      channel
    • Wireless Control:
      included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      5" Touch LCD
    • Firmware upgrade:
      yes,via USB pen drive, onboard memory or DMX interface (UPBOXPRO/UPBOX1) not included
    • Other:
      4 rotary push-encoders with RGB backlight
    ELECTRICAL
    • Low Voltage DC mains:
      12-48V via DC IN, 48V via Remote Connector, 5-9-12-20V via PD3.0 over USB-C, 7.2V via battery slots
    • Max power consumption:
      8
      W
    BATTERY
    • Battery:
      7.2
      V
      NP-F550/F570/F750/F770/F960/F970 type battery or V-Mounts (14.4V) via dedicated accessory
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      passive cooling and fan-free
    • Signal connection:
      Seetronic XLR 5p OUT connector
    • Low Voltage DC connector:
      Weipu SA6(12-48V), Weipu SA12 (48V - RemoteConnector), USB type C PD3.0, Battery slots
    • Weight:
      0.6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, RCM, FCC, cTUVus
    BOX CONTENT
    • 1 x CONTROLGO
    • 1 x CTRGEVACASE
    • 2 x CTRGHANDLE
    • 1 x CTRGNL
    • 1 x User manual
    Accessory Code
    Description
    include

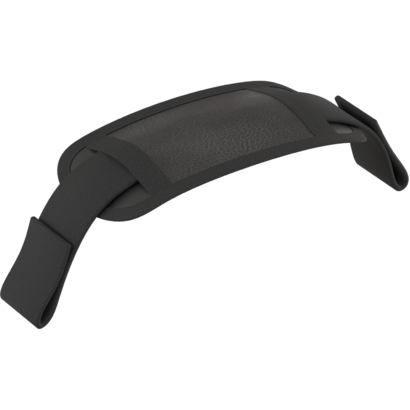

    Soft handle for CONTROLGO (1pcs)
    optional

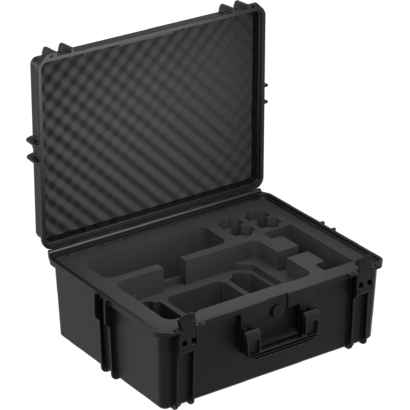

    Empty ABS case for CONTROLGO
    optional

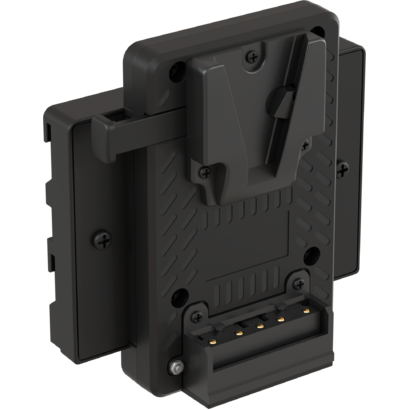

    V-Mount adapter for CONTROLGO
    optional

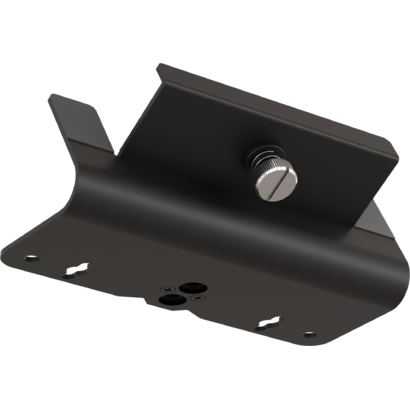

    Quick mount plate for CONTROLGO
    optional

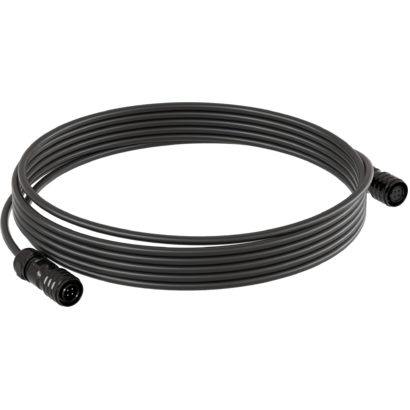

    WEIPU SA12 7,5 m cable for CONTROLGO
    include

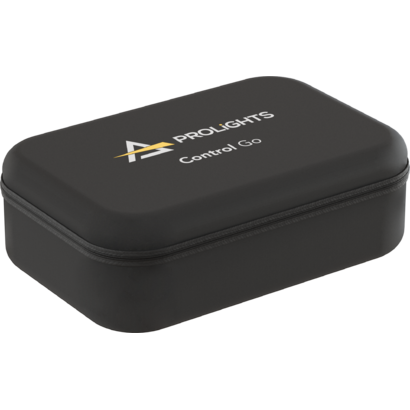

    Eva Case for CONTROLGO
    include

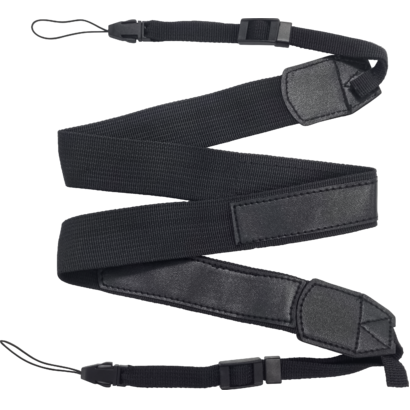

    Neck lanyard with double balancing and adjustable side strips for CONTROLGO
    optional

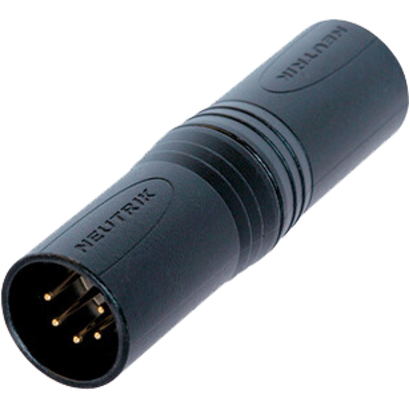

    5 pole XLR male - 5 pole XLR male adapter, black finishing
