DIGIBAR160
ORDER CODE: DIGIBAR160
Share me

Immagine Principale
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160
  • DIGIBAR160

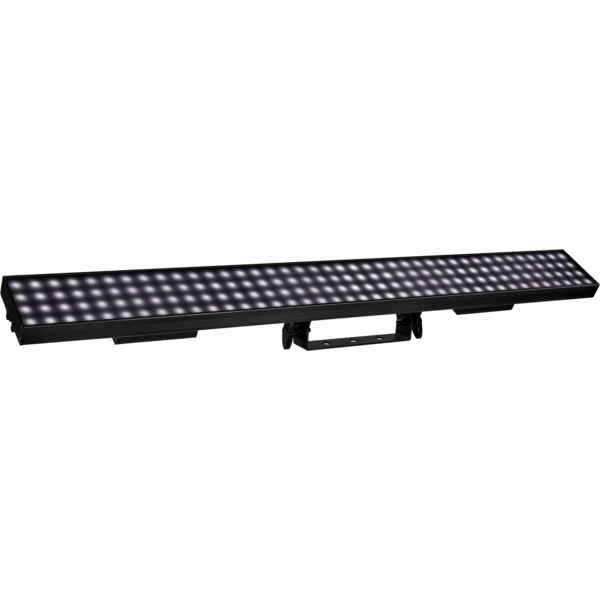

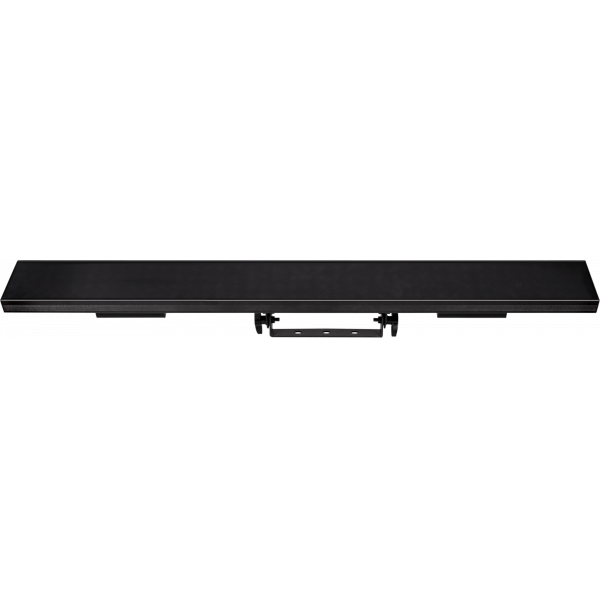

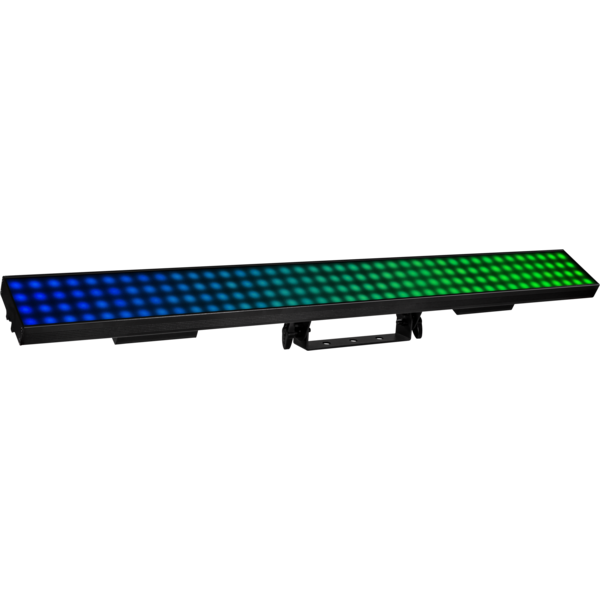

  • DIGIBAR160 is a LED video batten for the rental market with 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). The external control unit DIGIDRIVER is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 poles cable that provides greater stability and connection in a daisy chain (up to 6 DIGIBAR).

    Features:
    40x4 (160 total) SMD5050 RGB / FC high-efficiency LED
    Pixel pitch: 25 mm
    Viewing angle: 120°
    Luminous flux: black cover: 540,20 nit - white cover: 2'160,80 nit - transparent cover: 2'586,20 nit
    Art-Net and Kling-Net control protocol supported

    LIGHT SOURCE
    • Source:
      4x40x0,25
      W
      SMD5050 RGB LEDs
    • Luminous flux:
      black cover: 540,20 nit - milky cover: 2'160,80 nit - transparent cover: 2'586,20 nit
    • Source life expectancy:
      > 50.000 h
    OPTICS

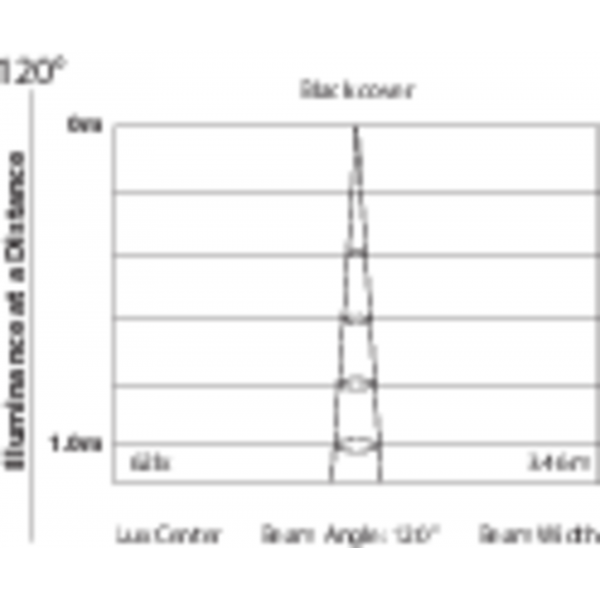

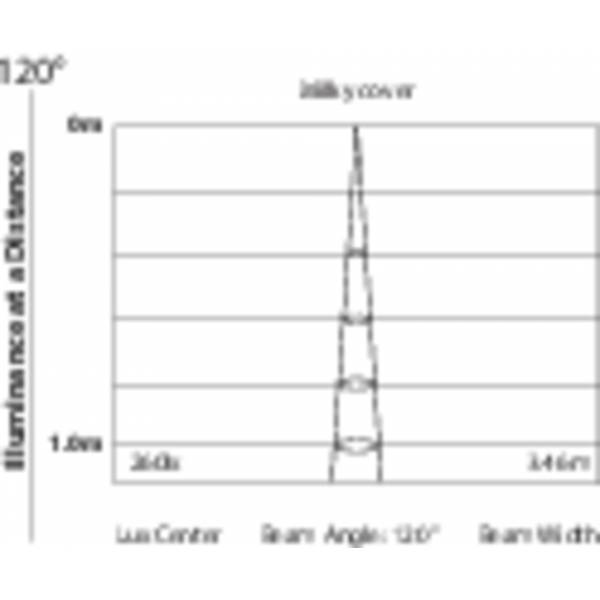

    • Field angle:
      120
      °
    • Pixel pitch:
      25
      mm
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    BODY
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    • Body:
      sturdy aluminum profile
    • Body colour:
      black
    CONTROL
    • Control units:
      DIGIDRIVER (optional)
    • Art-Net channels:
      480
      ch
    • Protocols:
      Art-Net, Kling-Net
    • Pixel control:
      pixel2pixel control
    ELECTRICAL
    • Mains power supply:
      DC 36V
    • Max power consumption:
      60
      W
    • Output (at 230V):
      6
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Suspension and fixing:
      bracket for truss rigging and hardware for connection of more units

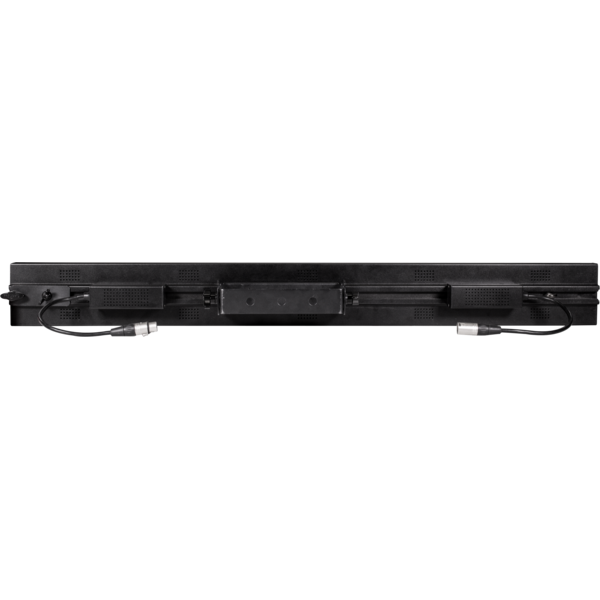

    • Signal connection:
      XLR 4p IN/OUT connectors

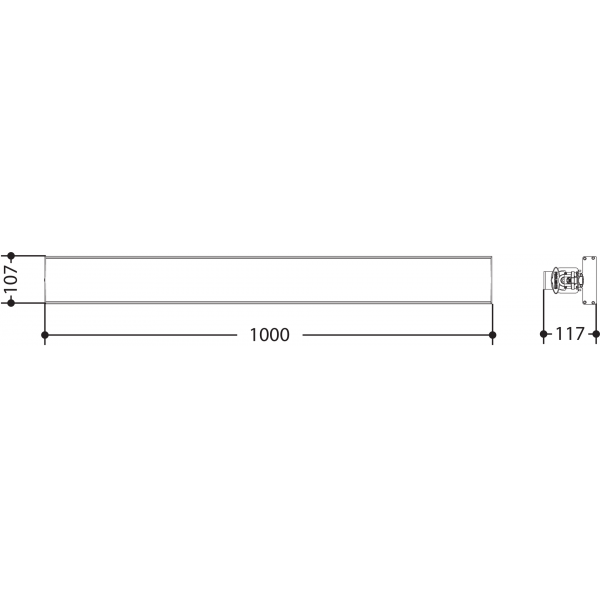

    • Dimensions (WxHxD):
      1.000x107x117
      mm
    • Weight:
      3,7
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x DIGIBAR160
    • 1 x 1 meter XLR 4p cable
    • User Manual
