Dot QPack

Share me

Dot QPack

	Code	Housing										Avail.
	DOTQPACKMR	Mirror

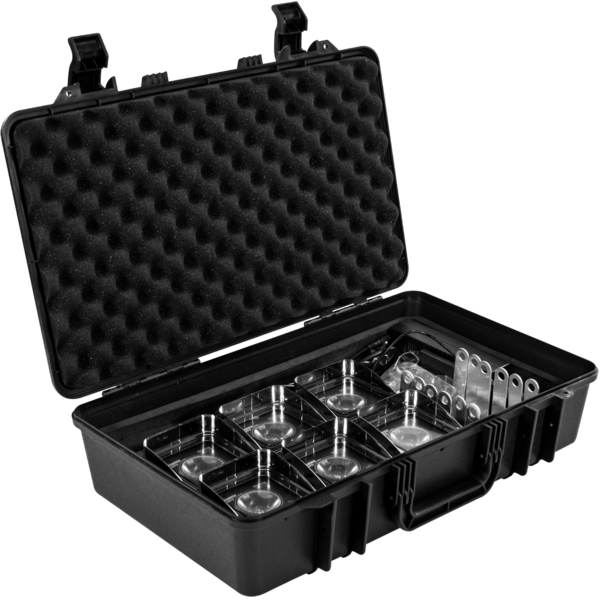

Dot QPack is a bundle composed by 6pcs of Dot Q, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. Dot Q is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. The compact form factor and chrome finish allow it to be used anywhere that needs a “little lift” to finish off the perfect event design.

Dot QPack include:

6 x hanging bracket

12 x air suckers
6 x eye bolt
6 x magnetic frost filter
6 x top hat
1 x IR controller
1 x battery charger for 6 Dot Q
24 pcs rubber feet
adjustable foot support

Features:
Even, powerful saturated and pastel colours from single 15W RGBW LED.
Chrome finish, ultra-compact size and IP65 rating for incredible versatility.
Dot QPack option including ABS flight case containing 6 fixtures, charging station, top hats, magnetic frost filters, IR controller, eye bolts, suction cups, yokes.

LIGHT SOURCE

Source:

1x15
W

RGBW LED
Luminous flux:

550
lm
Lux:

710
lx

@3 m full
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

15
°
Field angle:

23
°
Additional optics:

Magnetic Frost filter included for wider diffusion

COLOUR SYSTEM

Colour mixing:

RGBW / FC
White presets:

2.800-9.000
K
Colour wheel:

virtual colour wheel with macros
Macros:

built-in white presets

DYNAMIC EFFECTS

Static colour mode:

selection of static colour
Manual colour mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

BODY

Hardware on-board:

air suckers, eye bolts, top hat, rubber feets (included in DOTQPACK)
Tilt angle:

°

adjustable foot support for tilt regulation (up to 20°)
Body:

sturdy policarbonate body
Body colour:

mirror finishing

CONTROL

Protocols:

W-DMX, RDM
DMX channels:

5 / 9
channel
W-DMX:

included, wireless solution receiver
RDM:

RDM ready for remote monitoring and settings
Display:

3 chars display
IR:

infrared remote controller for simple control, addressing and settings

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Strobe / shutter:

1-25

Hz, electronic
Operating temperature:

0° ~ +35°
LED Control:

flicker free operation

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz

BATTERY

Battery:

11,1
V

lithium
Estimated battery life in colour change mode up to:

16
h
Estimated battery life in full-mode up to:

6
h
Re-charge connection:

power cable fast-charge in pelican case
Re-charge time:

3
h/max
Battery status:

LED battery status indicator

PHYSICAL

Cooling:

passive cooling and fan-free
Suspension and fixing:

bracket for hanging and positioning
IP rating:

IP65 (front) - IP54 (bottom)
Dimensions (WxHxD):

520x125x320
mm
Weight:

6
kg

BOX CONTENT

1 x ABS pellican case
6 x DOTQ
1 x DOTQIRC
6 x hanging brackets
12 x air suckers
6 x eye bolt
6 x magnetic frost filters
6 x top hat
24 x rubber feets
1 x 6 ways battery charger
1 x 1,5 meters SCHUKO - IEC power cable
User Manual

ITEMS REF.

Accessory Code

Description

DOTQPACK (include)

DOTQIRC

IR remote controller for DOTQ

DOTQPACK (optional)

DOTQ

Battery LED dot, 1x15W RGBW/FC, WDMX, 6h-14h auton., IP65, 0,6 kg, 15°,
