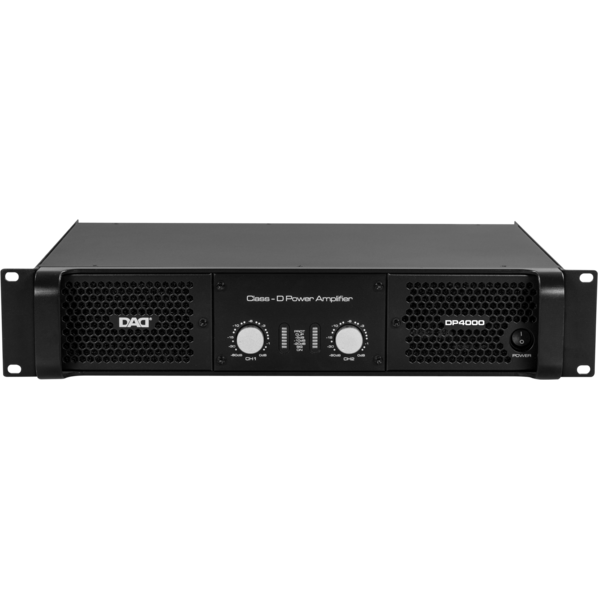

  • The innovative DAD’s D-class DP amplifiers series uses an advanced design that drastically reduces the weight and dissipation of heat. Efficiency between energy consumption and output available the power is 95%. The amplifiers of DP series are designed with a new high audio resolution D-class typology.

    These revolutionary amplifier series provide a superior quality sound and an unequalled reliability. Protection circuits allow greater efficiency under difficult loads and power conditions. In other words, an amplifier that doesn’t hurt nor your budget nor your back!

    Features:
    With a single channel power of 1000/1750 W 8/4 Ohm, new DP4000 Class D is the best solution for sound applications that require a multi-channel amplifier of average power with a great sound at affordable price.
    Thanks to Universal technology, regulated switch mode with PFC (Power Factor Correction) it allows performances with supply voltages from 90V to 260V.

    AMPLIFIER
    • Channels:
      2
    • Circuit class:
      digital
    OUTPUT
    • Single channel power:
      1000/1750
      W
      8/4 Ohm
    • Bridge mode power:
      3500
      W
      8 Ohm
    AUDIO SPECIFICATIONS
    • Frequency responce:
      20 - 20000
      Hz @ 8 Ohm
      (±0.5 dB)
    • THD+N:
      <0.15
      %
    • Slew rate:
      >10
      V/μs @ 8Ω
    • Damping factor:
      >500
    • Input impedance:
      10
    • Signal/Noise rate:
      >100
      dB
    POWER SUPPLY STAGE
    • Type:
      Universal, regulated switch mode with PFC
    • Operating voltage/frequency:
      100-240V ±10%, 50-60Hz
    PROTECTIONS
    • Output:
      Soft-start, short circuit, DC, overheat
    • Input:
      Clip/limit, progressive volume
    FUNCTIONS
    • Input mode:
      stereo, parallel, bridge / limiter
    • Input sensitivity/gain:
      1Vrms/32dB/38dB
    INDICATORS
    • Indicators:
      2 x LED bar - signal level, and over temperature protection
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR in/out
    • Output signal:
      2 x 4 pole, binding post
    • Power connection:
      VDE
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Dimensions (WxHxD):
      483x89x305
      mm
    • Rack unit:
      2
    • Weight:
      7.3
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
