DPX2060
Share me

Immagine Principale
  • DPX2060
  • DPX2060

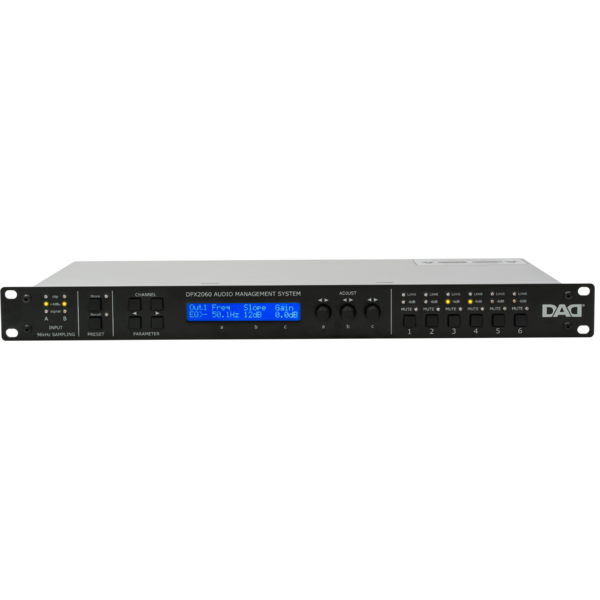

    • DAD DPX2060 is a digital processor designed to control PA systems in touring applications or in fixed installations, featuring 2 Input and 6 Output channels, 32-bit (40-bit extended) floating point processor and high-performance 24-bit analog converters.
    • High resolution DSP (Digital Signal Processor) prevents noise and distortion due to truncation errors typical of ordinary 24-bit fixed-point devices.
    • DPX2060 has a wide range of controls, including In/Out levels, delay, polarity, 6 bands of parametric equalizer per channel, selection through more crossover slopes, advanced limiter adjustment (attack/release time triggering).
    • 1Hz resolution allows more accurate control over frequency.
    • Input and Output channels can be routed in multiple configurations, allowing stereo, mono or “distribution mixer” modes.
    • DPX2060 can be setup and programmed in real-time through the front panel or the Windows-compatible software accessed via USB interface. Ethernet interface (optional) allows connection and control of more units in larger installations, supported by the software controlling up to 16 units.
    • New software and firmware upgrades can be downloaded into DPX2060 to keep it updated with new algorithms and functions.
    • DPX2060 has several options allowing advanced protection and locking of settings and programs.
    • Internal memory saves up to 45 presets which can then be recalled and stored from/to computer hard-drive.
    TECHNICAL DATA DPX2060
    Product Type Digital Audio Processor
    Outputs 3 way stereo, 6 way mono
    Max Input Level +20dBu
    Frequency Response 10Hz to 40kHz, +/-3dB (filters disabled)
    20Hz to 20kHz, +/-0.5dB (filters disabled)
    Distortion <0.01%, (+10dBu, 20Hz to 20kHz, 30kHz bandwidth
    Resolution 24-bit
    Sampling rate 96 kHz
    A/D - D/A Converters 24-bit
    Gain OUT +20dB to -80dB and mute, 0.2dB steps
    Delay Input 400ms, output 80ms
    Crossover Filters
    Bessel, Butterworth, Linkwitz-Riley, Hardman
    Crossover Filters Slope 12, 18 & 24dB/octave Bessel and Butterworth
    12, 24 and 48dB/octave Linkwitz Riley
    4th or 8th order Hardman
    EQ frequency 10Hz to 25kHz, 1/36 octave steps
    EQ gain +15dB to -15dB, 0.2dB steps
    EQ width 5.0 to 0.1 octaves bandwidth, 1/36 octave steps
    Limiter High performance limiter, adjustable threshold in 0.2dB steps
    automatic time costants
    Audio Connectors 3-pin XLR
    Power supply Universal switch-mode PSU, 90V to 264V AC, 47/63Hz
    Weight 2,7 Kg
    Dimensions (WxHxD) 482x44x254mm
    Product Code
    Accessory Code
    Description
    DPX2060 (optional)
    DPX2060NBDPX2060NB
    FINESTOCK
    USB/RS232 - RJ45 interface BvNet for DPX2060
    DPX2060 (optional)
    DPX2060NCDPX2060NC
    DISCONTINUED
    *Optional BvNet card for DPX2060
