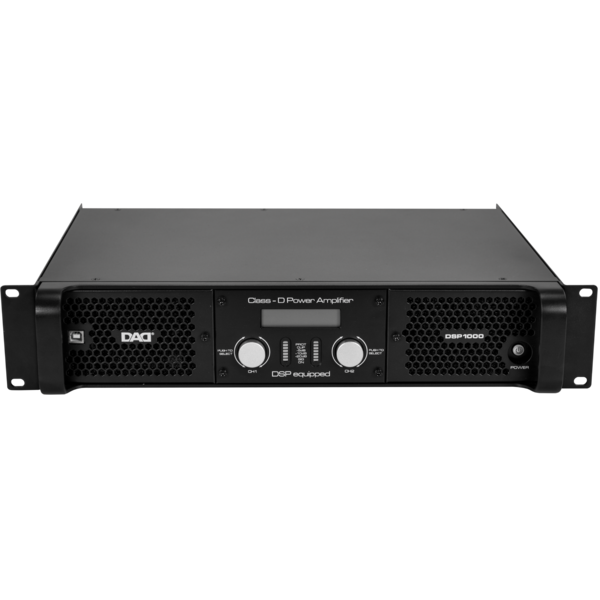

  • DSP1000
  • DSP1000
  • Reaching an output of 2x550W @40hm, employs SMPS technology for power supply stage e D-class for output stage, weighing 6kg only.
    Equipped with a 32/64 bit floating-point and 96kHz sampling rate DSP.
    Specifics preset for DAD loudspeakers available in the download section.
    These features make DSP1000 the right choice for professional loudspeakers and for Sub/MF/HF sections of multi-amplified systems.
    TECHNICAL DATA DSP1000
    8 Ohm stereo power (EIA/THD1%) 350Wx2
    4 Ohm stereo power (Pulse) THD1%) 550Wx2
    8 Ohm bridge power (Pulse THD1%) 1100W
    Frequency response 20Hz-20Khz@ 8 Ohm -0.5 dB
    THD+N <0.1%
    Damping factor >60
    S/N rate >96dB
    Input sensitivity/gain 1Vrms/32dB/38dB
    Input impedance (balance/unbalance) Balance 20K / Unbalance 10K
    Output circuit class D class
    Protection Soft-start, short circuit, overload, DC, overheat, clip/limit, progressive volume
    Cooling air-flow Airflow from front panel to rear panel.
    DSP specification
    Crossover filtering Bessel. Butt. Link.-Riley (12,18,24.48dB/Oct.)
    8- band Eq type Full paramtric, high shelf-low shelf (6-12dB/Oct.)
    EQ gain Adjustable from -20dB to +20dB
    Crossover/Eq freq. band 20Hz to 20kHz, 1/36Oct.step pitch (19980 position)
    Full parametric eq filter Q Adjustable from 0.404 to 28.852
    Maximum delay 1S
    Limiter threshhold Adjustable from +20dBu to -20dBu,0,1dBu steps
    Limiter release time Adjustable to 2/4/6/8/16/32 x the attack time
    Attack time Adjustable from 0.3 to 100 ms
    Power voltage / frequency ~230V 10%/50Hz
    Dimensions (WxHxD) 483x89x382mm
    Net weight 6 Kg
    Gross weight 7.2Kg
