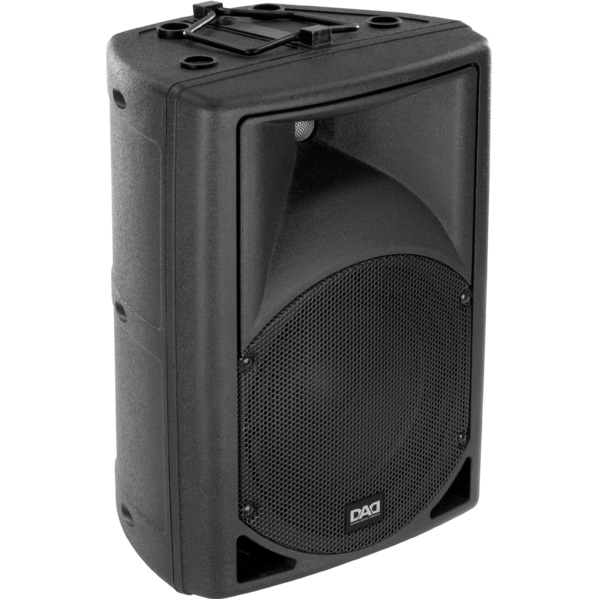

  • 100W-RMS Acoustic loudspeaker for Live and recorded applications
    • Excellent sound and high sound pressure into a compact and lightweight enclosure
    • 8'' woofer for reproduction of low-mid frequency range
    • The 1'' compression driver is mounted on a horn with 90°x50° dispersion angle
    • Cabinet designed for stage-monitor applications
    • Built-in anchoring system with threaded holes for suspension, 4 rubber feet for floor placement or stacking of more loudspeakers
    • 35 mm adapter for speaker stands
    Technical Data EVENT8
    System type Passive – 2 way
    Built-in amp (W/RMS)
    AES / Program Power 100W / 200W
    Recommended amp up to 200W RMS/8Ohm
    Input impedance 8Ohm
    Coverage angle 90°x50° (HxV)
    Frequency response 80-20.000Hz (±3dB)
    Low frequency 8” woofer / 2.5” coil
    High frequency 1” driver / 1.3” coil
    Input sensitivity 93dB @1W/1m (Free Field)
    Max SPL-Cont./Peak 113/119dB (Free Field)
    Crossover frequency 3300Hz
    User controls
    Protection HF signal compression
    Trapezoidal taper 45°
    Connections 4 poles in/out connectors
    AC Input
    Weight 9kg
    Dimensions (WxHxD) 290x420x225mm
    ITEMS REF.
    Accessory Code
    Description
    EVENT8 (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
    EVENT8 (optional)
    IKOS15P (optional)
    IKOS12P (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    EVENT10 (optional)
    EVENT10A (optional)
    LIVE15 (optional)
    LIVE15A (optional)
    LIVE10 (optional)
    LIVE10A (optional)
    LIVE12A (optional)
    LIVE12 (optional)
    M8x25mm. Eye-bolt suitable for suspension of loudspeakers
