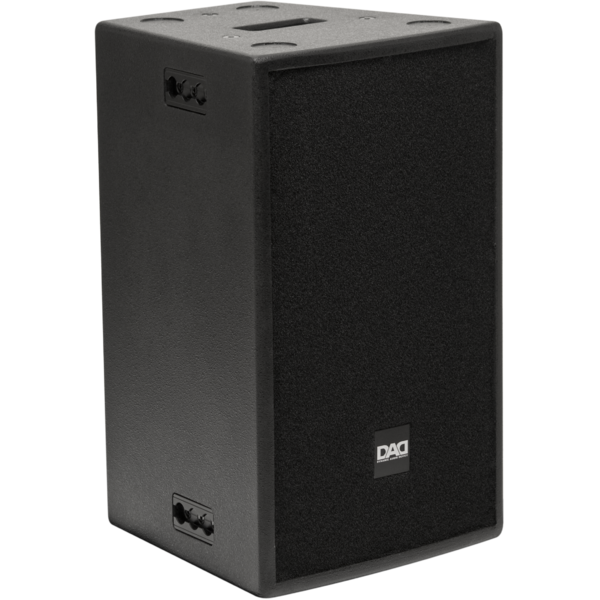

FUSION10P
Share me

Immagine Principale
  • FUSION10P
  • FUSION10P
  • FUSION10P
  • FUSION10P
  • 2-way passive loudspeakers, 250W AES, 124db SPL

    Features:
    Low frequency: 10'' woofer/2.6''v.c.
    High frequency: 1'' driver/1.7''v.c.
    Frequency response: 70-18000 Hz (±3dB)
    Reproduction of voice and music for live and recorded performances
    Birch plywood enclosure
    For sound installations in environments requiring dynamics and sound pressure

    LOUDSPEAKER
    • System type:
      passive 2 way
    COMPONENTS
    • Low frequency:
      10
      ''
      woofer/2.6''v.c.
    • High frequency:
      1
      ''
      driver/1.7''v.c.
    FEATURES
    • AES/program power:
      250/500
      W
    • SPL max:
      124
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      94
      dB
      @1W/1m (free field)
    • SPL cont/peak:
      118/124
      dB
      @1m (free field)
    • Frequency response:
      70-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      90x70
      °
    • Cross over frequency:
      2000
      Hz
    • Protection:
      H.F. signal compression
    • Recommended amplifier up to:
      500
      W
      /8Ohm
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      15
      mm
      birchplywood
    • Sospension system:
      6 point M8
      eyebolt, fly track, 35 mm pole mount
    • Angle:
      10
      °
      trapezoidal taper
    • Handles:
      2 on side
    PHYSICAL
    • Dimensions (WxHxD):
      304x495x300
      mm
    • Weight:
      15
      kg
    Product Code
    Accessory Code
    Description
    FUSION10P (optional)
    STAGE10 (optional)
    STAGE12 (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    FUSION15MP (optional)
    FLYTRACK1-150FLYTRACK1-150
    DISCONTINUED
    *Steel rope (6mm diam.) for suspension, ACCA5462 incl., 50cm L
    FUSION10P (optional)
    ROAD10 (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Steel rope (6mm diam.) for suspension, ACCA5452 incl., 30cm L
    FUSION10P (optional)
    TOURING215P (optional)
    TOURING12MP (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Steel rope (6mm diam.) for suspension, ACCA5452 incl., 30cm L
    FUSION10P (optional)
    TOURING215P (optional)
    TOURING12MP (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Steel rope (6mm diam.) for suspension, ACCA5452 incl., 50cm L
    FUSION10P (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    Zinc-plated steel eye-bolt and hook, for suspension of loudspeakers
    FUSION10P (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
