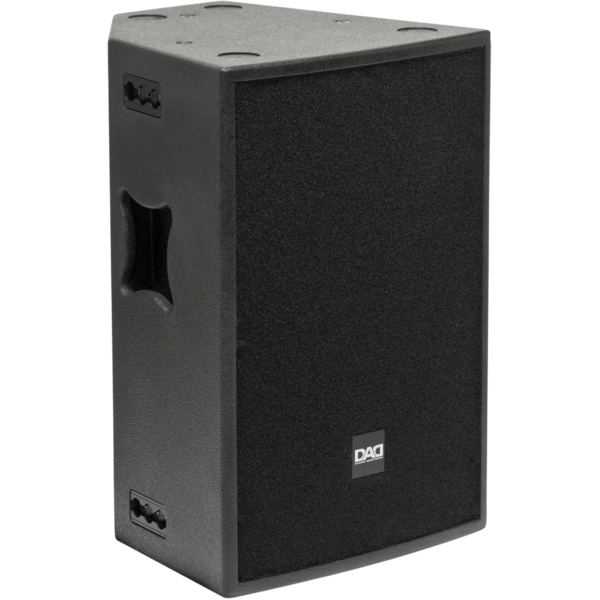

FUSION12P
Condividimi
Immagine Principale
  • FUSION12P
  • FUSION12P
  • FUSION12P
  • FUSION12P
  • FUSION12P
  • Diffusore passivo a 2 vie, 300W AES, 129db SPL



    Features:
    Low frequency: 12'' woofer/3''v.c.
    High frequency: 1'' driver/1.7''v.c.
    Frequency response: 65-18000 Hz (±3dB)
    Reproduction of voice and music for live and recorded performances
    Birch plywood enclosure, designed for stage-monitor application
    For sound installations in environments requiring dynamics and sound pressure

    CARATTERISTICHE FISICHE
    • Dimensioni (LxAxP):
      361x530x367
      mm
    • Peso:
      23
      kg
    DIFFUSORI
    • Sistema:
      passivo 2 vie
    COMPONENTI
    • Basse frequenze:
      12
      ''
      woofer/3''v.c.
    • Alte frequenze:
      1
      ''
      driver/1.7''v.c.
    SPECIFICHE ACUSTICHE
    • Sensibilità:
      98
      dB
      @1W/1m (campo libero)
    • SPL cont/peak:
      123/129
      dB
      @1m (campo libero)
    • Frequency response:
      65-18000
      Hz
      (±3dB)
    • Dispersione HxV:
      90x70
      °
    • Frequenza di cross over:
      1700
      Hz
    • Protezione:
      compressione sulle H.F.
    • Amplificatore raccomandato fino a:
      600
      W
      /8Ohm
    CONNETTORI INGRESSI USCITE
    • Segnale d'ingresso:
      4poli IN/OUT
    COSTRUZIONE DEL CABINET
    • Materiale cabinet:
      15
      mm
      multistrato di betulla
    • Sistema di sospensione:
      6 point M8
      golfare, fly track, supporto per stativo 35 mm
    • Angolo cabinet:
      10 - 40
      °
      utilizzo stage monitor
    • Maniglie:
      2 sui lati
    CARATTERISTICHE
    • AES/program power:
      300/600
      W
    • SPL max:
      129
      dB
      @1m (campo libero)
