FUSION15A
Condividimi

Immagine Principale
  • FUSION15A
  • FUSION15A
  • FUSION15A
  • FUSION15A
  • FUSION15A

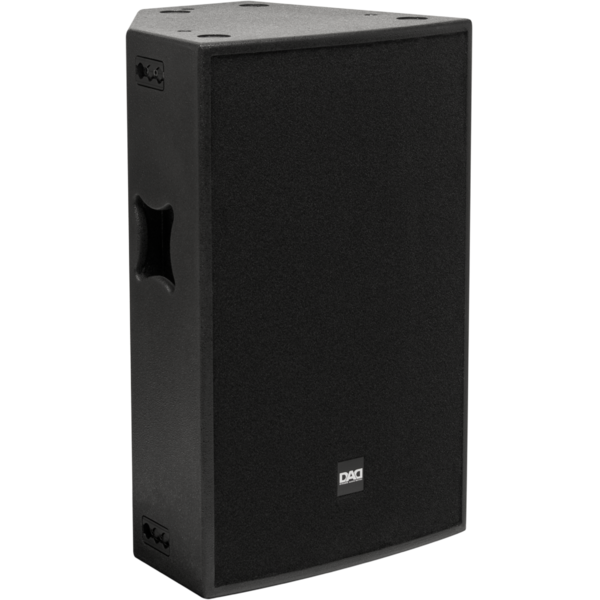

  • Diffusore attivo bi-amplificato in classe D+AB, 2 vie 350W+70W, 128db SPL





    Features:
    Basse frequenze: 15 '' woofer / 3''v.c.
    Alte frequenze: 1 '' driver / 1.7''v.c.
    Risposta in frequenza: 45-18000 Hz (± 3dB)
    Controlli utente: microfono, linea, master, eq LF-HF
    Riproduzione di voci e musica per spettacoli dal vivo e registrati
    Cabinet in multistrato di betulla
    Per installazioni sonore in ambienti che richiedono elevata dinamica e pressione sonora

    DIFFUSORE
    • Sistema:
      attivo 2 vie
    COMPONENTI
    • Basse frequenze:
      15
      ''
      woofer/3''v.c.
    • Alte frequenze:
      1.4
      ''
      driver/3''v.c.
    CARATTERISTICHE
    • Built-in amp LF/HF:
      350+70
      W
    • SPL max:
      128
      dB
      @1m (campo libero)
    SPECIFICHE ACUSTICHE
    • SPL cont/peak:
      122/128
      dB
      @1m (campo libero)
    • Frequency response:
      45-18000
      Hz
      (±3dB)
    • Dispersione HxV:
      90x40
      °
    • Frequenza di cross over:
      1500
      Hz
    ELETTRONICHE
    • Amplificazione:
      digitale + classe AB
    • Potenza:
      350+70
      W
      /4/8Ohm
    • Sensibilita di ingresso:
      +4 dBu (1,228Vrms) variabile
    • Protezioni:
      Limit. veloce, temperatura
    • Controlli utente:
      mic, line, master, eq LF-HF
    • Processore:
      analogico
    • Tensione di lavoro:
      220 V~240 V/50-60 Hz
    CONNETTORI INGRESSI USCITE
    • Segnale d'ingresso:
      XLR IN/OUT
    • Connessioni di alimentazione:
      VDE
    COSTRUZIONE DEL CABINET
    • Materiale cabinet:
      18
      mm
      multistrato di betulla
    • Sistema di sospensione:
      6 point M8
      golfare, fly track, supporto per stativo 35 mm
    • Angolo cabinet:
      10 - 40
      °
      utilizzo stage monitor
    • Maniglie:
      2 sui lati
    CARATTERISTICHE FISICHE
    • Dimensioni (LxAxP):
      448x668x400
      mm
    • Peso:
      32
      kg
    Codice Prodotto
    Codice Accessorio
    Descrizione
    FUSION15A (optional)
    STAGE10 (optional)
    STAGE12 (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    FUSION15MP (optional)
    Fune in acciaio per sosp. diffusori, 50 cm, diam.6mm completo 1 golfare ACCA5452
    FUSION15A (optional)
    ROAD10 (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Fune in acciaio per sosp. diffusori, 30 cm, diam.6mm completo 1 gancio ACCA5452
    FUSION15A (optional)
    TOURING215P (optional)
    TOURING12MP (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Fune in acciaio per sosp. diffusori, 30 cm, diam.6mm completo 2 ganci ACCA5452
    FUSION15A (optional)
    TOURING215P (optional)
    TOURING12MP (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Fune in acciaio per sosp. diffusori, 50 cm, diam.6mm completo 2 ganci ACCA5452
    FUSION15A (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    Golfare di ancoraggio ad incastro, in accaio zincato, per sospensione diffusori
    FUSION15A (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    Golfare di ancoraggio ad incastro, in accaio zincato, per sospensione diffusori
    FUSION15A (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    Supporto a parete regolabile, orizz. verticale., per diffusori, port max. 60kg

    Firmware

    Ottieni il massimo aggiornando il tuo prodotto.
    Assicurati di avere sempre il tuo prodotto aggiornato alle più recenti versioni software / hardware per ottenere il miglior risultato dalle tue tecnologie e dal tuo show.
    Raccogliendo feedback dagli utenti, aggiungiamo costantemente nuove funzionalità, migliorando prestazioni tecniche e semplicità d'uso.
    Contatta con il nostro team per maggiori informazioni o assistenza.

    Drawings

    Certificates & Declarations

    Richiesta Certificazioni FUSION15A
    TUV Rheinland of North America
    CE

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    User Manuals

    Manuale in Italiano/IngleseDownload
