FUSION15P
Condividimi

Immagine Principale
  • FUSION15P
  • FUSION15P
  • FUSION15P
  • FUSION15P
  • FUSION15P

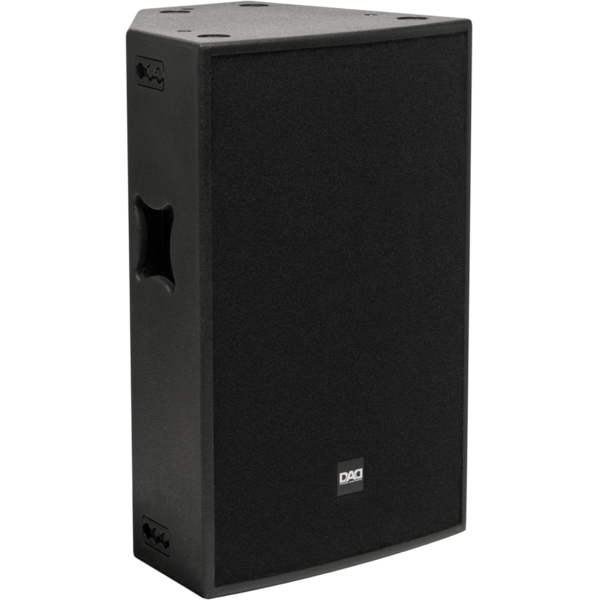

  • Diffusore passivo a 2 vie, 350W AES, 129db SPL



    Features:
    Basse frequenze: 15 '' woofer / 3''v.c.
    Alte frequenze: 1 '' driver / 1.7''v.c.
    Risposta in frequenza: 50-18000 Hz (± 3dB)
    Controlli utente: microfono, linea, master, eq LF-HF
    Riproduzione di voci e musica per spettacoli dal vivo e registrati
    Cabinet in multistrato di betulla
    Per installazioni sonore in ambienti che richiedono elevata dinamica e pressione sonora

    DIFFUSORE
    • Sistema:
      passivo 2 vie
    COMPONENTI
    • Basse frequenze:
      15
      ''
      woofer/3''v.c.
    • Alte frequenze:
      1.4
      ''
      driver/3''v.c.
    CARATTERISTICHE
    • AES/program power:
      350/700
      W
    • SPL max:
      129
      dB
      @1m (campo libero)
    SPECIFICHE ACUSTICHE
    • Sensibilità:
      98
      dB
      @1W/1m (campo libero)
    • SPL cont/peak:
      123/129
      dB
      @1m (campo libero)
    • Frequency response:
      50-18000
      Hz
      (±3dB)
    • Dispersione HxV:
      90x70
      °
    • Frequenza di cross over:
      1500
      Hz
    • Protezione:
      compressione sulle H.F.
    • Amplificatore raccomandato fino a:
      700
      W
      /8Ohm
    CONNETTORI INGRESSI USCITE
    • Segnale d'ingresso:
      4poli IN/OUT
    COSTRUZIONE DEL CABINET
    • Materiale cabinet:
      15
      mm
      multistrato di betulla
    • Sistema di sospensione:
      6 point M8
      golfare, fly track, supporto per stativo 35 mm
    • Angolo cabinet:
      10 - 40
      °
      utilizzo stage monitor
    • Maniglie:
      2 sui lati
    CARATTERISTICHE FISICHE
    • Dimensioni (LxAxP):
      448x688x400
      mm
    • Peso:
      30
      kg
    Codice Prodotto
    Codice Accessorio
    Descrizione
    FUSION15P (optional)
    STAGE10 (optional)
    STAGE12 (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION12MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    FUSION15MP (optional)
    Fune in acciaio per sosp. diffusori, 50 cm, diam.6mm completo 1 golfare ACCA5452
    FUSION15P (optional)
    ROAD10 (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Fune in acciaio per sosp. diffusori, 30 cm, diam.6mm completo 1 gancio ACCA5452
    FUSION15P (optional)
    TOURING215P (optional)
    TOURING12MP (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Fune in acciaio per sosp. diffusori, 30 cm, diam.6mm completo 2 ganci ACCA5452
    FUSION15P (optional)
    TOURING215P (optional)
    TOURING12MP (optional)
    TOURING15MP (optional)
    FUSION10A (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION12MP (optional)
    TOURING15P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    FUSION15MP (optional)
    TOURING112H (optional)
    TOURING112HP (optional)
    Fune in acciaio per sosp. diffusori, 50 cm, diam.6mm completo 2 ganci ACCA5452
    FUSION15P (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION12MP (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    Golfare di ancoraggio ad incastro, in accaio zincato, per sospensione diffusori
    FUSION15P (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION15A (optional)
    FUSION12MA (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION12P (optional)
    FUSION12MP (optional)
    FUSION10A (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING15P (optional)
    TOURING10A (optional)
    TOURING12A (optional)
    TOURING15A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING208A (optional)
    Golfare di ancoraggio ad incastro, in accaio zincato, per sospensione diffusori
    FUSION15P (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    Supporto a parete regolabile, orizz. verticale., per diffusori, port max. 60kg
