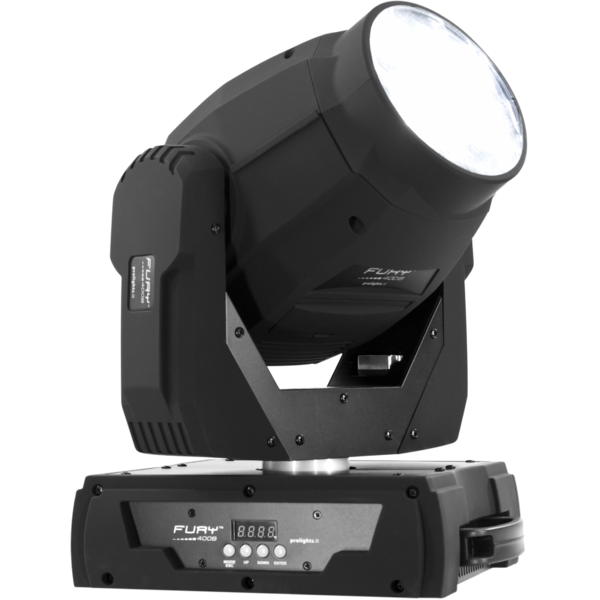

  • FY400B is a moving head BEAM based on a special LED optical system with a 1x75W white LED source. Despite the very compact sizes, FY400B is  one of the most powerful luminaires in its range, its light output can be compared to a MSR575 luminaire with Iris effect enabled.
    The optical unit is composed by a special smooth-surface lens, featuring a 7° highly concentrated parallel beam
    FY400B features a wide range of functions and effects, composed by 8 dichroic colour filters, 6 gobos, animation wheel, 3-facet prism and electronic focus for limitless effect combinations.
    FY400B is the perfect device to generate effect in the air, replacing the traditional long-throw projectors and the ACL par sets in medium sized light-shows.

    Light source and optics

    • 1 x 75W high-power white LED
    • Brightness: 35000 lux @5mt
    • Projection angle: 7°
    • High efficiency optical system with a smooth-surface lens to generate a parallel BEAM effect
    • LED average life span: >50'000 h

    Dimmer/Shutter/Strobo

    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 1-20 flash per second

    Colour system

    • Colour wheel with 8 dichroic filters + open (linear-stepless selection)
    • Rainbow effect with speed adjustment
    • Easy calibration and maintenance by magnetic repositioning

    Effects

    • Rotating gobo wheel: 6 static gobos + open
    • “Gobo-shake” effect and continuous rotation
    • Animations effects included on the gobo wheel
    • 3 facet prism effect, rotating, indexable, replaceable
    • Easy access to gobo wheel for replacement through slot-n-lock panel
    • Easy show: built-in programs with automatic/sound activated mode enabled by LCD control panel

    Electronics

    • User Interface: graphic LCD display to control unit DMX addressing, general settings
    • 2 DMX available configurations: 6 channels (8 bit) and 12 channels (16 bit) for advanced or basic control mode
    • Input and output signal through XLR 3p connector
    • Unit reset: through control panel or via DMX
    • Electronic self-test and check-up for diagnostics
    • Cooling: forced air, protection against overheating

    Structure and moving body

    • High resistance and flame retardant polymer case in black colour
    • Motion Angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit:
    • Pan = 2,10° Pan Fine = 0,008° Tilt = 1,05° Tilt Fine = 0,004°
    • Suspension and fixing: any possible working position through omega kit (included)

    Power supply

    • Power unit: 100-240V 50/60Hz
    • Max power consumption: 167W
    • Power output to link more units in a chain: up to 11 fixtures at 230V

    Weight and dimensions

    • Weight: 10,5 kg
    • Dimensions (WxHxD): 470x370x410 mm
