FZ10004
Share me

Immagine Principale
  • FZ10004
  • FZ10004
  • FZ10004

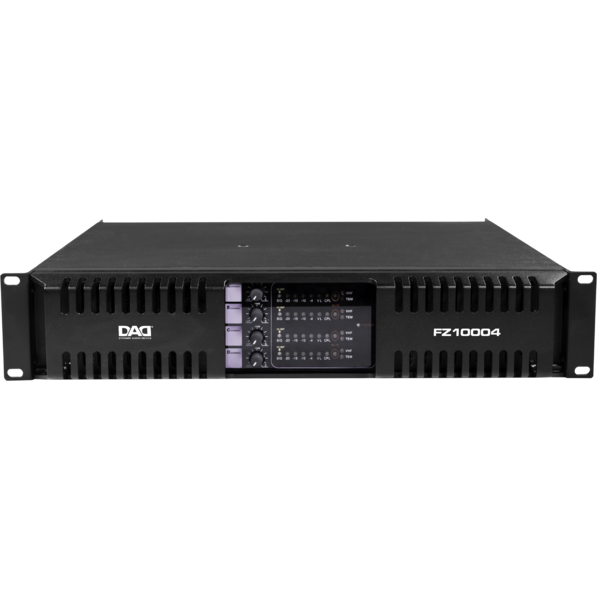

  • FZ10004 is a 4ch amplifier capable to deliver 4x2500W @2Ohm and 4x2100W @4Ohm, in 2U rack mount only. These features make it ideal for professional full-range speakers and in multi-amplified system characterized by wide dynamics and high performance. The FZ amplifiers series uses the technology of amplification in Class I with SMPS power stage. The operation in Class I is based on a continuous and automatic adjustment of the value of the supply voltage of the final stage. This optimizes the efficiency up to 85%, reducing the weight and heat dissipation compared with other amplifiers which deliver same output.

    The models of FZ series are able to operate with loads from 2Ohm and are equipped with an extensive set of protection circuits to satisfy the higher reliability parameters with a high-quality profile for fixed and mobile sonorizations.

    Features:
    Channels: 4
    Circuit class: Analog I class
    Single channel power: 1300/2100/2500 W 8/4/2 Ohm
    Bridge mode power: 2x5000 W 4 Ohm
    Rack unit: 2
    Weight: 13.50 kg

    AMPLIFIER
    • Channels:
      4
    • Circuit class:
      analog I class
    OUTPUT
    • Single channel power:
      1300/2100/2500
      W
      8/4/2 Ohm
    • Bridge mode power:
      2x5000
      W
      4 Ohm
    AUDIO SPECIFICATIONS
    • Frequency responce:
      6.8 - 34000
      Hz @ 8 Ohm
      (-3 dB)
    • THD+N:
      <0.05
      %
    • Slew rate:
      >20
      V/μs @ 8Ω
    • Input impedance:
      20
    • Signal/Noise rate:
      >112
      dB
    POWER SUPPLY STAGE
    • Type:
      Switching
    • Operating voltage/frequency:
      220 V ±10%, 50Hz
    PROTECTIONS
    • Output:
      Voltage limiter, soft-start, short circuit, DC, overheat, VHF, LHF, power limiter
    FUNCTIONS
    • Input mode:
      bridge
    • Input sensitivity/gain:
      23/26/29/32/35/38/41/44dB
    INDICATORS
    • Indicators:
      4 x LED bar signal level and protection functions
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR in
    • Output signal:
      4 x 4 pole out
    • Power connection:
      PowerCON
    PHYSICAL
    • Cooling:
      forced air with low noise fan
    • Dimensions (WxHxD):
      482x88x430
      mm
    • Rack unit:
      2
    • Weight:
      13.50
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
