GSTOWER100
Share me

Immagine Principale
  • GSTOWER100
  • GSTOWER100

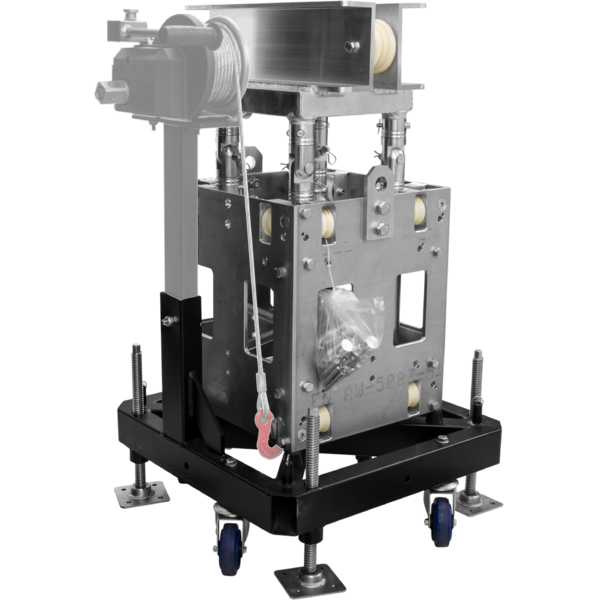

  • GSTOWER100, powertruss ground support system, duly designed with the sturdy TQ30 (4mm) truss series to ensure a double load compared to traditional systems

    Features:
    Base module made in zinc-plated steel, compatible with TQ30 series equipped with:
    4 wheels, 4 reinforcing arms for bracing and 8 adjustable stabilisers allowing for positioning on inclined and irregular surfaces
    4 diagonal bracing on the arms
    4 swivelling spigot connection for lifting tower
    Sliding sleeve-block compatible with SQ40/HQ40 e SQ30/HQ30 systems.
    Lifting systems (optional):
    Manual winch, electric motor, manual chain hoist, sliding on 16 wheels

    TECHNICAL INFORMATION
    • Tower truss:
      TQ30 (1x300 cm, 2x200 cm, 1x60 cm)
    • Tower truss materials:
      50x4 mm (main tubes), 20x2 mm (braces)
    • Max load:
      1000
      kg
    • Max height:
      7,6
      mt
    • Base area (open):
      200x200
      cm
    • Base area (folded):
      62x62
      cm
    • Compatible truss:
      SQ40/HQ40/SQ30/HQ30
    • Tower weight:
      120
      kg
    Product Code
    Accessory Code
    Description
    GSTOWER100 (optional)
    SRS (optional)
    SRA (optional)
    SRD (optional)
    Manual winch for GSTOWER1, 900kg max loading, GSTOWER1 compatible
    GSTOWER100 (optional)
    HQ/SQ quick connection kit, 4 h.spigots, pins, springs, compatible GSTOWER100
    GSTOWER100 (optional)
    ALS34/ALH34 quick connection kit, 4 h.spigots, pins, springs, GSTOWER100
