HQ30
PROTRUSS

HQ30

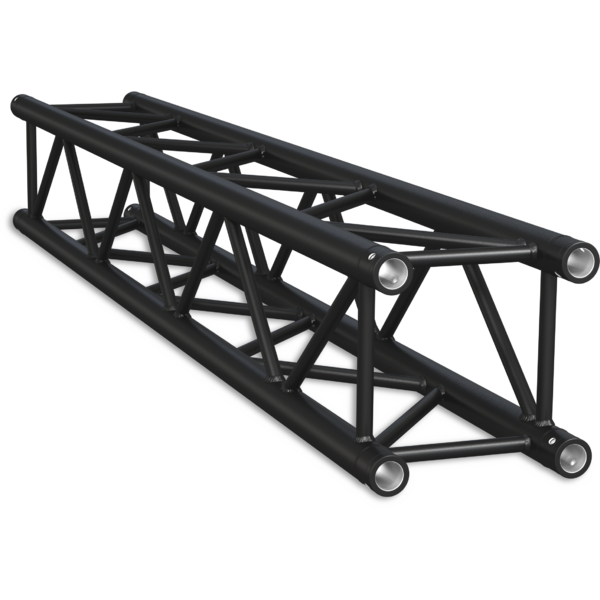

Heavy square section aluminium truss with 29cm sides

Main features:

  • Lengthwise: extruded tubes, Ø 50x3 mm, EN AW 6082 T6.
  • Diagonal: extruded tubes, Ø 20x2 mm, EN AW 6082 T6.
  • Plate: conical quick-lock connectors.
  • Fast connection kit FCQ5 included.

PHOTO GALLERY

Technical specifications

Versions

Code
Tube (mm)
Diagonal (mm)
W (mm)
H (mm)
D (mm)
Weight (kg)
Volume (m³)
Color
HQ30021
HQ30021
50x3
20x2
210
290
290
1,70
0,017
AL
HQ30021B
HQ30021B
50x3
20x2
210
290
290
1,70
0,017
BK
HQ30025
HQ30025
50x3
20x2
250
290
290
2,05
0,021
AL
HQ30025B
HQ30025B
50x3
20x2
250
290
290
2,05
0,021
BK
HQ30029
HQ30029
50x3
20x2
290
290
290
2,40
0,024
AL
HQ30029B
HQ30029B
50x3
20x2
290
290
290
2,40
0,024
BK
HQ30050
HQ30050
50x3
20x2
500
290
290
4,10
0,042
AL
HQ30050B
HQ30050B
50x3
20x2
500
290
290
4,10
0,042
BK
HQ30100
HQ30100
50x3
20x2
1000
290
290
7,10
0,084
AL
HQ30100B
HQ30100B
50x3
20x2
1000
290
290
7,10
0,084
BK
HQ30150
HQ30150
50x3
20x2
1500
290
290
10,60
0,126
AL
HQ30150B
HQ30150B
50x3
20x2
1500
290
290
10,60
0,126
BK
HQ30200
HQ30200
50x3
20x2
2000
290
290
13,70
0,168
AL
HQ30200B
HQ30200B
50x3
20x2
2000
290
290
13,70
0,168
BK
HQ30250
HQ30250
50x3
20x2
2500
290
290
16,70
0,210
AL
HQ30250B
HQ30250B
50x3
20x2
2500
290
290
16,70
0,210
BK
HQ30300
HQ30300
50x3
20x2
3000
290
290
19,0
0,252
AL
HQ30300B
HQ30300B
50x3
20x2
3000
290
290
19,0
0,252
BK
HQ30350
HQ30350
50x3
20x2
3500
290
290
17,88
0,294
AL
HQ30350B
HQ30350B
50x3
20x2
3500
290
290
17,88
0,294
BK
HQ30400
HQ30400
50x3
20x2
4000
290
290
24,90
0,336
AL
HQ30400B
HQ30400B
50x3
20x2
4000
290
290
24,90
0,336
BK

Accessories & Related Products

FCQ5
FCQ5
(Included)
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40

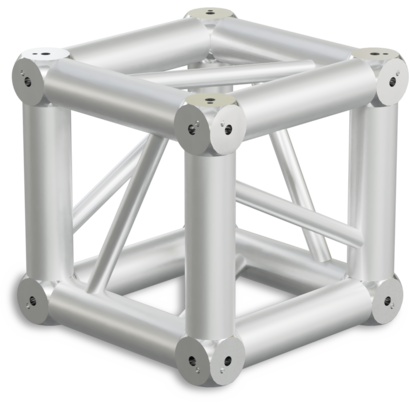

HQ30K8
HQ30K8
(Optional)
6 way DADO module, HQ30 series compatible, 2x FCQ5K8 included

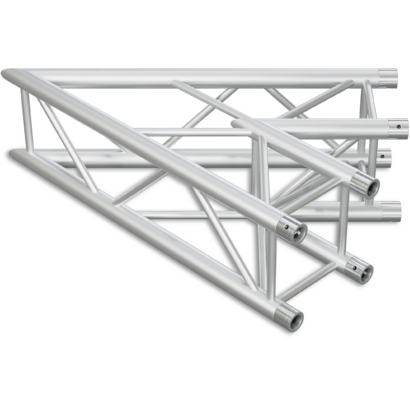

HQ30L2045
HQ30L2045
(Optional)
2-way corner for HQ30 Series, extrude tube 50x3mm, FCQ5 included, 45°

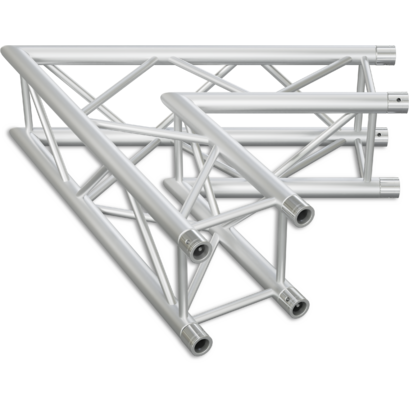

HQ30L2060
HQ30L2060
(Optional)
2-way corner for HQ30 Series, extrude tube 50x3mm, FCQ5 included, 60°

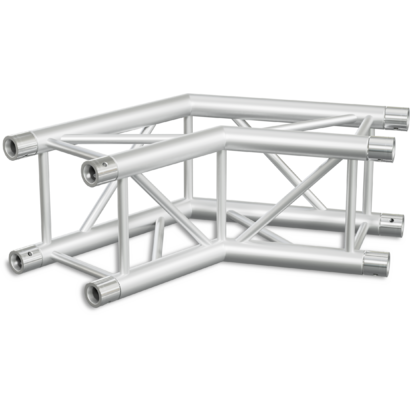

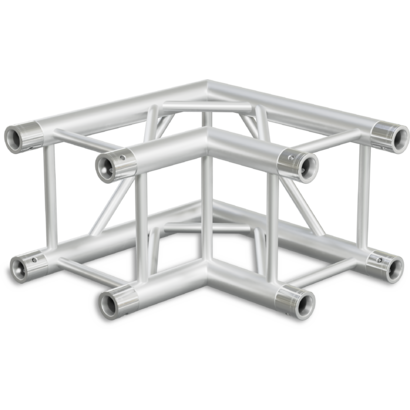

HQ30L2090
HQ30L2090
(Optional)
2-way corner for HQ30 Series, extrude tube 50x3mm, FCQ5 included, 90°

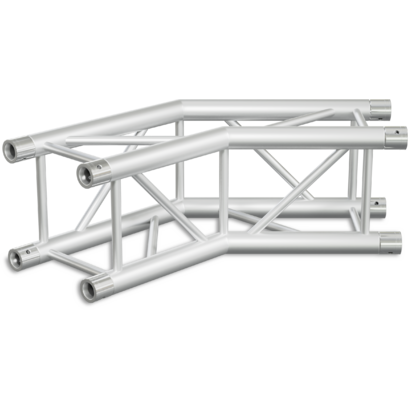

HQ30L2120
HQ30L2120
(Optional)
2-way corner for HQ30 Series, extrude tube 50x3mm, FCQ5 included, 120°
HQ30L2135
HQ30L2135
(Optional)
2-way corner for HQ30 Series, extrude tube 50x3mm, FCQ5 included, 135°

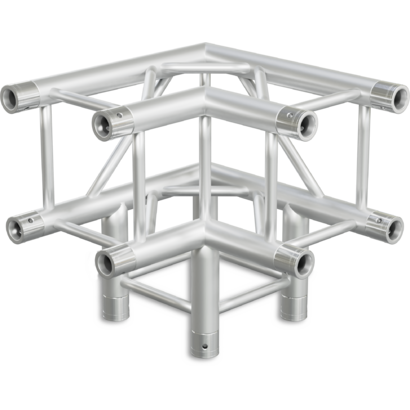

HQ30L3
HQ30L3
(Optional)
3-way L corner for HQ30 Series, extrude tube 50x3mm, 2x FCQ5 included

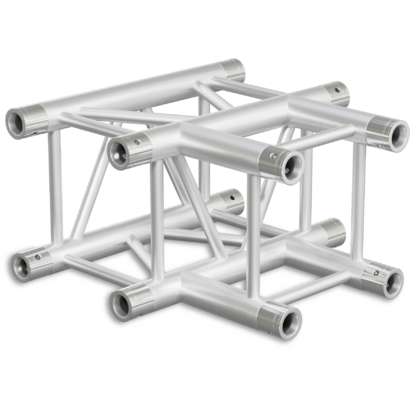

HQ30T3
HQ30T3
(Optional)
3-way T joint for HQ30 Series, extrude tube 50x3mm, 2x FCQ5 included

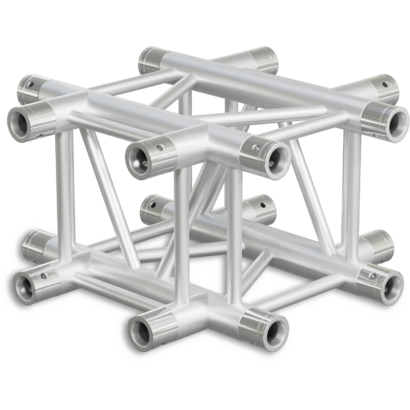

HQ30X4
HQ30X4
(Optional)
4-way X joint for HQ30 Series, extrude tube 50x3mm, 2x FCQ5 included

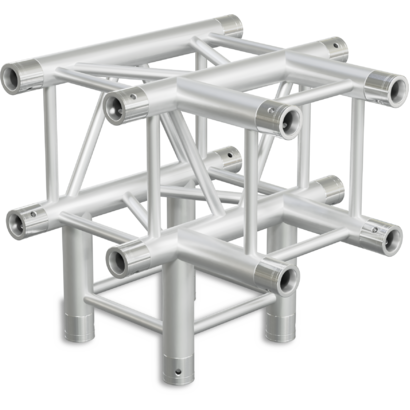

HQ30T4
HQ30T4
(Optional)
4-way T joint for HQ30 Series, extrude tube 50x3mm, 2x FCQ5 included

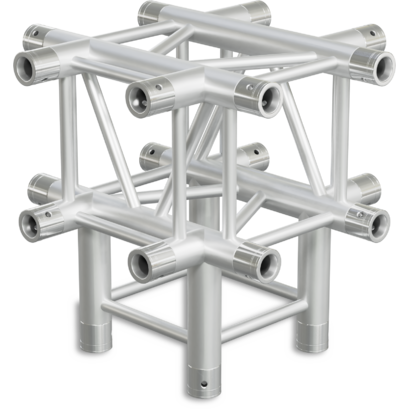

HQ30T5
HQ30T5
(Optional)
5-way T joint for HQ30 Series, extrude tube 50x3mm, 2x FCQ5 included

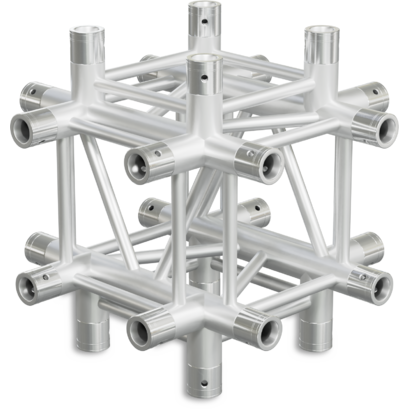

HQ30X6
HQ30X6
(Optional)
6-way X joint for HQ30 Series, extrude tube 50x3mm, 2x FCQ5 included

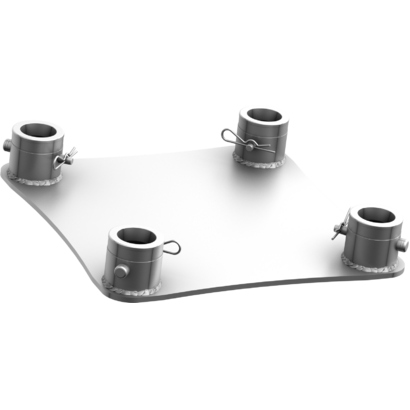

SQ30FP
SQ30FP
(Optional)
Aluminium ground base for square section trusses, SQ-HQ30,
