HQ40
ORDER CODE: HQ40
Share me

Immagine Principale
  • HQ40
  • HQ40
  • HQ40
  • HQ40
  • HQ40
  • Code Tube (mm) Diagonal (mm) W (mm) H (mm) D (mm) Weight (kg) Volume (m³) Color Avail.
    HQ40050 50x3 25x2 500 400 400 6,6 0,080 AL
    HQ40050B 50x3 25x2 500 400 400 6,6 0,080 BK
    HQ40100 50x3 25x2 1000 400 400 10,6 0,160 AL
    HQ40100B 50x3 25x2 1000 400 400 10,6 0,160 BK
    HQ40150 50x3 25x2 1500 400 400 13 0,240 AL
    HQ40150B 50x3 25x2 1500 400 400 13 0,240 BK
    HQ40200 50x3 25x2 2000 400 400 16,4 0,320 AL
    HQ40200B 50x3 25x2 2000 400 400 16,4 0,320 BK
    HQ40250 50x3 25x2 2500 400 400 19,3 0,400 AL
    HQ40250B 50x3 25x2 2500 400 400 19,3 0,400 BK
    HQ40300 50x3 25x2 3000 400 400 22,6 0,480 AL
    HQ40300B 50x3 25x2 3000 400 400 22,6 0,480 BK
    HQ40350 50x3 25x2 3500 400 400 26,3 0,560 AL
    HQ40350B 50x3 25x2 3500 400 400 26,3 0,560 BK
    HQ40400 50x3 25x2 4000 400 400 29,4 0,640 AL
    HQ40400B 50x3 25x2 4000 400 400 29,4 0,640 BK

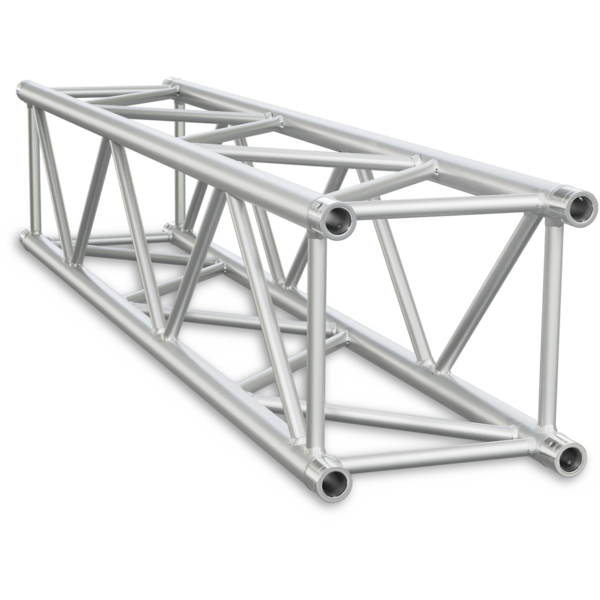

    Heavy square section aluminium truss with 40 cm sides.

    Features:
    Lengthwise: extruded tubes, Ø 50x3 mm, EN AW 6082 T6.
    Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
    Plate: conical quick-lock connectors.
    Fast connection kit FCQ5 included.

    Accessory Code
    Description
    include
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    optional

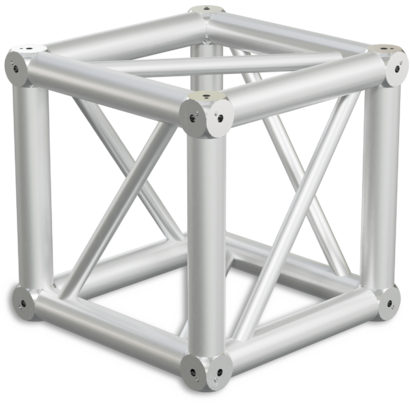

    6 way DADO module, HQ40 series compatible, 2x FCQ5K8 included
    optional

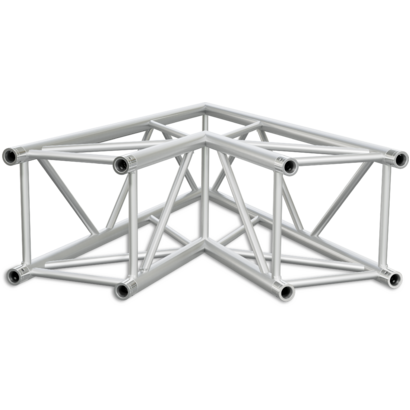

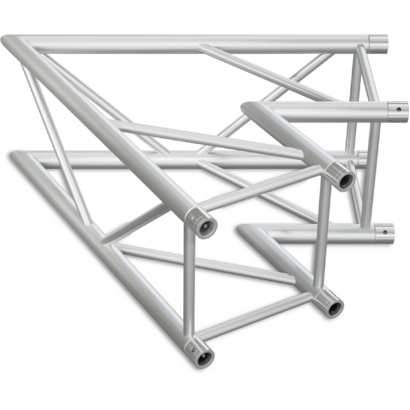

    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 45°
    optional
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 60°
    optional

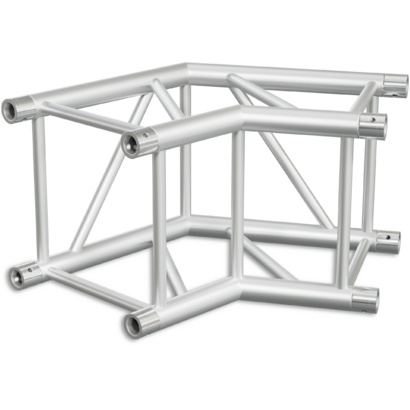

    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included
    optional

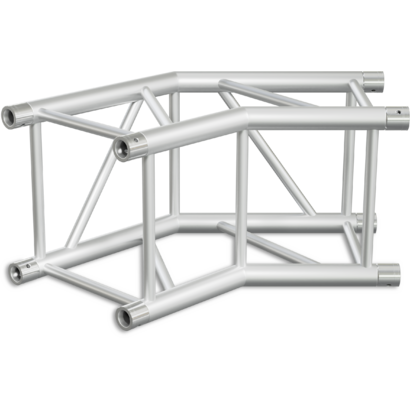

    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 120°
    optional
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 135°
    optional

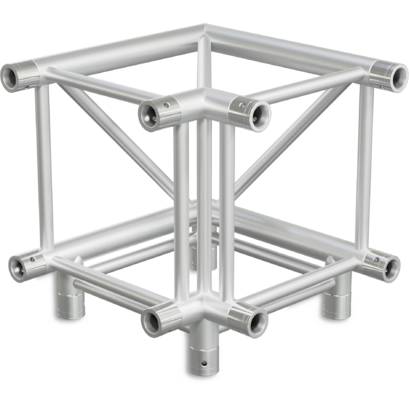

    3-way L corner for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    optional

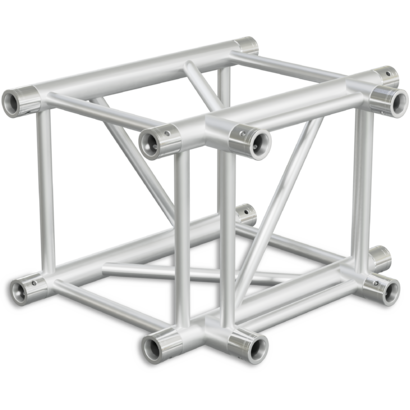

    3-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    optional
    4-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    optional

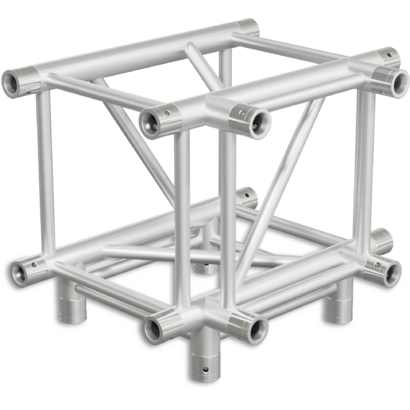

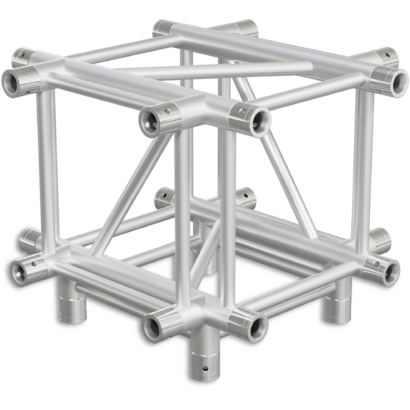

    5-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    optional

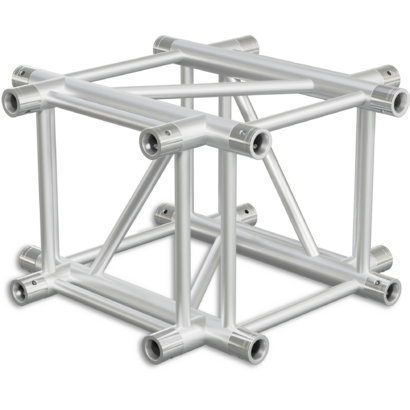

    4-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    optional

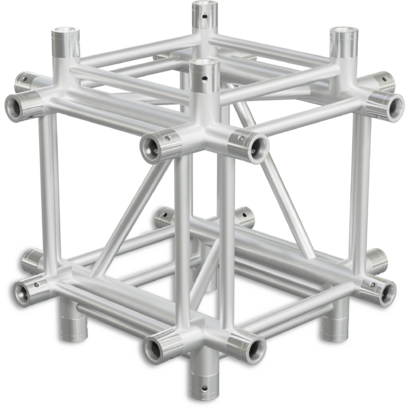

    6-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    optional

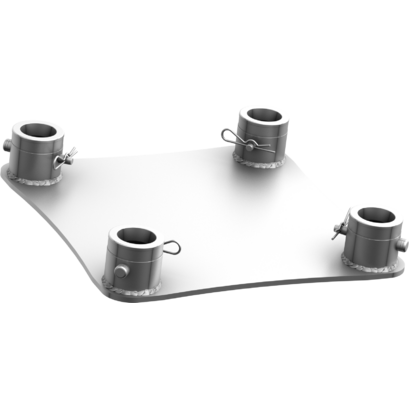

    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    optional
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    optional
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    optional
    Aluminium ground base for square section trusses, SQ-HQ40,
