HQ40
Share me

Immagine Principale
  • HQ40
  • HQ40
  • HQ40
  • HQ40
  • HQ40
  • HQ40
    Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Color Avail.
    HQ40050 50x3 25x2 50 40 40 5,1 0,080 AL
    HQ40050B 50x3 25x2 50 40 40 5,1 0,080 BK
    HQ40100 50x3 25x2 100 40 40 8,3 0,160 AL
    HQ40100B 50x3 25x2 100 40 40 8,3 0,160 BK
    HQ40150 50x3 25x2 150 40 40 12,1 0,240 AL
    HQ40150B 50x3 25x2 150 40 40 12,1 0,240 BK
    HQ40200 50x3 25x2 200 40 40 15,6 0,320 AL
    HQ40200B 50x3 25x2 200 40 40 15,6 0,320 BK
    HQ40250 50x3 25x2 250 40 40 19,1 0,400 AL
    HQ40250B 50x3 25x2 250 40 40 19,1 0,400 BK
    HQ40300 50x3 25x2 300 40 40 22 0,480 AL
    HQ40300B 50x3 25x2 300 40 40 22 0,480 BK
    HQ40350 50x3 25x2 350 40 40 25,1 0,560 AL
    HQ40350B 50x3 25x2 350 40 40 25,1 0,560 BK
    HQ40400 50x3 25x2 400 40 40 28,3 0,640 AL
    HQ40400B 50x3 25x2 400 40 40 28,3 0,640 BK
    HQ40450 50x3 25x2 450 40 40 32,6 0,720 AL
    HQ40450B 50x3 25x2 450 40 40 32,6 0,720 BK
    HQ40500 50x3 25x2 500 40 40 35,9 0,800 AL
    HQ40500B 50x3 25x2 500 40 40 35,9 0,800 BK

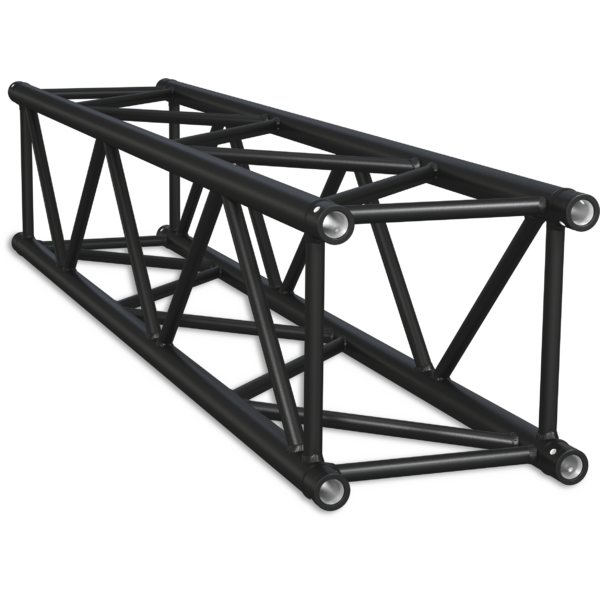

    Heavy square section aluminium truss with 40cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
    Diagonal: extruded tubes, Ø 25x2 mm 6082 T6
    Plate: conical quick-lock connectors
    Fast connection kit FCQ5 included.

    Product Code
    Accessory Code
    Description
    HQ40 (include)
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    ST40 (include)
    SF40 (include)
    HQ40C (include)
    SQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
    HQ40 (optional)
    6 way DADO module, HQ40 series compatible, 2x FCQ5K8 included
    HQ40 (optional)
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 45°
    HQ40 (optional)
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 60°
    HQ40 (optional)
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included
    HQ40 (optional)
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 120°
    HQ40 (optional)
    2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 135°
    HQ40 (optional)
    3-way L corner for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    HQ40 (optional)
    3-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    HQ40 (optional)
    4-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    HQ40 (optional)
    5-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    HQ40 (optional)
    4-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    HQ40 (optional)
    6-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
    HQ40 (optional)
    SF40 (optional)
    SQ30 (optional)
    SQ40 (optional)
    HQ30 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
    HQ40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    Universal circular floor plate for aluminium trusses, dimensions 650mm
    HQ40 (optional)
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
    HQ40 (optional)
    SQ40 (optional)
    Aluminium ground base for square section trusses, SQ-HQ40,
