Code |
Tube (mm) |
Diagonal (mm) |
W (mm) |
H (mm) |
D (mm) |
Weight (kg) |
Volume (m³) |
Color |
|
|
Avail. |
|
|
HQ40050 |
50x3 |
25x2 |
500 |
400 |
400 |
6,6 |
0,080 |
AL |
|
|
|
|
|
HQ40050B |
50x3 |
25x2 |
500 |
400 |
400 |
6,6 |
0,080 |
BK |
|
|
|
|
|
HQ40100 |
50x3 |
25x2 |
1000 |
400 |
400 |
10,6 |
0,160 |
AL |
|
|
|
|
|
HQ40100B |
50x3 |
25x2 |
1000 |
400 |
400 |
10,6 |
0,160 |
BK |
|
|
|
|
|
HQ40150 |
50x3 |
25x2 |
1500 |
400 |
400 |
13 |
0,240 |
AL |
|
|
|
|
|
HQ40150B |
50x3 |
25x2 |
1500 |
400 |
400 |
13 |
0,240 |
BK |
|
|
|
|
|
HQ40200 |
50x3 |
25x2 |
2000 |
400 |
400 |
16,4 |
0,320 |
AL |
|
|
|
|
|
HQ40200B |
50x3 |
25x2 |
2000 |
400 |
400 |
16,4 |
0,320 |
BK |
|
|
|
|
|
HQ40250 |
50x3 |
25x2 |
2500 |
400 |
400 |
19,3 |
0,400 |
AL |
|
|
|
|
|
HQ40250B |
50x3 |
25x2 |
2500 |
400 |
400 |
19,3 |
0,400 |
BK |
|
|
|
|
|
HQ40300 |
50x3 |
25x2 |
3000 |
400 |
400 |
22,6 |
0,480 |
AL |
|
|
|
|
|
HQ40300B |
50x3 |
25x2 |
3000 |
400 |
400 |
22,6 |
0,480 |
BK |
|
|
|
|
|
HQ40350 |
50x3 |
25x2 |
3500 |
400 |
400 |
26,3 |
0,560 |
AL |
|
|
|
|
|
HQ40350B |
50x3 |
25x2 |
3500 |
400 |
400 |
26,3 |
0,560 |
BK |
|
|
|
|
|
HQ40400 |
50x3 |
25x2 |
4000 |
400 |
400 |
29,4 |
0,640 |
AL |
|
|
|
|
|
HQ40400B |
50x3 |
25x2 |
4000 |
400 |
400 |
29,4 |
0,640 |
BK |
|
|
|
|

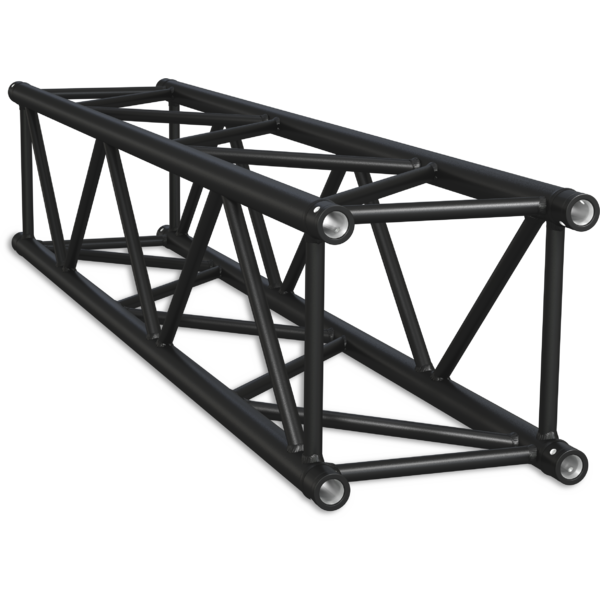

Heavy square section aluminium truss with 40 cm sides.
Features:Lengthwise: extruded tubes, Ø 50x3 mm, EN AW 6082 T6.
Diagonal: extruded tubes, Ø 25x2 mm, EN AW 6082 T6.
Plate: conical quick-lock connectors.
Fast connection kit FCQ5 included.
Accessory Code
Description
Quick connection, 4 spigots, 8 pins, 8 safety spring, SQ-HQ30/40
6 way DADO module, HQ40 series compatible, 2x FCQ5K8 included
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 45°
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 60°
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 120°
2-way corner for HQ40 Series, extrude tube 50x3mm, FCQ5 included, 135°
3-way L corner for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
3-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
4-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
5-way T joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
4-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
6-way X joint for HQ40 Series, extrude tube 50x3mm, 2x FCQ5 included
Universal aluminium floor plate for square section trusses, dim. (WxH) 800x800mm
Universal circular floor plate for aluminium trusses, dimensions 650mm
Universal aluminium floor plate for square section trusses, dim. (WxH) 500x500mm
Aluminium ground base for square section trusses, SQ-HQ40,
