HQ40 » Vedi varianti
Condividimi
Immagine Principale
  • HQ40
  • HQ40
  • HQ40
  • HQ40
  • HQ40
  • Codice Prodotto Codice Accessorio Descrizione Catalogues
    HQ40 (include)
    Compatibile con
    HQ30L3 (include)
    HQ30L2 (include)
    SQ40X6 (include)
    SQ40T5 (include)
    SQ40T4 (include)
    SQ40X4 (include)
    SQ40T3 (include)
    SQ40L3 (include)
    HQ30T3 (include)
    HQ30X4 (include)
    SQ30T4 (include)
    SQ30X4 (include)
    SQ30T3 (include)
    SQ30L3 (include)
    SQ30L2 (include)
    HQ30X6 (include)
    HQ30T5 (include)
    HQ30T4 (include)
    SQ40L2 (include)
    HQ40X6 (include)
    SQ40 (include)
    HQ30 (include)
    SQ30 (include)
    ST40 (include)
    SF40 (include)
    HQ40C (include)
    SQ40C (include)
    HQ30C (include)
    SQ30C (include)
    HQ40T5 (include)
    HQ40T4 (include)
    HQ40X4 (include)
    SQ30T5 (include)
    HQ40T3 (include)
    HQ40L3 (include)
    HQ40L2 (include)
    FCQ5
    FCQ5
    Kit Fast-Connection, 4 spigot, 8 spine, 8 coppiglie, SQ-HQ30/40 #0
    HQ40 (optional)
    HQ40K8
    HQ40K8
    Raccordo configurabile DADO 6 vie, compatibile HQ40, 2x FCQ5K8 inclusi #0
    HQ40 (optional)
    HQ40L2045
    HQ40L2045
    Angolo 2vie compatibile truss HQ40, tubo corr. 50x3mm, FCQ5 incluso, 45° #0
    HQ40 (optional)
    HQ40L2060
    HQ40L2060
    Angolo 2vie compatibile truss HQ40, tubo corr. 50x3mm, FCQ5 incluso, 60° #0
    HQ40 (optional)
    HQ40L2
    HQ40L2 »
    Angolo 2vie compatibile truss HQ40, tubo corr. 50x3mm, FCQ5 incluso #0
    HQ40 (optional)
    HQ40L2120
    HQ40L2120
    Angolo 2vie compatibile truss HQ40, tubo corr. 50x3mm, FCQ5 incluso, 120° #0
    HQ40 (optional)
    HQ40L2135
    HQ40L2135
    Angolo 2vie compatibile truss HQ40, tubo corr. 50x3mm, FCQ5 incluso, 135° #0
    HQ40 (optional)
    HQ40L3
    HQ40L3
    Angolo L 3vie compatibile truss HQ40, tubo c. 50x3mm, 2x FCQ5 incluso #0
    HQ40 (optional)
    HQ40T3
    HQ40T3
    Raccordo T 3vie compatibile truss HQ40, tubo c. 50x3mm, 2x FCQ5 incluso #0
    HQ40 (optional)
    HQ40T4
    HQ40T4
    Raccordo T 4vie compatibile truss HQ40, tubo c. 50x3mm, 2x FCQ5 incluso #0
    HQ40 (optional)
    HQ40T5
    HQ40T5
    Raccordo T 5vie compatibile truss HQ40, tubo c. 50x3mm, 2x FCQ5 incluso #0
    HQ40 (optional)
    HQ40X4
    HQ40X4
    Raccordo X 4vie compatibile truss HQ40, tubo c. 50x3mm, 2x FCQ5 incluso #0
    HQ40 (optional)
    HQ40X6
    HQ40X6
    Raccordo X 6vie compatibile truss HQ40, tubo c. 50x3mm, 2x FCQ5 incluso #0
    HQ40 (optional)
    Compatibile con
    SF40 (optional)
    SQ30 (optional)
    SQ40 (optional)
    HQ30 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    FPU8080
    FPU8080
    Base da terra universale per tralicci in alluminio, dimensioni (LxA) 800x800mm #0
    HQ40 (optional)
    Compatibile con
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    FPU65R
    FPU65R
    Base da terra universale circolare per tralicci in alluminio, dimensioni 650mm #0
    HQ40 (optional)
    Compatibile con
    SF40 (optional)
    SQ30 (optional)
    HQ30 (optional)
    SQ40 (optional)
    SF30 (optional)
    ST30 (optional)
    ST40 (optional)
    FPU5050
    FPU5050
    Base da terra universale per tralicci in alluminio, dimensioni (LxA) 500x500mm #0
    HQ40 (optional)
    Compatibile con
    SQ40 (optional)
    SQ40FP
    SQ40FP
    Base da terra in alluminio per truss a sez. quadrata, SQ-HQ40, #0

    Firmware

    Ottieni il massimo aggiornando il tuo prodotto.
    Assicurati di avere sempre il tuo prodotto aggiornato alle più recenti versioni software / hardware per ottenere il miglior risultato dalle tue tecnologie e dal tuo show.
    Raccogliendo feedback dagli utenti, aggiungiamo costantemente nuove funzionalità, migliorando prestazioni tecniche e semplicità d'uso.
    Contatta con il nostro team per maggiori informazioni o assistenza.

    Drawings

    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 2DDownload
    CAD 3DDownload
    CAD 3DDownload
    CAD 3DDownload
    CAD 3DDownload
    CAD 3DDownload
    CAD 3DDownload
    CAD 3DDownload

    Certificates & Declarations

    Richiesta Certificazioni HQ40
    TUV Rheinland of North America
    CE

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    User Manuals

    HQ40
    Code Disp. Tubo (mm) Diagonale (mm) L (cm) A (cm) P (cm) Peso (kg) Volume (mc) Colore
    HQ40050 50x3 20x2 50 40 40 5,1 0,080 AL
    HQ40050B 50x3 20x2 50 40 40 5,1 0,080 BK
    HQ40100 50x3 20x2 100 40 40 8,3 0,160 AL
    HQ40100B 50x3 20x2 100 40 40 8,3 0,160 BK
    HQ40150 50x3 20x2 150 40 40 12,1 0,240 AL
    HQ40150B 50x3 20x2 150 40 40 12,1 0,240 BK
    HQ40200 50x3 20x2 200 40 40 15,6 0,320 AL
    HQ40200B 50x3 20x2 200 40 40 15,6 0,320 BK
    HQ40250 50x3 20x2 250 40 40 19,1 0,400 AL
    HQ40250B 50x3 20x2 250 40 40 19,1 0,400 BK
    HQ40300 50x3 20x2 300 40 40 22 0,480 AL
    HQ40300B 50x3 20x2 300 40 40 22 0,480 BK
    HQ40350 50x3 20x2 350 40 40 25,1 0,560 AL
    HQ40350B 50x3 20x2 350 40 40 25,1 0,560 BK
    HQ40400 50x3 20x2 400 40 40 28,3 0,640 AL
    HQ40400B 50x3 20x2 400 40 40 28,3 0,640 BK
    HQ40450 50x3 20x2 450 40 40 32,6 0,720 AL
    HQ40450B 50x3 20x2 450 40 40 32,6 0,720 BK
    HQ40500 50x3 20x2 500 40 40 35,9 0,800 AL
    HQ40500B 50x3 20x2 500 40 40 35,9 0,800 BK

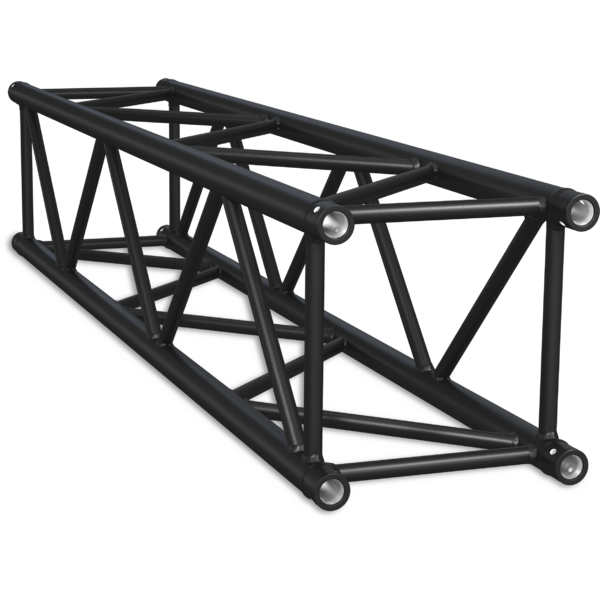

    Traliccio in alluminio HEAVY a sezione quadrata con lato da 40 cm.


    Features:
    Tubi correnti: tubo estruso Ø 50x3 mm 6082 T6.
    Diagonali: tubo estruso Ø 25x2 mm 6082 T6.
    Terminali: Connessioni Quick-Lock con coniche.
    kit Fast Connection FCQ5 incluso.
