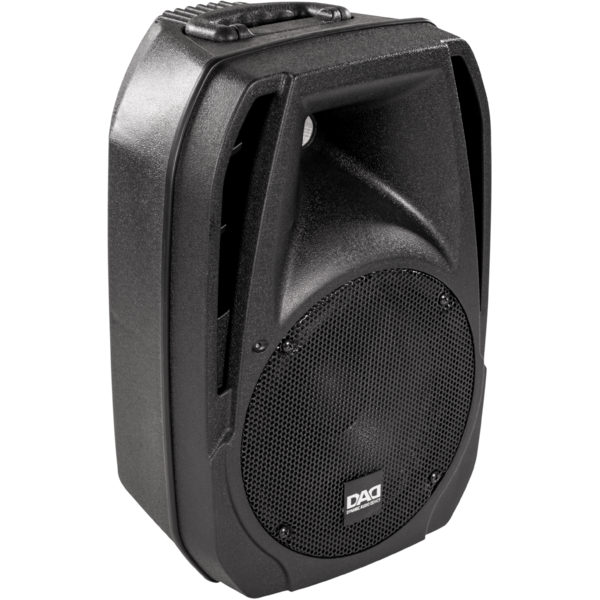

  • 2-way passive loudspeakers, 120W AES,120dB SPL

    Features:
    Low frequency: 8 '' woofer/1.5''v.c.
    High frequency: 1 '' driver/1.4''v.c.
    Frequency response: 80-20000 Hz (±3dB)
    Cabinet designed for stage-monitor applications
    Polypropylene box equipped with a handle in the upper side
    Reproduction of voice and music for live and recorded performances
    For portable PA systems, mobile DJ sets and voice/multimedia applications

    LOUDSPEAKER
    • System type:
      passive 2 way
    COMPONENTS
    • Low frequency:
      8
      ''
      woofer/1.5''v.c.
    • High frequency:
      1
      ''
      driver/1.4''v.c.
    FEATURES
    • AES/program power:
      120/240
      W
    • SPL max:
      120
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      93
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      114/120
      dB
      @1m (free field)
    • Frequency response:
      80-20000
      Hz
      (±3dB)
    • Coverage angle HxV:
      90x45
      °
    • Cross over frequency:
      3300
      Hz
    • Protection:
      H.F. signal compression
    • Recommended amplifier up to:
      240
      W
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      4
      mm
      polypropilene
    • Sospension system:
      35 mm mounting pole
    • Angle:
      45
      °
      monitor applications
    • Handles:
      1 top
    PHYSICAL
    • Dimensions (WxHxD):
      260x395x210
      mm
    • Weight:
      5
      kg
    Product Code
    Accessory Code
    Description
    IKOS8P (optional)
    IKOS8A (optional)
    Fabric protection for IKOS8/IKOS8A
    IKOS8P (optional)
    LIVE8 (optional)
    EVENT10 (optional)
    EVENT8 (optional)
    EVENT10A (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
    IKOS8P (optional)
    LIVEPACK1500D (optional)
    MS118SW (optional)
    MS18SW (optional)
    LIVE18SA (optional)
    LIVE18S (optional)
    LIVE15S (optional)
    LIVE12SA (optional)
    LIVE15SA (optional)
    IKOS12P (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS10A (optional)
    IKOS8A (optional)
    IKOS15P (optional)
    Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
    IKOS8P (optional)
    IKOS8A (optional)
    IKOS10A (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    IKOS10P (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    Adjustable speaker pole, 35mm, H.90-140cm, 40kg max
