    Code Housing Avail.
    JETSPOT3BK Black

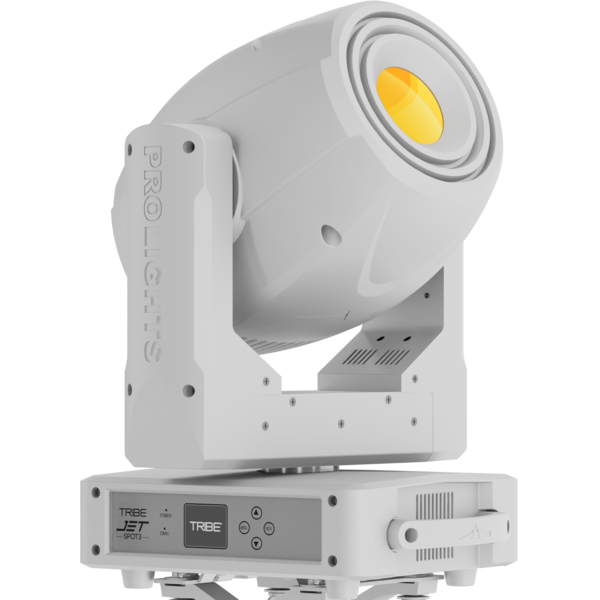

    JETSPOT3WH White

    Jet Spot3 is a LED spot luminaire designed to deliver a stunning light level for its size and price. Ideal both for installation and for rental, the Jet Spot3 focuses on maximising the light output from its LED source to deliver a crisp, even beam from a compact size.

    Features:
    Ultra-efficient 240W 7.000 K White LED source
    Fixed 20° beam angle
    Extensive effects including 2 colour wheels, rotating gobo wheel, static gobo wheel, prism, linear frost, iris and focus

    LIGHT SOURCE
    • Source:
      240
      W
      high-power white LED
    • CCT:
      7.500
      K
    • Luminous flux:
      12'459
      lm
    • Lux:
      13'389
      lx
      @3 m
    • Lux:
      1'205
      lx
      @10 m
    • CRI:
      78
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Beam angle:
      20
      °
    • Lens diameter:
      74
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour wheel:
      7
      colour filters on two colour wheels
    DYNAMIC EFFECTS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 23 mm - thickness: 0,3 mm
    • Fixed gobos:
      8
      fixed gobos + open, interchangeable
    • Gobo size:
      outer: 29,6 mm - image: 23 mm - thickness: 0,5 mm
    • Circular prism:
      3
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    • Iris:
      5 ~ 100
      %
      motorised iris
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      260
      °
    • Pan/Tilt resolution:
      bit
      16 bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with hi-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      17 / 19
      channel
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      0 ~ 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      316
      W
    • Max power consumption (at 120 V):
      322
      W
    • Output (at 230 V):
      12
      units on a single power line
    • Output (at 120 V):
      6
      units on a single power line
    PHYSICAL
    • Cooling:
      active, silent operation
    • Sospension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      355x500x257
      mm
    • Weight:
      17,3
      kg
    CODICE_PRODOTTO
    Accessory Code
    Description
    JETSPOT3 (optional)
    Flight case for 2 pcs of JETSPOT3
    JETSPOT3 (optional)
    SOLAR48Q (include)
    RA2000PROFILE (include)
    LUMIPIX15IP (include)
    SOLAR27Q (include)
    ARIA700SPOT (optional)
    ARIA700PROFILE (optional)
    LUMIPIX12QTOUR (optional)
    RA3000PROFILE (include)
    Quick-Lock omega bracket
