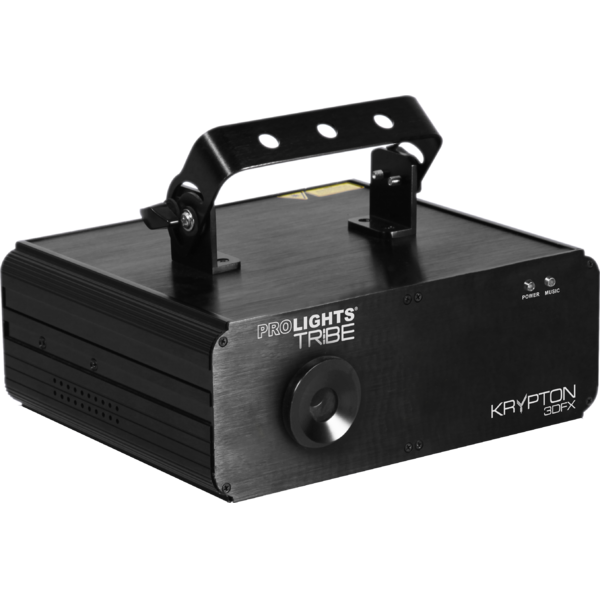

KRYPTON3DFX
ORDER CODE: KRYPTON3DFX
Share me

Immagine Principale
  • KRYPTON3DFX
  • KRYPTON3DFX
  • KRYPTON3DFX is a professional graphics laser projector designed to create amazing laser shows and 3D effects in large venues. RGB additive colour mixing allows the generation of 7 colours, with a sharp bright output, relying on total 480 mW power (100 mW red + 80 mW green + 300 mW blue) projecting images, sceneries and visible 3D beams up to a long distance. KRYPTON3DFX can be controlled through ILDA-compatible software, DMX protocol, sound show and pre-programmed auto shows.

    Features:
    Light source: Diode laser 100 mW 638 nm red + 80 mW 532 nm green + 300 mW 450 nm blue
    DMX and ILDA protocols compatible with hundreds of animations and multi-ray effects
    Visual effects: reproduction of 3D animations, texts, logos, beams and waves
    Safety: compliant with EN60825 - 1:2007 standards, manual key-switch and input for safety remote-interlock

    LIGHT SOURCE
    • Light source:
      diode laser 100 mW 638 nm red + 80 mW 532 nm green + 300 mW 450 nm blue
    • Scan frequency:
      20
      KHz
    • Laser radiation class:
      3R
    COLOUR SYSTEM
    • Colour mixing:
      7 colours (red, green, blue, yellow, cyan, magenta, white)
    DYNAMIC EFFECTS
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX, ILDA
    • DMX channels:
      3 DMX modes up to 19
      channel
    • Display:
      LCD display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRICAL
    • Mains power supply:
      AC 100 - 240 V, 50 - 60 Hz
    • Max power consumption:
      50
      W
    PHYSICAL
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      ILDA input, ILDA trough, DMX 3p IN/OUT
    • Power connection:
      IEC 10 A IN
    • Dimensions (WxHxD):
      278x290x110
      mm
    • Weight:
      4,2
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE
    BOX CONTENT
    • 1 x KRYPTON3DFX
    • 1 x 1,5 meters SCHUKO - IEC power cable
    • 1 x key for switch on/off
    • 1 x SD card
    • User Manual
