KRYPTON40G
ORDER CODE: KRYPTON40G
Share me

Immagine Principale
  • KRYPTON40G
  • KRYPTON40G
  • KRYPTON40G
  • KRYPTON40G
  • KRYPTON40G
  • KRYPTON40G

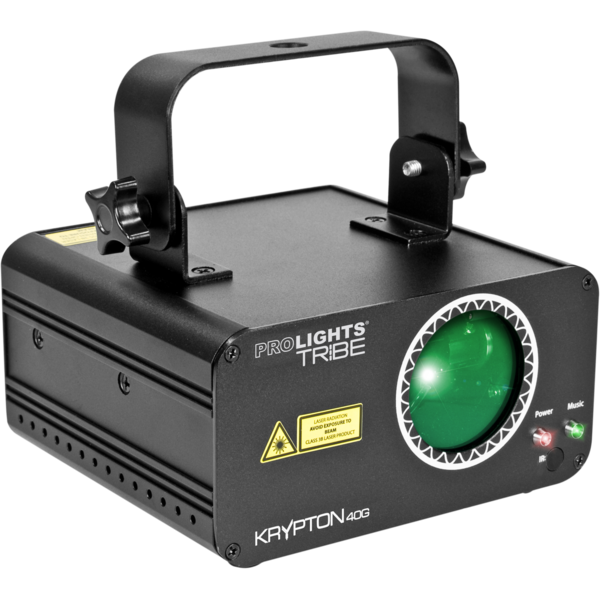

    • Compact laser effect with a green source for multi-beam laser projection, motion effects and shapes. KRYPTON40G is fully linkable with the whole KRYPTON laser series to create synchronised and full-spectrum laser shows within a limited budget. All models are equipped with highly-efficient PL450B laser diodes by OSRAM to achieve the best performance when compared with lasers of the same category.

    Features:
    Light source: OSRAM PL450B high-efficiency laser diode 40 mW 532 nm green
    KRYPTONIRC remote Infrared controller included
    Safety: compliant with EN60825 - 1:2007 standards, manual key-switch and input for safety remote-interlock

    LIGHT SOURCE
    • Light source:
      OSRAM PL450B laser diode 40 mW 532 nm green
    • Laser radiation class:
      3B
    DYNAMIC EFFECTS
    • Auto mode:
      built-in programs with execution speed adjustment
    • Sound mode:
      music activation through internal microphone and sensitivity control
    BODY
    • Body colour:
      black
    CONTROL
    • Control units:
      KRYPTONIRC remote infra-red controller included
    • Protocols:
      DMX
    • DMX channels:
      8 / 10
      channel
    • Display:
      3 chars display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRICAL
    • Max power consumption:
      12
      W
    PHYSICAL
    • Suspension and fixing:
      bracket for hanging and positioning

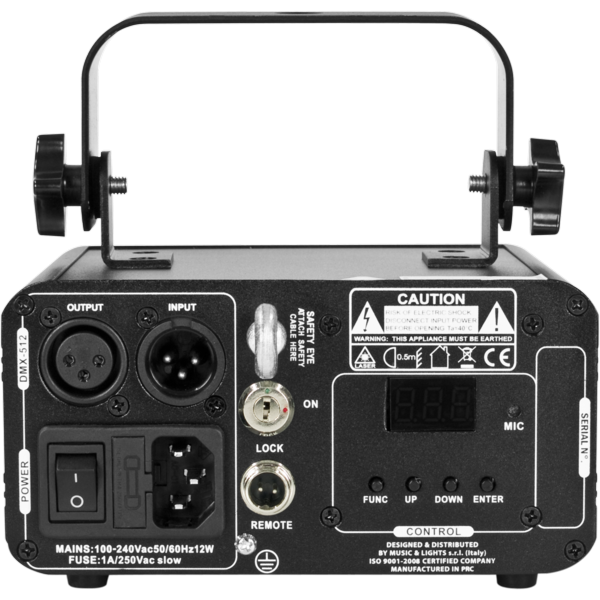

    • Signal connection:
      XLR 3p IN/OUT
    • Power connection:
      IEC 10 A IN
    • Dimensions (WxHxD):
      145x160x80
      mm
    • Weight:
      1,3
      kg
    • Weight battery:
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA
    BOX CONTENT
    • 1 x KRYPTON40G
    • 1 x 1,5 meters BARE END - IEC power cable
    • 1 x key for switch on/off
    • 1 x KRYPTONIRC
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    KRYPTON40G (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    KRYPTON40G (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    KRYPTON40G (optional)
    {ProdottiDaAccessorio}
    VDE15SEUVDE15SEU
    Power cable VDE socket, Shuko plug
    KRYPTON40G (optional)
    {ProdottiDaAccessorio}
    TOUR53413L03TOUR53413L03
    Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    Krypton40g_USER_MANUAL_ITEN.pdf 3MB

    DMX chart & personalities

    File name File size Download

    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    krypton40g_8ch.fdf Download
    krypton40g_10ch.fdf Download
    krypton40g_8ch.ssl Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool:
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    0.1 STABLE 23/07/2018
