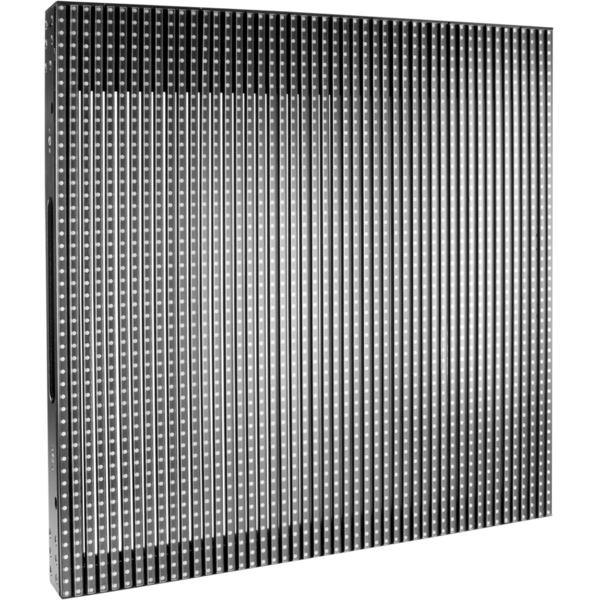

  • LEDMATRIX12 is a LED module to create ledscreens with 12,00 mm pixel pitch, ideal for video screening, pictures and backgrounds for medium viewing distances from ledwall surface.
    The architecture of LEDMATRIX12 is conceived with 600x600 mm module size, featuring 2304 SMD FullColor LEDs for an impressive light output (up to 3500NIT).
    The instantaneous colour calibration system, through the control unit, features rich and vibrant video images with superb colour depth and uniformity, providing vivid and natural true colours.
    IP65 protection rate on front side makes LEDMATRIX12 suitable also for temporary outdoor application
    With a transparency factor of 14%, LEDMATRIX12 allows the light to go through the screen surface, opening up a wide range of creative design possibilities, combining video screening with backlights through washlight and beam projectors, even for 3D projections.
    The main structure is designed in aluminium, making LEDMATRIX12 extremely lightweight (only 25,00 kg/m2), allowing a wide flexibility in configuration, also in hanging applications, with no limits of weight.

    • In arenas or sport stadiums with large audiences
    • In concerts and live events, where heavy large-size screen would overload the supporting structure
    • Wide-canvas dynamic backdrops for theatres and TV studios combined with lighting effects
    • Large trade-show booths with creative video imaging
    • In theme parks or public events

    Mechanical architecture
    • Module dimensions (WxHxD): 600x600x60 mm
    • Module weight: 9.000 g
    • Weight per square meter: 25,00 kg
    • LED housing bar in aluminium
    • Transparency rate: 14%
    • Main structure in steel
    • Mechanical finishing: black
    • Cooling: natural airflow
    • Working position: every orientation
    • Vertical hanging system: built-in aliscaf clamp support

    Electrical features
    • Power supply: AC 110/230V 50/60Hz
    • Power IN connections: Neutrik Powercon
    • Max power consumption (module): 200W
    • Average power consumption (module): 160W
    • Max power consumption (per square meter): 555W
    • Power output: Max 10 moduli
    • MTBF: > 1.000 h
    • Working temperature: -10° / 50°
    • Max ambience humidity: 10% - 90%

    Video features
    • LED source: high-power SMD FullColor
    • Module resolution: 48x48 pixel, 2304 total pixel
    • Pixel pitch: 12,00mm
    • LED density: 6.400 LED/sqm
    • Luminous flux: 3.500 cd/sqm (NIT)
    • LED life span: >50.000h
    • Colours: >68,7 billions through RGB mixing
    • Grayscale: 12bit
    • Refresh rate: >300Hz
    • Colour calibration through PC software
    • Maximum video IN signal resolution: 1024x768 pixel
    • Viewing angle: 140° horizontal, 140° vertical
    • Dead pixel ratio: <0,002

    Control system
    • Dedicated interface (Sender box) for video signal distribution and screen configuration
    • Data IN sender box: USB connector
    • Data IN module: RJ45 connectors
    • Connection between screen and sender box: USB cable
    • Connection between sender box and videowall: CAT5 data cable + Ethercon Neutrik connectors
    Product Code
    Accessory Code
    LEDMATRIX12 (optional)
    *Video processor for LED Display, DVI input, 2xRJ45 output, LINSN sender
