LEDSTRIP61
Share me

Immagine Principale
  • LEDSTRIP61
  • LEDSTRIP61
  • LEDSTRIP61
  • LEDSTRIP61
  • LEDSTRIP61
    Code Color synthesis Avail.
    LEDSTRIP611 RGB
    LEDSTRIP612 WW 3200K
    LEDSTRIP613 CW 5600K
    LEDSTRIP614 Amber 2800K
    LEDSTRIP615 Blu
    LEDSTRIP616 Green
    LEDSTRIP617 Red

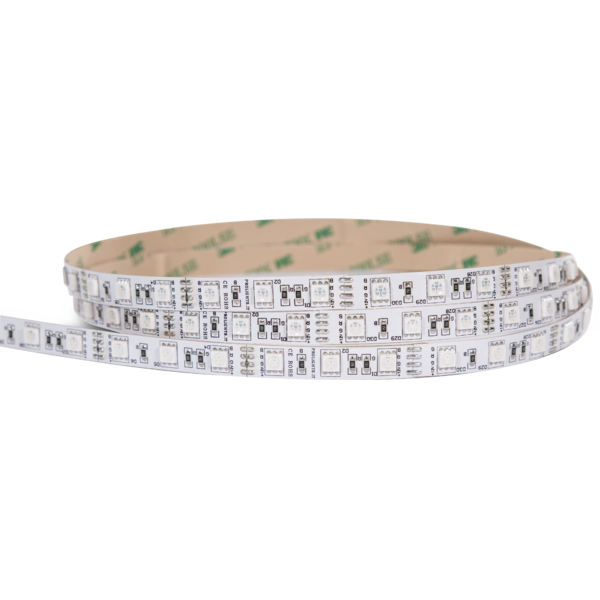

    Flexible LED strip based on SMD5050 technology, conceived as dynamic effect or colour changer for indoor applications



    Features:
    Light source:
    LED source: SMD5050
    LED density: 60 LEDs/m
    LED population: 300 LEDs
    LED average lifespan: >50000h
    Applications:
    Background lighting for walls, shop windows and in various environments such as discos, clubs or showcases
    Behind translucent plexiglass panels to create slowly changing coloured surfaces or ceilings
    Indoor architectural lightings such as stairways, archways and bridges
    Fully flexible allowing manipulation to any curve or shape whilst remaining durable
    Structure:
    IP rating: 20
    PCB circuit colour: white
    Dimensions: 5000 x 10 mm
    Quick and easy mounting through 3M sticker on reverse
    Control and power supply:
    Remote mode: through LSWC controller (optional)
    DMX - 3channels mode: through LSDMX interface (optional)
    DC12V power supply through LSPW series  (optional)
    Easy application and wiring, LEDSTRIP can easily be cut to size according to user requirements without damaging the rest of strip
    Power output allows for more LEDSTRIP to be linked in a chain
    Power consumption: 16W/m, 80W (5 m)

    Product Code
    Accessory Code
    Description
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Power supply unit DC12V for LEDSTRIP series, 75W
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Power supply unit DC12V for LEDSTRIP series, 120W
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Power supply unit DC12V for LEDSTRIP series, 350W
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP4631 (optional)
    3ch DMX coder for LEDSTRIP series, XLR/RJ45 connections, 4A/ch (144W) output
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Wireless controller for LEDSTRIP seri, color, auto programs, speed, 4A/ch output
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    WiFi control interface for RGB LEDSTRIP, out 4A/144W
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    IR remote controller for LEDSTRIP series, 24 buttons, 12V, 2A/ch out
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Wired controller for LEDSTRIP series, 8 buttons, 12V, 4A/ch output
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Signal amplifier for RGB LEDSTRIP, 4A/ch out
    LEDSTRIP61 (optional)
    LEDSTRIP4631 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    Touch-sensitive control interface for RGB LEDSTRIP, out 4A/144W
    LEDSTRIP61 (optional)
    LEDSTRIP4621 (optional)
    LEDSTRIP4611 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP342 (optional)
    LEDSTRIP341 (optional)
    LEDSTRIP4631 (optional)
    Touch-sensitive control interface for mono-color LEDSTRIP, out 4A/144W
