LF5T
ORDER CODE: LF5T
Share me

Immagine Principale
  • LF5T
  • LF5T
  • LF5T
  • LF5T
  • LF5T
  • LF5T
  • Code Dimensions (mm) Finish Weight (kg) Avail.
    LF5T2145AL 220x460 Aluminium 0,88
    LF5T2145BK 220x460 Black 0,88
    LF5T4645AL 470x460 Aluminium 1,17
    LF5T4645BK 470x460 Black 1,17

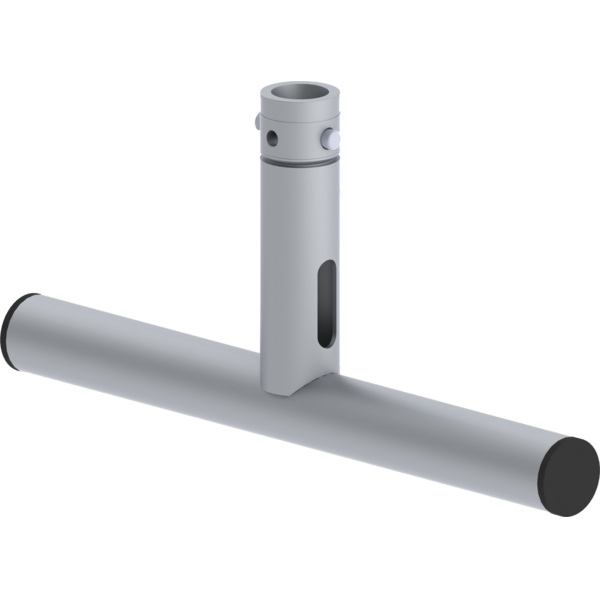

    1-way T joint for LITEFRAME series.

    Features:
    Extruded tubes: Ø 50 mm.
    Plate: conical quick-lock connectors.
    2 pin with self-locking nuts included.
    Material: aluminium 6082-T6.
    SWL (Safe working load): 100 kg.
    Available finish: aluminium, black.
    FCPLN safety pin included.

    ITEMS REF.
    Accessory Code
    Description
    LF5T (optional)
    SU30 (include)
    SU30L2 (include)
    SU30T3 (include)
    LF5X (optional)
    LF5P (optional)
    Quick connection, 1 spigot, 2 pins, 2 safety spring, SU30
    LF5T (optional)
    LF5H (optional)
    LF5X (optional)
    LF5P (optional)
    Spigot for POWERTRUSS series fast connection kit
    LF5T (optional)
    LF5H (optional)
    LF5X (optional)
    LF5P (optional)
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black
    LF5T (optional)
    LF5H (optional)
    LF5X (optional)
    LF5P (optional)
    Slim aluminum clamp, 200kg loading, 48-51mm tubes,with half-spigot, Black
    LF5T (include)
    LF5X (include)
    LF5P (include)
    LF5H (include)
    Conical pin fast connection kit with locking nut for LF5 series

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Lf5t2145bk_CAD_2D.dwgDownload
    Lf5t4645bk_CAD_2D.dwgDownload
    Lf5t2145bk_CAD_3D.dwgDownload
    Lf5t4645bk_CAD_3D.dwgDownload
    Lf5t4645bk_TECHNICAL_DRAWING_2D.pdfDownload
    Lf5t2145bk_TECHNICAL_DRAWING.pdfDownload
